APC Easy Rack PDU Basic 0U 1 Phase 3.7KW
£273.99
- £273.99 ex VAT

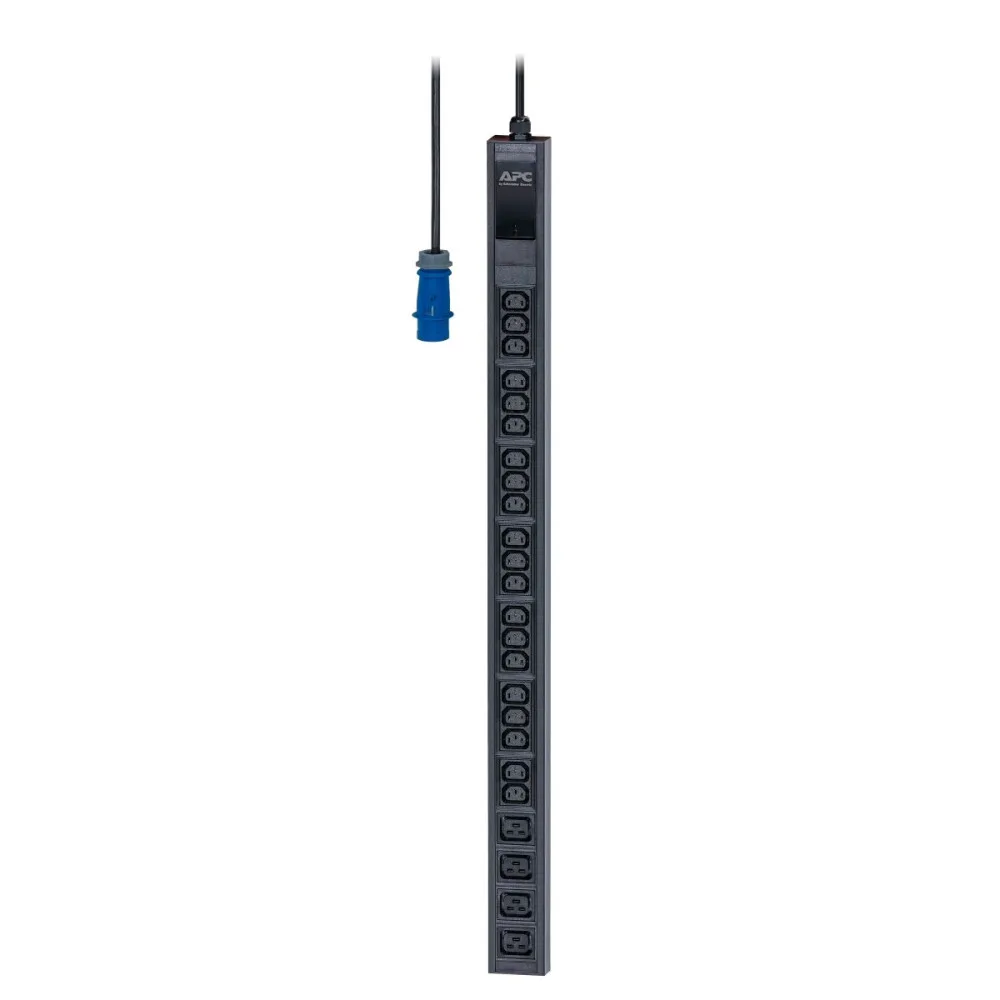

APC Easy Basic Rack PDU EPDU1116B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is Vertical rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. EPDU1116B has IEC 309 16A 2P+E type inlet, Twenty IEC C13 and four IEC C19 type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. Vertical mounting capabilities allow users to mount the units in a rack or enclosure without expending valuable rack space The packaging includes installation guide, toolless mounting kit and mounting brackets for quick and easy mounting in the rear of the enclosure. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip. Saves time and money during installation by using one branch whip and standard connections.
Specifications
| Total carbon footprint (kg of CO2e) | 55.85 |
| Housing material | Aluminium |
| Rack capacity | 0U |
| PDU types | Basic |
| Cable length | 3 m |
| Product colour | Black |
| Type | Single-phase |
| Mounting | Vertical |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 9000 m |
| On/off switch | No |
| Manual | Yes |
| AC outlets quantity | 24 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | IEC 60309 |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Maximum power | 3680 W |
| Nominal input voltage | 200/208/230 V |
| Nominal output voltage | 230 V |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Width | 62 mm |
| Depth | 44 mm |
| Height | 902 mm |
| Weight | 2.2 kg |
Specifications provided by the manufacturer via Icecat.
