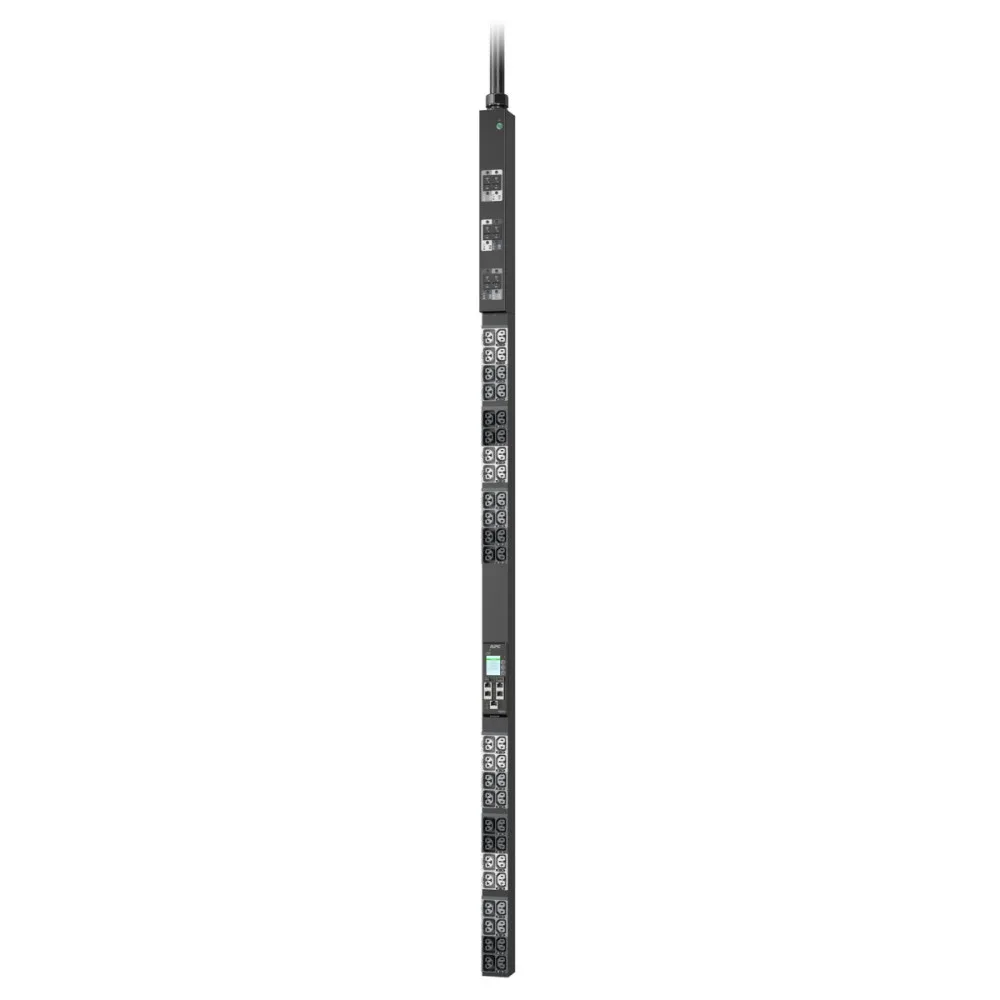

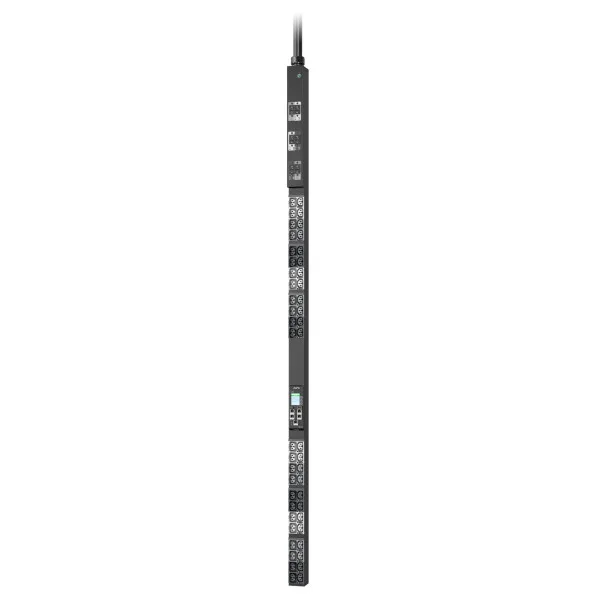

APC Netshelter Rack PDU Advanced
£1,881.99
- £1,881.99 ex VAT
APC NetShelter Rack PDU Advanced (11K Series) provides reliable power distribution to IT equipment within server and/or networking racks. PDU level power metering provides power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 48 outlets in a 2.2 in. (5.6 cm) wide form factor allows for more equipment in the rack. Outlets on the PDUs are color coded and labeled by breaker. Live Swap the NMC3 to minimize downtime in the unlikely event of an NMC power event. The rack PDU integrates with EcoStruxure IT through an NMC3 and can be accessed and configured via web, SNMP, and command line interface (CLI). A 10-foot (3-meter) input cord makes it easier for the PDU to reach the power supply. Rated to operate up to 60 C (140 F) at full load ensures reliability and availability even in today's high-density deployments. One gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity. Two link ports are available to cascade to up to 32 PDUs, with a network port sharing (NPS) feature to enable power sharing between Rack PDUs in the cascading group. Track or bill power usage confidently with 1% metering accuracy. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs have the following certifications: UL, CE, CSA, UKCA, Nemiko, PSE, KC, China RoHS, RCM, and CMIM. This model’s input power cord is IEC-309 32 A 3P+N+PE and features 24 count C13/C15/C19/C21 combo outlets and 24 count C13/C15 outlets.
- 1-Year Secure Network Management Card subscription included
- Ideal for AI and other high density applications
- 4-in-1 combination outlet design acts as C13, C15, C19, and C21 in one outlet
- Live Swap Network Management Card 3
- Enhanced cybersecurity and EcoStruxureTM IT compatible
Specifications
| Removable battery | No |
| Battery replacement accessibility | Non-removable |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | UL 62368-1\n CSA C22.2 No 62368-1\n FCC part 15 Subpart B\n CE\n EN 62368-1 |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Rack capacity | 0U |
| PDU types | Metered |
| Cable length | 3 m |
| Product colour | Black |
| Type | Three-phase |
| Customs product code (TARIC) | 8537109899 |
| Management platform | NMC3 |
| Input connection type | IEC 60309 30 A 3P + N + PE |
| Ethernet LAN (RJ-45) ports | 5 |
| USB ports quantity | 1 |
| AC outlets quantity | 48 AC outlet(s) |
| AC outlet types | C13 coupler, C15 coupler, C19 coupler, C21 coupler |
| AC input frequency | 50/60 Hz |
| Output voltage | 240 V |
| Maximum current | 30 A |
| Nominal input voltage | 415 3 phases; 400 3 phases |
| Nominal output voltage | 400 V |
| Number of phases | 3 |
| Load capacity | 17300 VA |
| Preferred mounting position | no preference |
| Width | 56 mm |
| Depth | 75 mm |
| Height | 1780 mm |
| Weight | 8.4 kg |
| Sustainable packaging | No |
| Take-back system | No |
| Packaging without single use plastic | No |
| SCIP number | 31346aed-552c-4a16-81d9-e683a383b6da |
Specifications provided by the manufacturer via Icecat.
