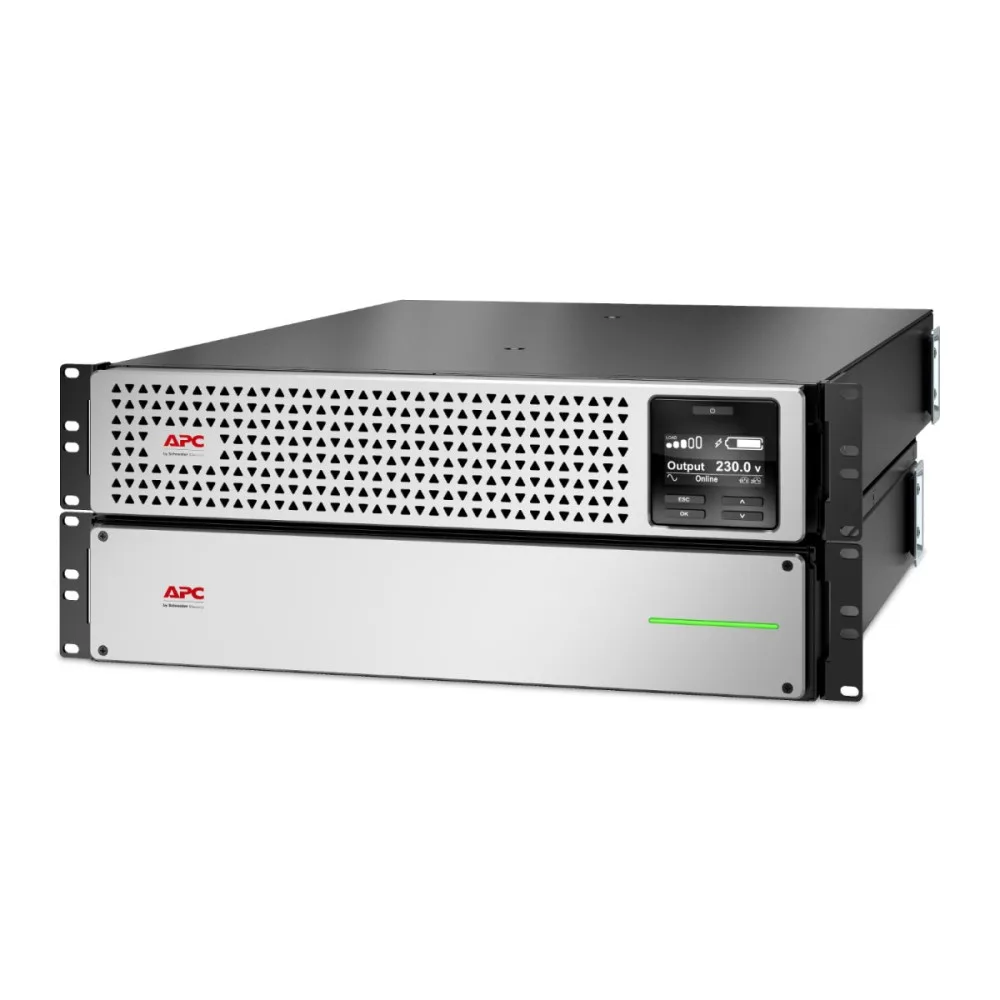

At 2700W/3000VA this Smart-UPS On-Line Lithium-Ion battery backup system provides high-density, double conversion on-line pure sine wave power, preinstalled Netwrok Management Card. In addition to cleaner, quieter power protection, this UPS is only around half size and weight of comparable UPS systems with similar runtime and has flexible rack and tower installation options. A new extended runtime battery pack provides longer runtime in a small 2U footprint while tripling the life expectancy of the UPS. SRTL 1-3kVA UPSs with this rong runtime battery pack is perfect for applications critical for runtime.
Specifications
| Specifications | |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery life (max) | 10 year(s) |
| Battery voltage | 48 V |
| Form factor | Rackmount/Tower |
| International Protection (IP) code | IP20 |
| Rack capacity | 4U |
| Cable length | 1.83 m |
| Product colour | Black, Silver |
| Input frequency | 40/70 Hz |
| Output power | 2700 W |
| Output power capacity | 3 kVA |
| Waveform | Sine |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Audible alarm(s) | Yes |
| UPS topology | Double-conversion (Online) |
| Input operation voltage (max) | 230 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 432 J |
| Crest factor | 3:1 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3048 m |
| Rack mount kit | Yes |
| Management card included | Yes |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Emergency Power Off (EPO) connector | Yes |
| SmartSlot | Yes |
| SmartConnect port | No |
| Sustainability certificates | Green Premium |
| Width | 432 mm |
| Depth | 639 mm |
| Height | 171 mm |
| Weight | 44.5 kg |
Specifications provided by the manufacturer via Icecat.
