TUF GAMING
B860M-PLUS WIFI

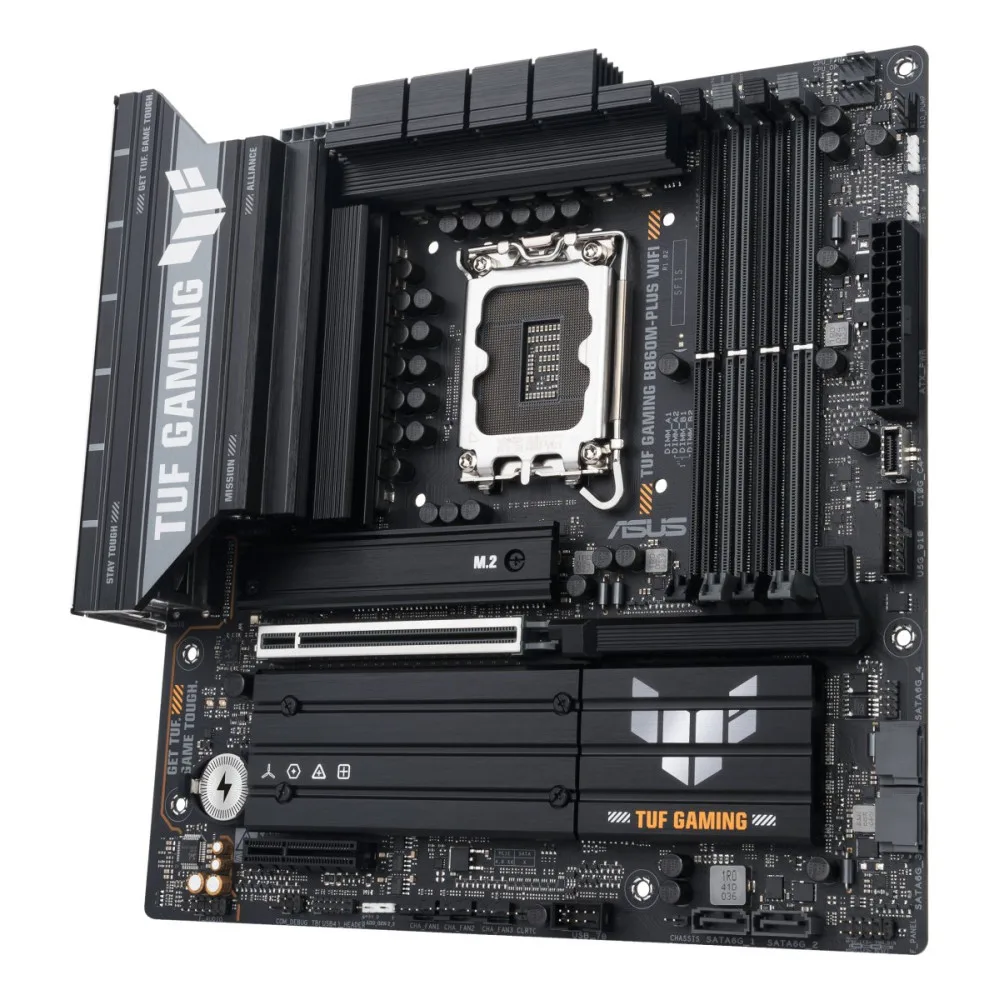

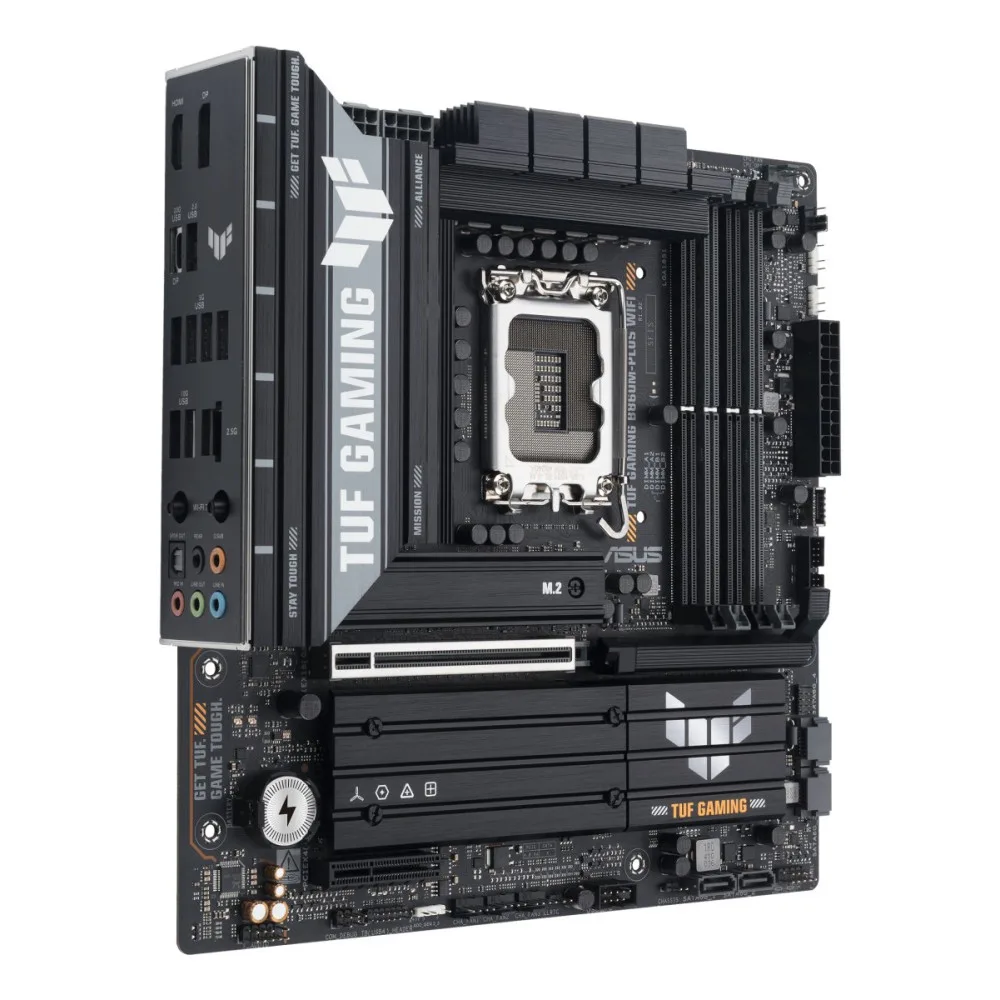

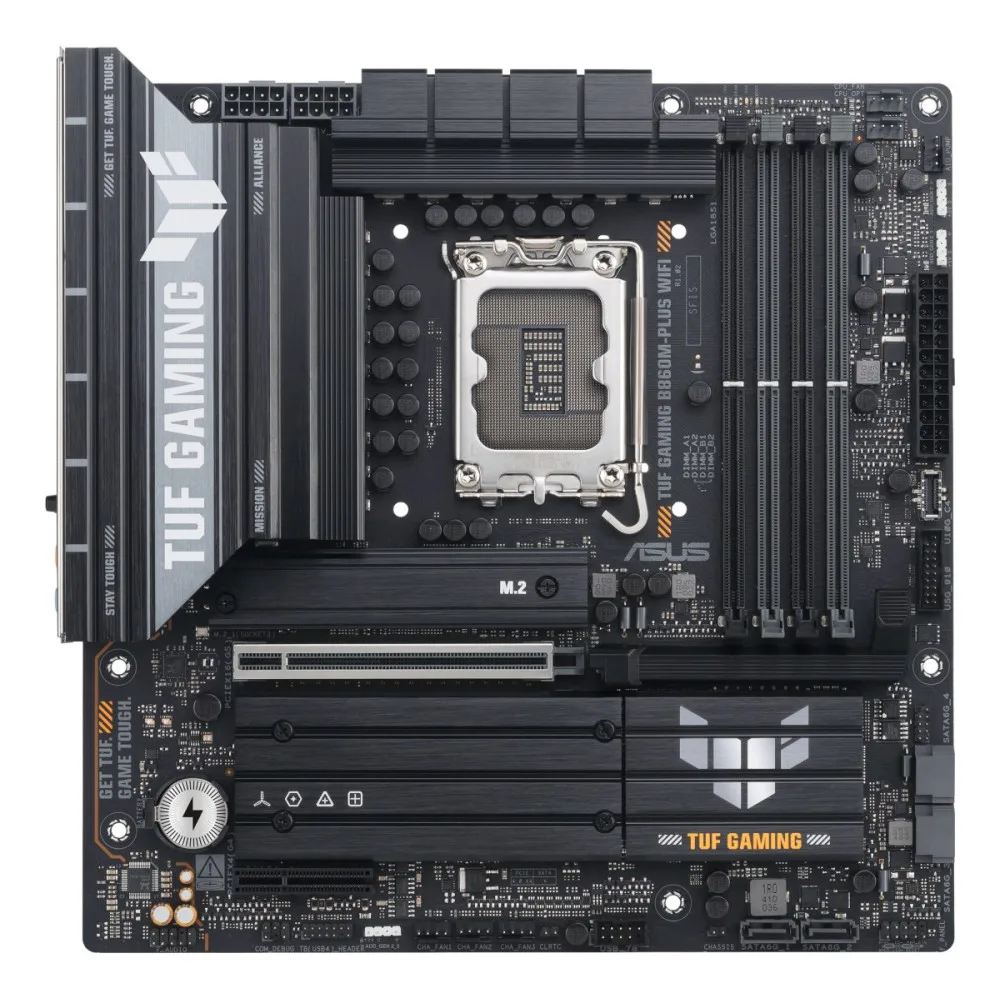

ASUS TUF GAMING B860M-PLUS WIFI takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
Specifications
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Number of storage drives supported | 7 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| Product colour | Black |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| On-board graphics card | No |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| Thunderbolt headers | 1 |
| 12V power connector | Yes |
| Front panel connector | Yes |
| Chassis intrusion connector | Yes |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Unbuffered memory | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Cables included | SATA |
| Screws included | Yes |
| Antenna included | Yes |
| Package width | 275 mm |
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Package weight | 1.65 kg |
| Maximum internal memory | 256 GB |
| Motherboard chipset | Intel B860 |
| Supported processor sockets | LGA 1851 |
| Compatible processor series | Intel Core Ultra (Series 2) |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| S/PDIF out port | Yes |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Parallel processing technology support | Not supported |
| WiFi-AP antenna jack | 1 |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Windows operating systems supported | Windows 11 |
| Width | 244 mm |
| Depth | 244 mm |
Specifications provided by the manufacturer via Icecat.
