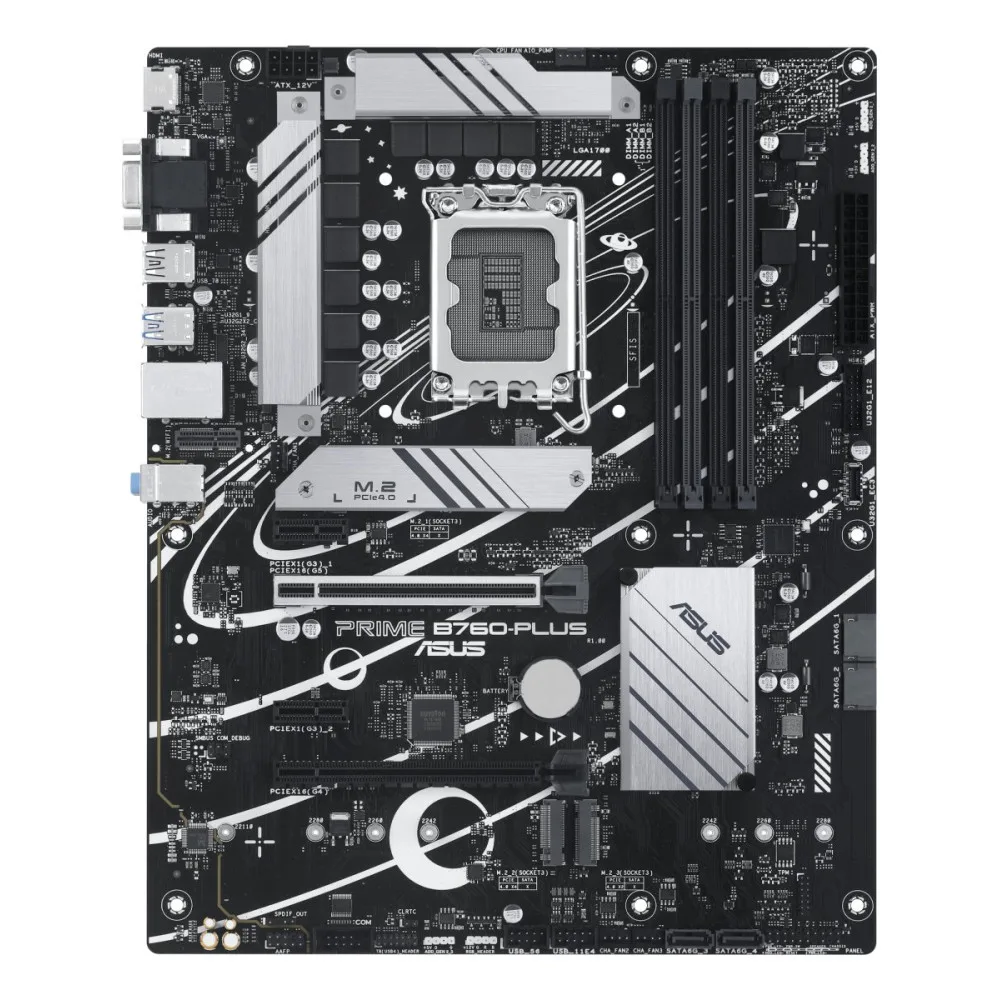

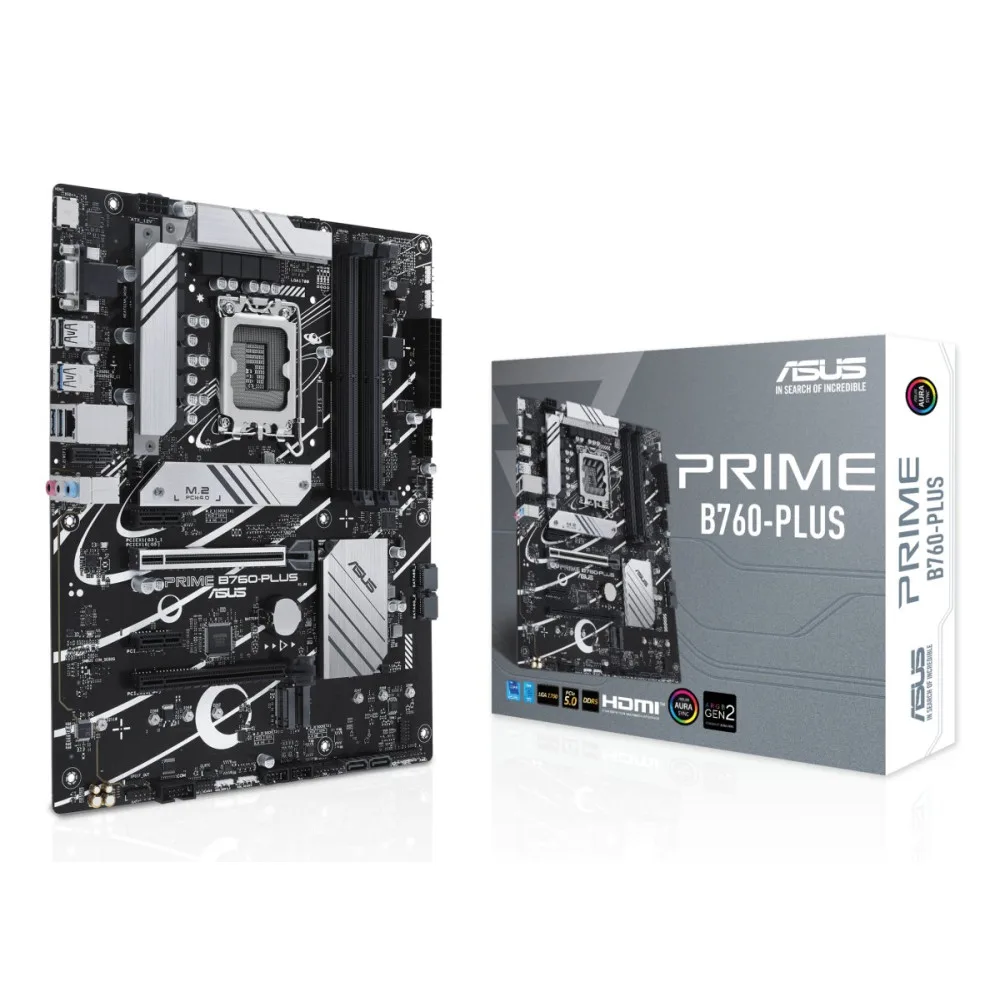

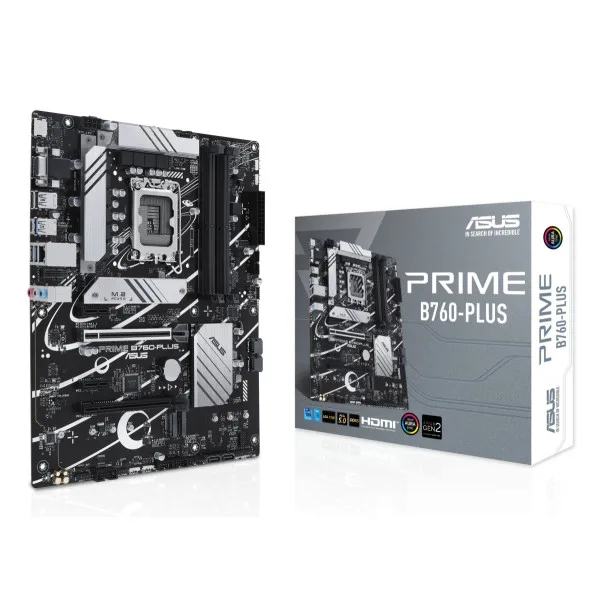

ASUS Prime B760-PLUS
£127.99
- £127.99 ex VAT
B760-PLUS
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760-PLUS provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760-PLUS motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Quick and Simple Setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.
All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
Flexible Air- and Liquid-Cooling Controls
ASUS Fan Xpert 2+ software provides comprehensive control over fans and all-in-one (AIO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans and AIO coolers can also be controlled via the UEFI BIOS.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
Intuitive Graphical Fan Control
Fine-tune individual fan settings simply by dragging a curve with the mouse
Aura On/Off Mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ (USB4®) header support
- Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Specifications
| Audio output channels | 7.1 channels |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Cooling type | Passive |
| Number of storage drives supported | 7 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| EPS power connector (8-pin) | Yes |
| Thunderbolt headers | 1 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |
| Front panel connector | Yes |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz |
| Unbuffered memory | Yes |
| Top Wi-Fi standard | Not available |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Cables included | SATA |
| Package width | 328 mm |
| Package depth | 266 mm |
| Package height | 53 mm |
| Package weight | 1.2 kg |
| Maximum internal memory | 192 GB |
| Motherboard chipset | Intel B760 |
| Supported processor sockets | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Line-in | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Power source type | ATX |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Parallel processing technology support | Not supported |
| Maximum number of SMP processors | 1 |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 36 mm |
| Weight | 760 g |
Specifications provided by the manufacturer via Icecat.
