ASUS ROG Crosshair 2006
£619.99
- £619.99 ex VAT

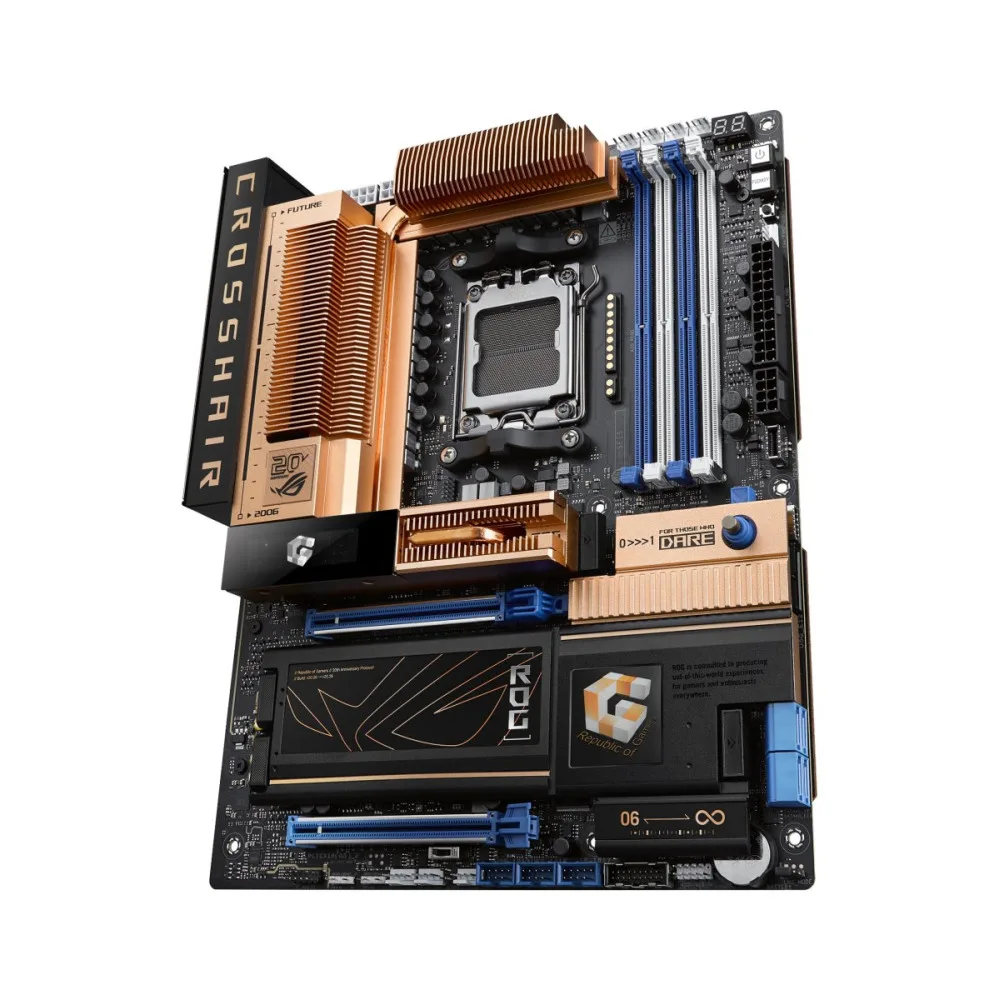

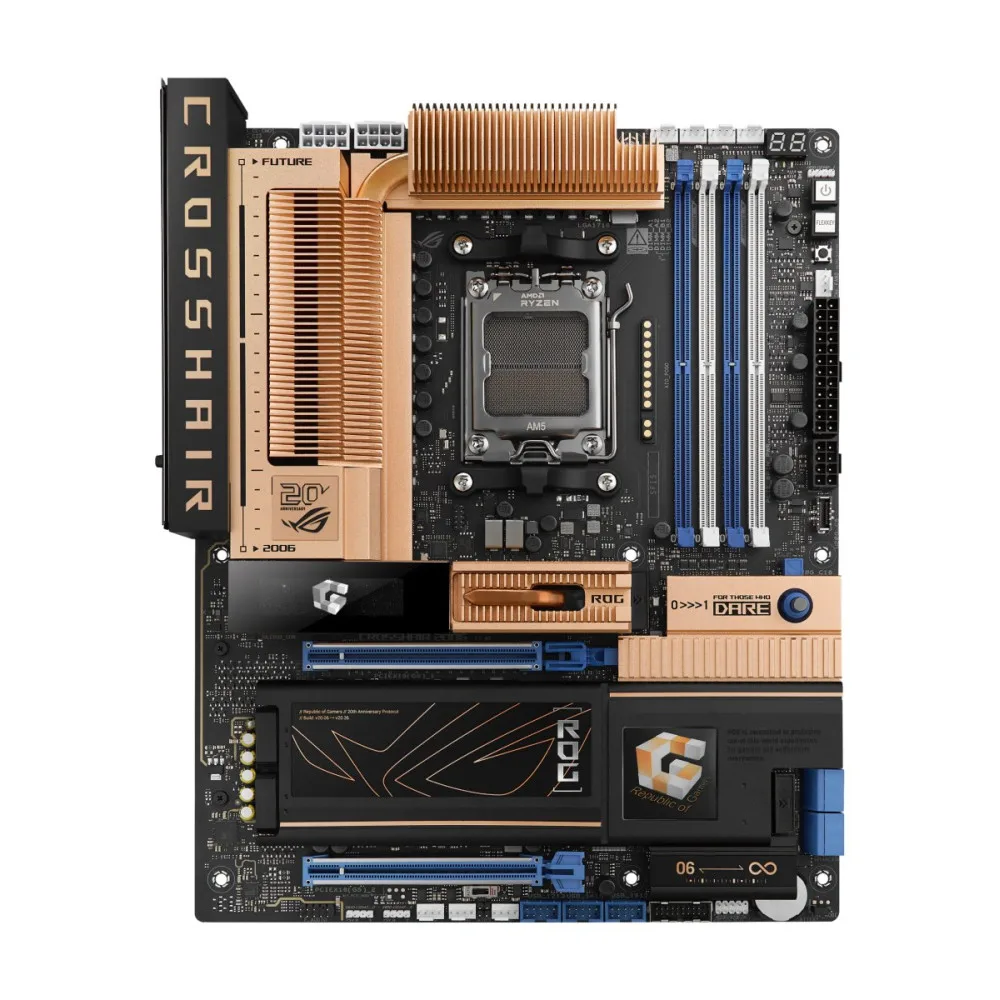

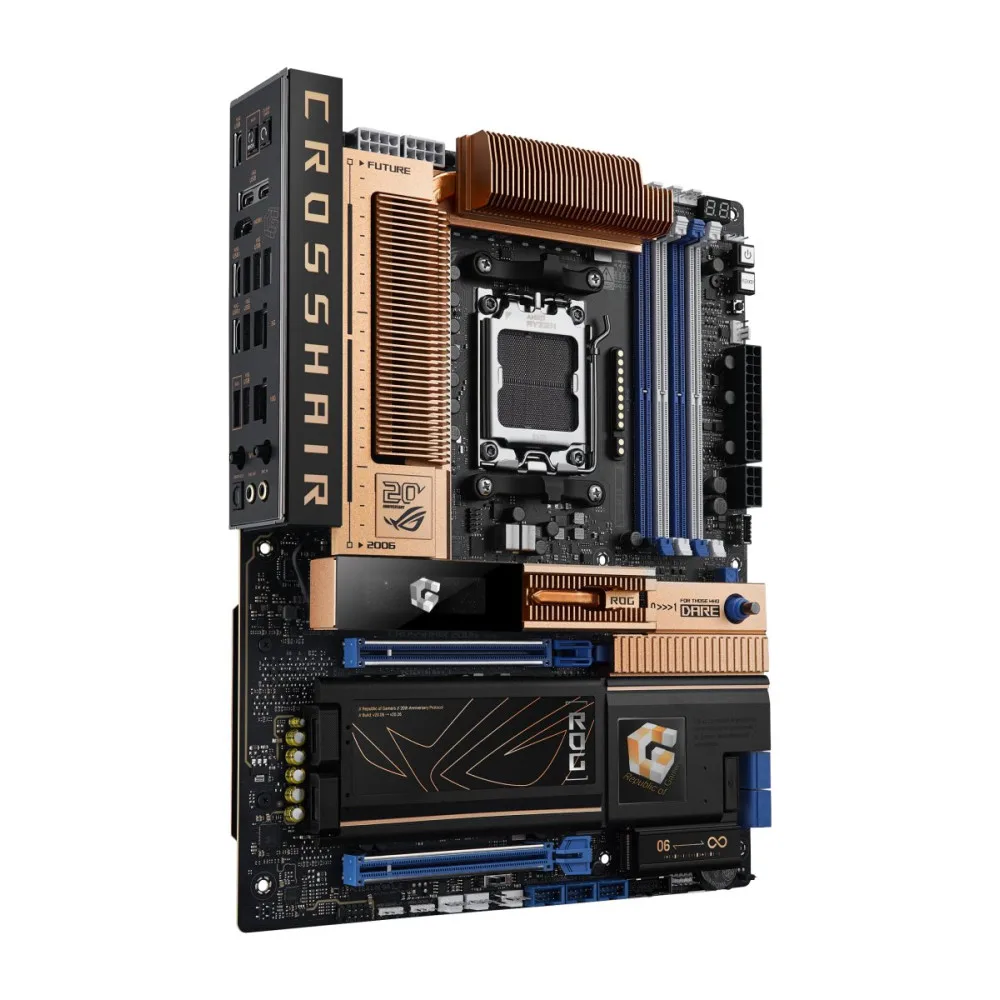

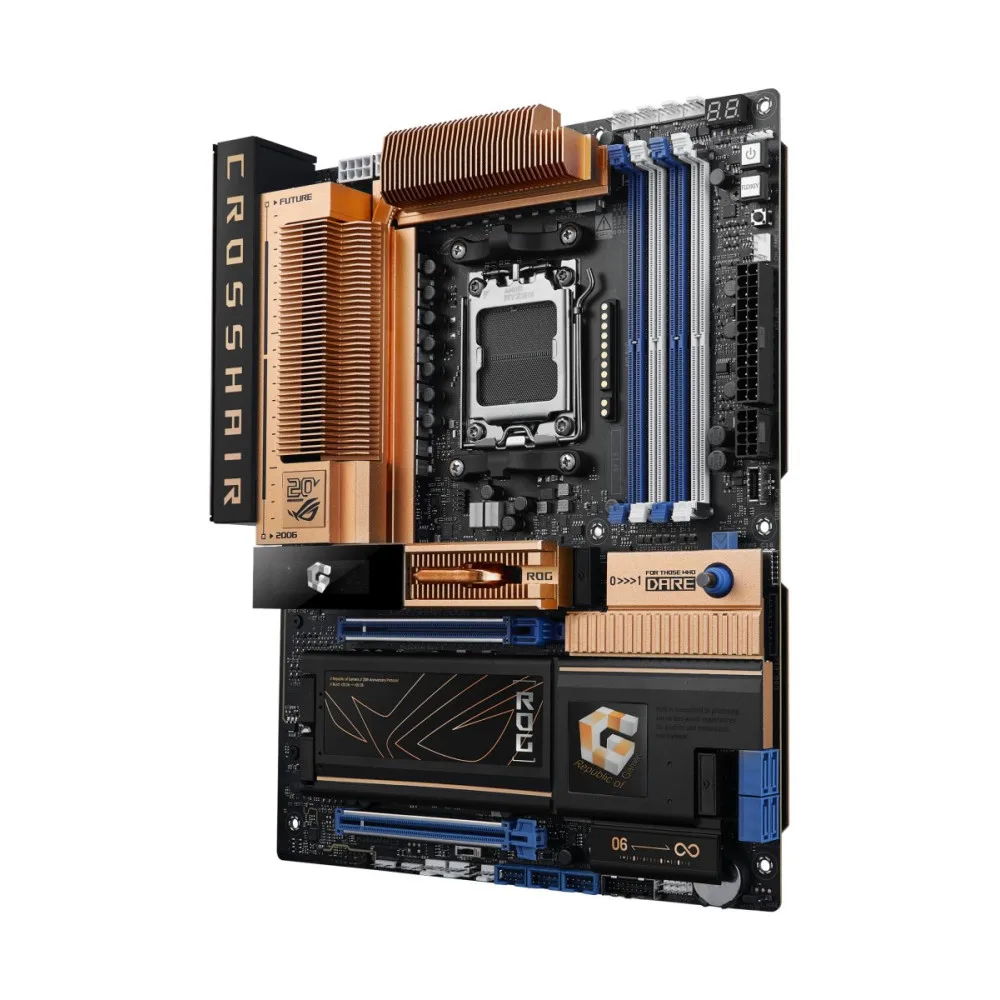

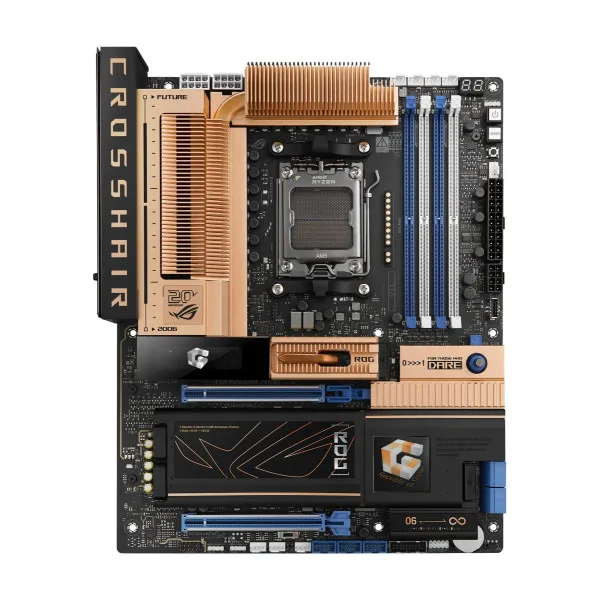

ROG Crosshair 2006
The ROG Crosshair 2006 celebrates the 20th anniversary of the very first ROG motherboard with a retro-inspired copper color design and signature OLED animation. This flagship platform also offers advanced power delivery and cutting-edge memory technologies, blending heritage with modern performance.
Personalization
The ROG Crosshair 2006 includes LiveDash, a built-in 2-inch OLED panel that shows useful information and features customizable graphics. During the power-on, self-test (POST) phase, the OLED shows key stats in simple language using traditional POST codes. In normal operation, the panel can be programmed to show CPU frequency, device temperatures, or fan speeds. You can also personalize the default OLED GIF with a preferred image or animation.
*Supports custom animation uploads in 256x64 pixel monochrome format (up to 100KB).
Specifications
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC4082 |
| BIOS type | UEFI AMI |
| BIOS memory size | 512 Mbit |
| Number of storage drives supported | 9 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 5 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
| 5th M.2 largest key size | 2230 |
| 5th M.2 highest PCI Express generation | 4.0 |
| Product colour | Black, Gold |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 4 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Front panel connector | Yes |
| Number of RGB LED pin headers | 3 |
| USB 3.2 Gen 2x2 connectors | 2 |
| Number of temperature sensor headers | 1 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Unbuffered memory | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| WLAN controller model | MediaTek MT7927 |
| Ethernet interface type | 5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Cables included | SATA |
| Screws included | Yes |
| Antenna included | Yes |
| Package width | 370 mm |
| Package depth | 312 mm |
| Package height | 108 mm |
| Package weight | 5.57 kg |
| Maximum internal memory | 256 GB |
| Motherboard chipset | AMD X870E |
| Supported processor sockets | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| USB4 Gen 3x2 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 3 |
| S/PDIF out port | Yes |
| Power source type | ATX |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Parallel processing technology support | Not supported |
| WiFi-AP antenna jack | 1 |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Windows operating systems supported | Windows 11 |
| Width | 305 mm |
Specifications provided by the manufacturer via Icecat.
