ASUS
ASUS ROG Crosshair X870E Extreme
In stock - ready to ship
Estimated delivery Tuesday 29 SeptemberDispatched within 24 hours by DPD
£850.99
- £850.99 ex VAT

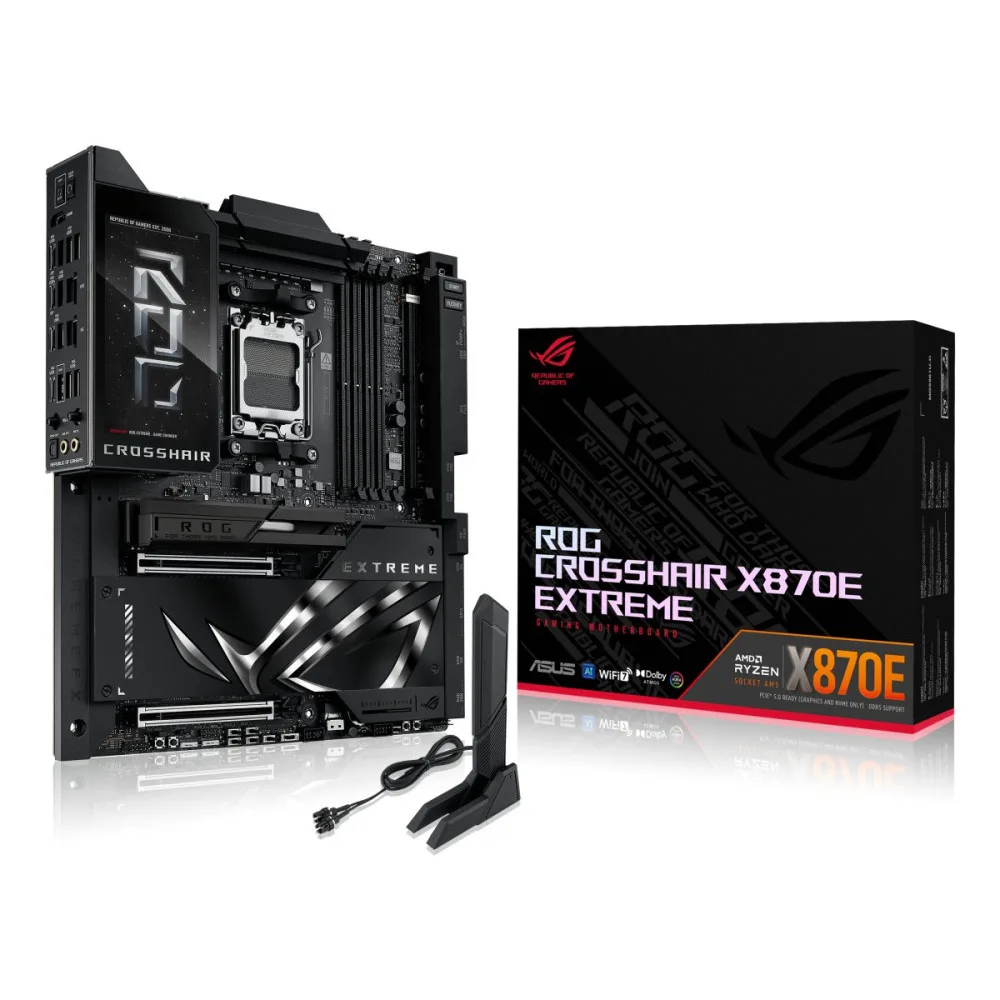

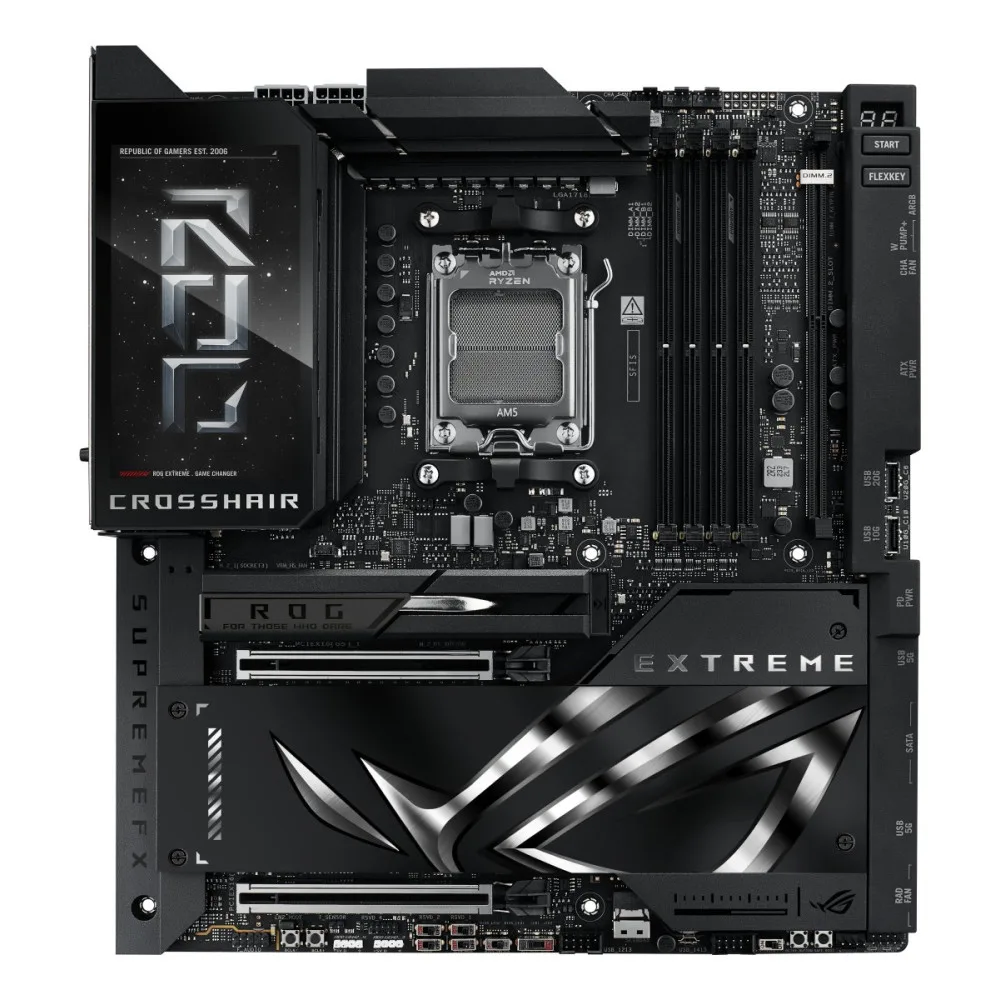

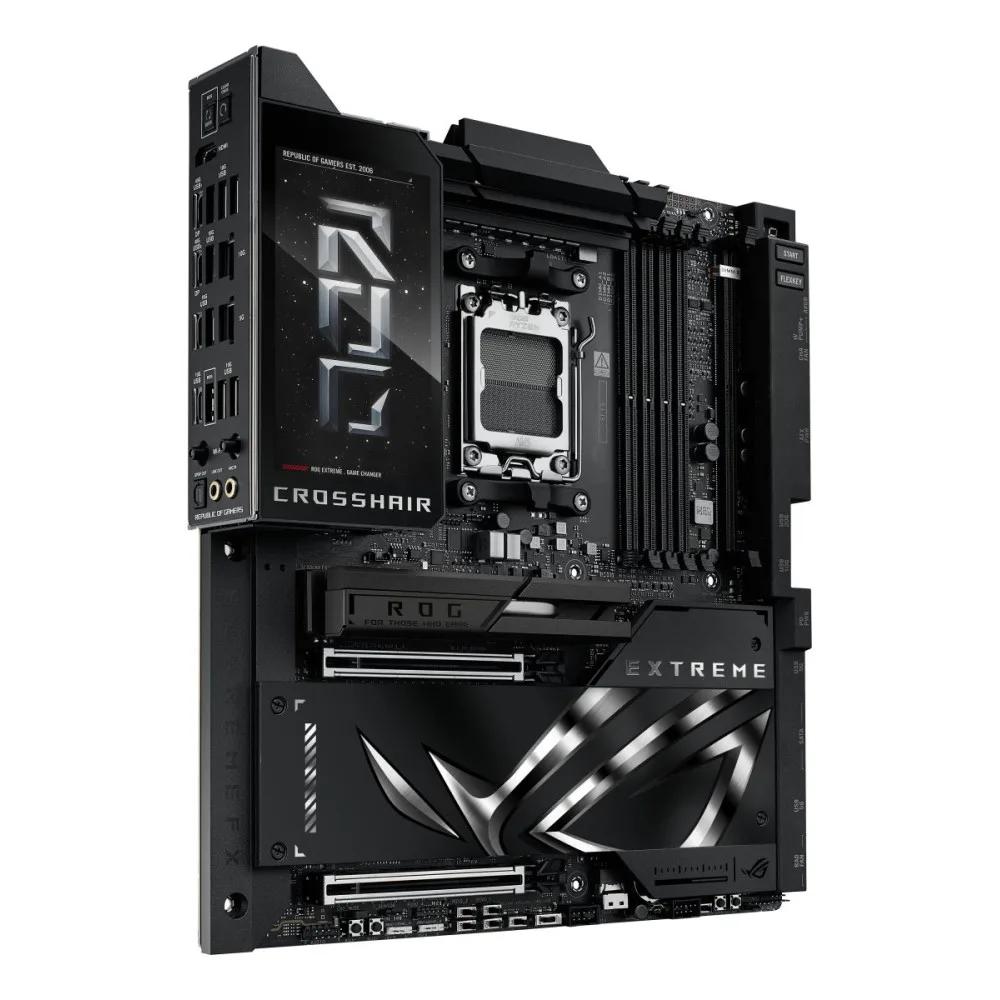

ROG Crosshair X870E Extreme
The ROG Crosshair X870E Extreme is the flagship AMD Ryzen™ 9000 series motherboard, designed for the most discerning users. It provides the ultimate foundation for AM5 CPUs, DDR5 memory, and PCIe® 5.0 components to ensure maximum performance and future-readiness. Its comprehensive connectivity includes USB4®, and the integrated 5-inch LCD offers a unique way to monitor system performance or add a touch of personalized style.
ASUS AI CACHE BOOST
Supercharge your large language model(LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 Series and 600 Series motherboards using AMD Ryzen™ 9000 Series Granite Ridge CPUs, this BIOS feature intelligently enhances cache efficiency, delivering up to 12.75% faster performance for your LLM tasks.
Specifications
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC4082 |
| BIOS type | UEFI AMI |
| BIOS memory size | 512 Mbit |
| Number of storage drives supported | 10 |
| Number of M.2 (M) slots | 5 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 5.0 |
| 4th M.2 largest key size | 22110 |
| 4th M.2 highest PCI Express generation | 4.0 |
| 5th M.2 largest key size | 22110 |
| 5th M.2 highest PCI Express generation | 4.0 |
| Product colour | Black |
| Component for | PC |
| Motherboard form factor | Extended ATX |
| Motherboard chipset family | AMD |
| On-board graphics card | No |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Front panel connector | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Unbuffered memory | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | 5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Special features | <strong>Supports up to 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports*</strong><br /><strong>AMD Ryzen™ 9000 & 7000 Series Desktop Processors</strong><br />M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)<br />M.2_2 slot (Key M), type 2242/2260/2280 (suppor |
| Other features | 4 x DIMM slots, max. 256GB, DDR5 <br /> Supports up to<br /> 8200+MT/s(OC) with Ryzen™ 9000 Series Processors,<br /> 9000+MT/s(OC) with Ryzen™ 8000 Series Processors,<br /> 8000+MT/s(OC) with Ryzen™ 7000 Series Processors,<br /> ECC and Non-ECC, Un-buffered DIMM*<br />Dual Channel Memory Architectur |
| Cables included | SATA |
| Drivers included | Yes |
| Antenna included | Yes |
| Package width | 380 mm |
| Package depth | 320 mm |
| Package height | 125 mm |
| Package weight | 5.66 kg |
| Maximum internal memory | 256 GB |
| Motherboard chipset | AMD X870E |
| Supported processor sockets | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| USB4 Gen 3x2 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 8 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Audio output | <strong>ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*</strong><br /> - Impedance sense for front and rear headphone outputs<br /> - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking<br /> - High quality 120 dB SNR stereo playback output and 110 dB SNR |
| S/PDIF out port | Yes |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Parallel processing technology support | Not supported |
| PS/2 ports quantity | 1 |
| WiFi-AP antenna jack | 1 |
| Supported storage drive interfaces | M.2, SATA III, SlimSAS |
| Supported storage drive types | HDD & SSD |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Windows operating systems supported | Windows 11 |
| Width | 305 mm |
Specifications provided by the manufacturer via Icecat.
