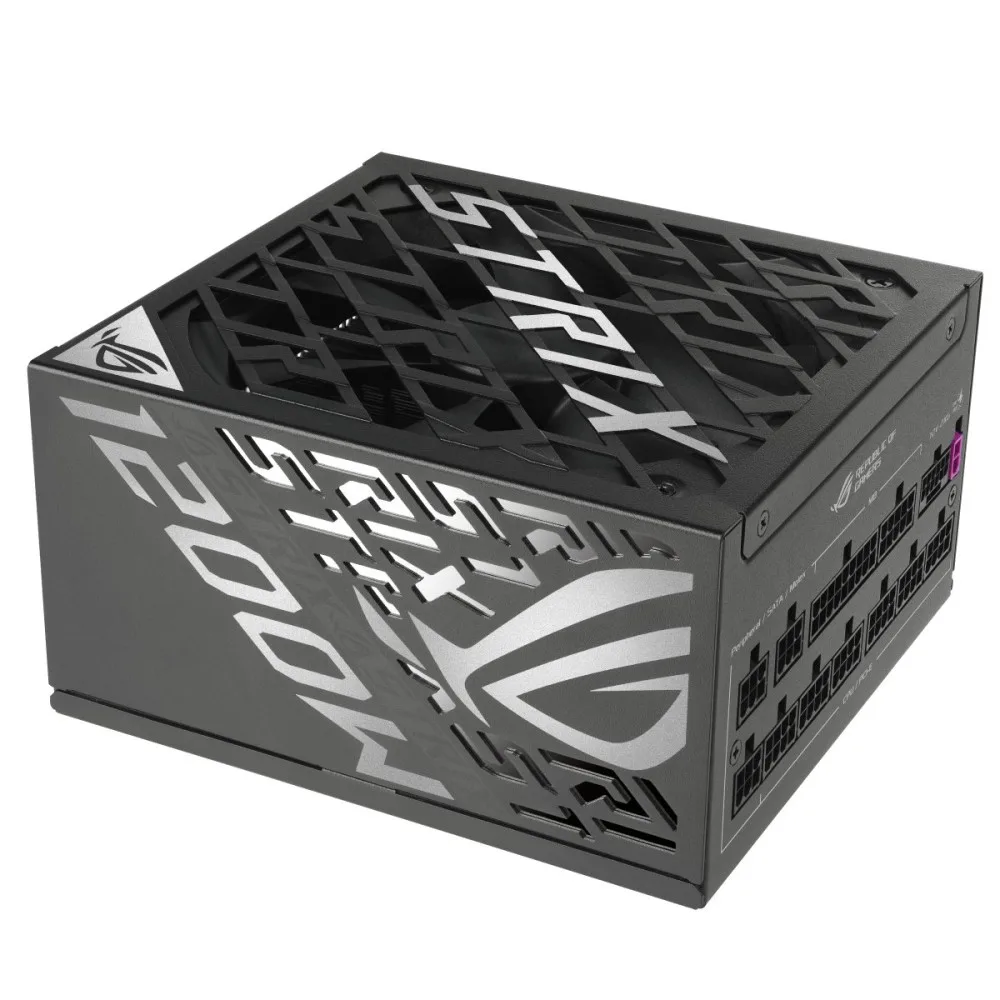

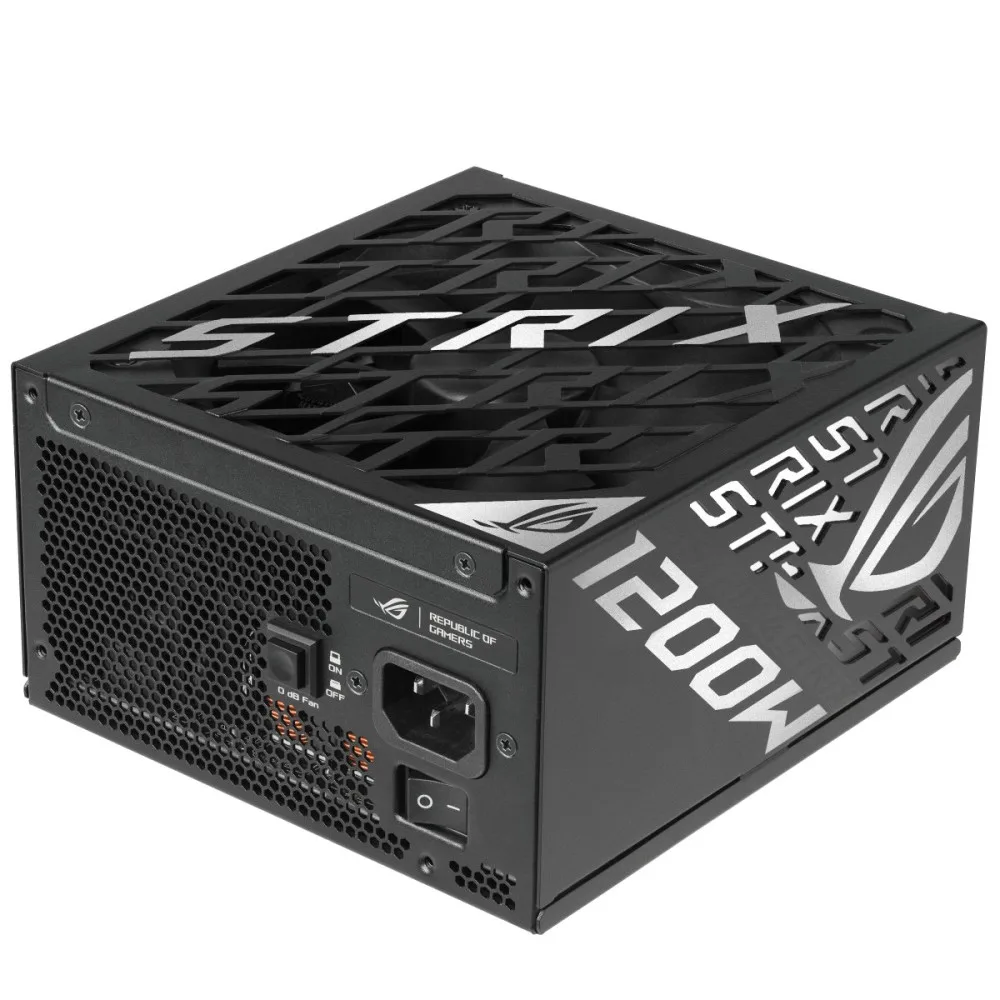

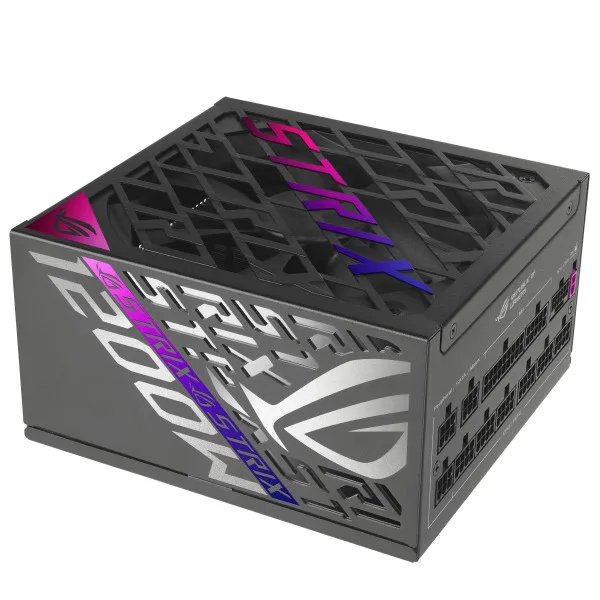

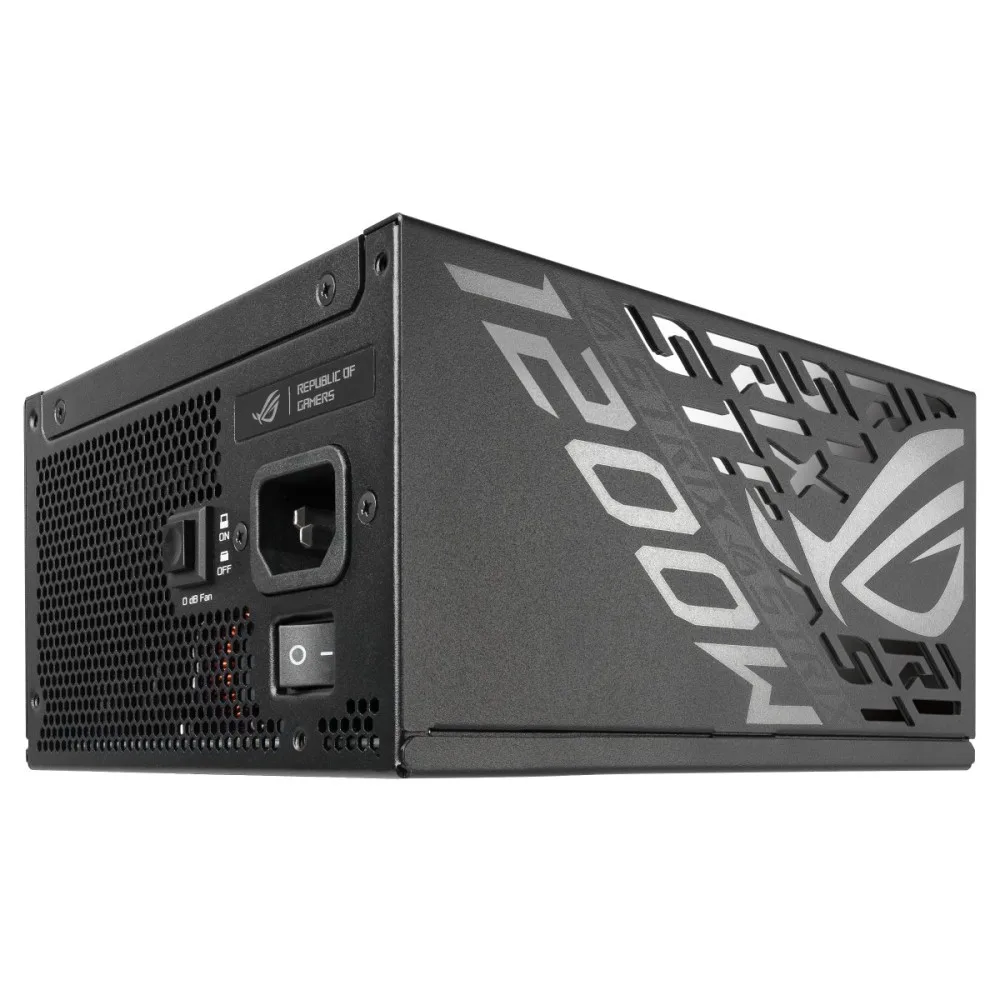

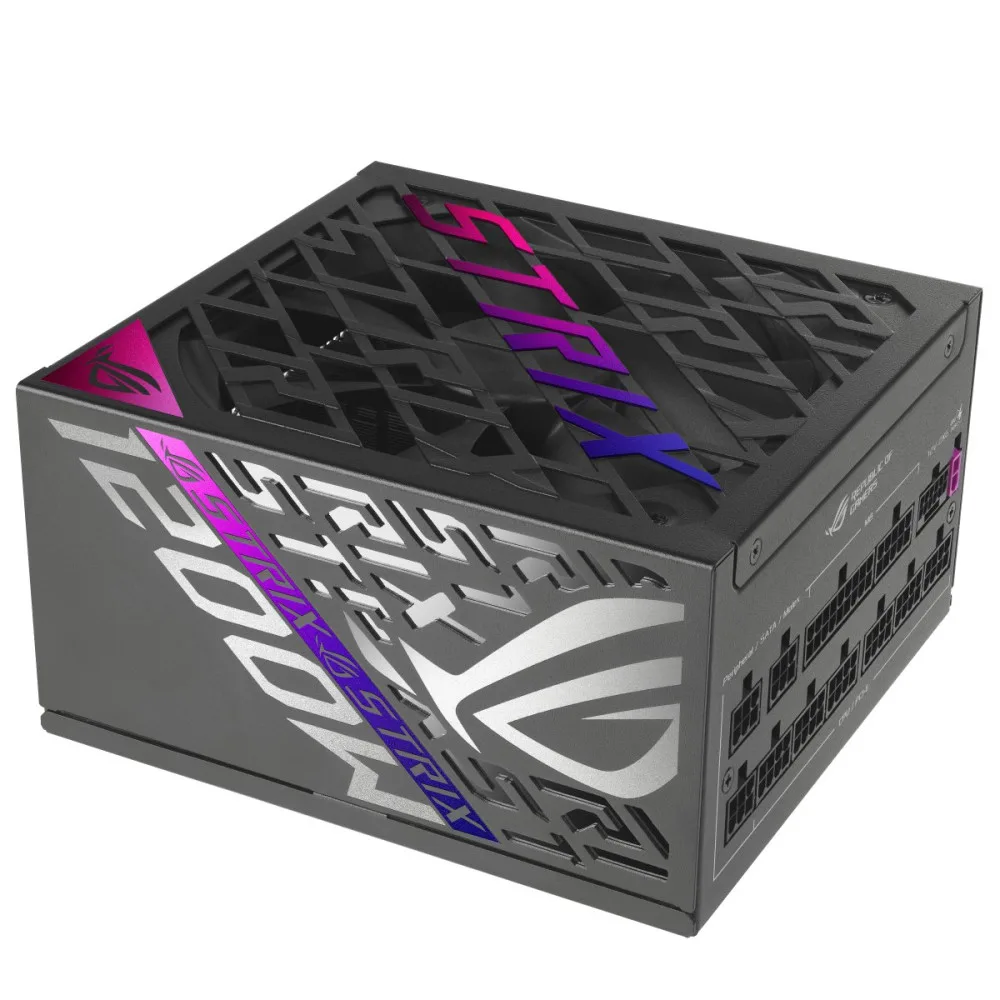

ASUS ROG Strix 1200W Platinum ROG EQ
£238.99
- £238.99 ex VAT
Superior Stability. Next-Level Efficiency
The ROG Strix 1200W Platinum PSU delivers the top-tier performance and unwavering stability demanded by gamers. Featuring a next gen GaN MOSFET for premium power efficiency, it also incorporates the patented GPU-First Intelligent Voltage Stabilizer to maintain a steady and reliable flow of power to the graphics card.
The ROG Strix 1200W Platinum further includes the ROG Equalizer, a patented 12V-2x6 PCIe power cable engineered to reduce heat stress and keep cable and connector temperatures well to protect the graphics card. With full ATX 3.1 compliance and a native 12V-2×6 connector, the ROG Strix Platinum Series ensures your high-end rig has the power to conquer any challenge.
Specifications
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Product colour | Black, Multicolour |
| Mean time between failures (MTBF) | 120000 h |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Noise level | 25 dB |
| Purpose | PC |
| On/off switch | Yes |
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Package width | 320 mm |
| Package depth | 200 mm |
| Package height | 108 mm |
| Package weight | 3.65 kg |
| Package type | Box |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | DBB |
| Motherboard power connector | 20+4 pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 6 |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 75 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 100 cm |
| Cabling type | Fully-Modular |
| ATX power connector (20+4 pin) | Yes |
| PCI Express connector | Yes |
| AC input voltage | 100 - 240 V |
| 80 PLUS certification | 80 PLUS Platinum |
| Total power | 1200 W |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Width | 160 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.84 kg |
Specifications provided by the manufacturer via Icecat.
