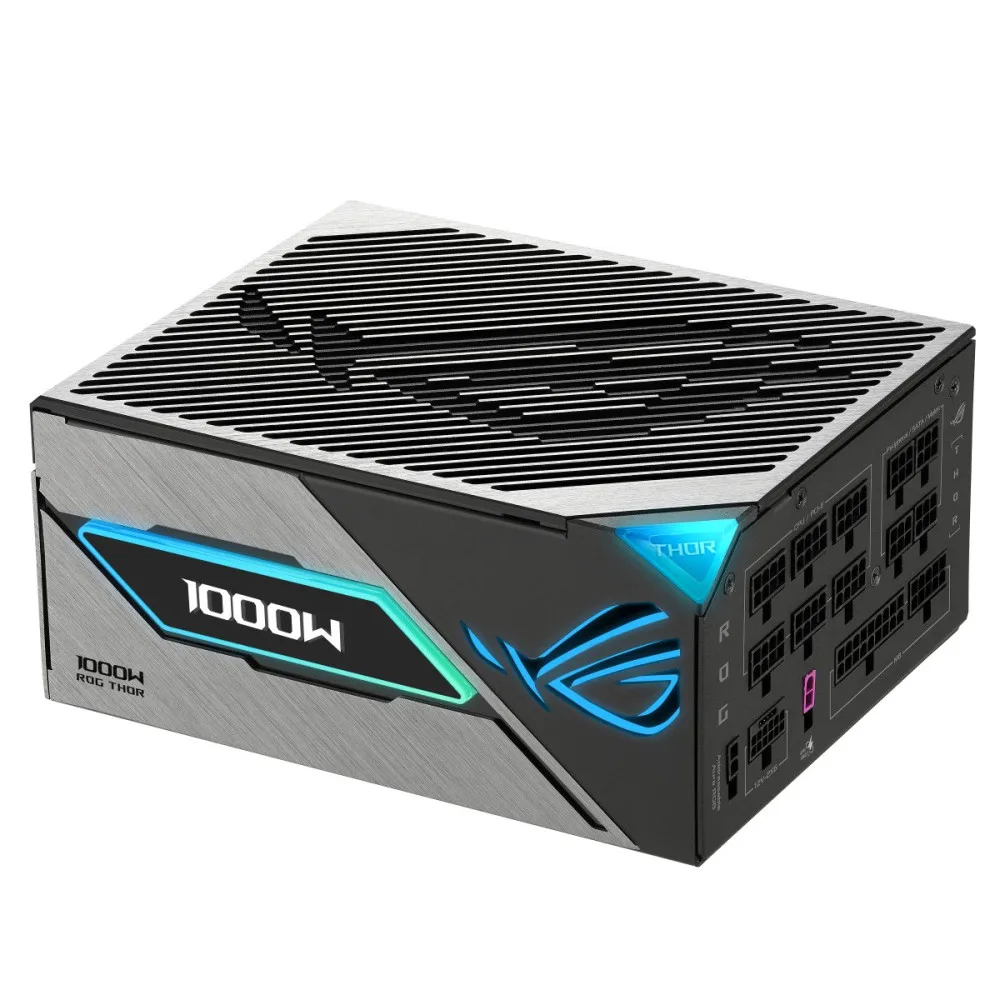

ASUS ROG Thor 1000W Plat 3 ROG EQ
£337.99
- £337.99 ex VAT
Ultimate Power. Unmatched Stability
The ROG Thor 1000W Platinum III delivers the power and stability demanded by gamers. A next-gen GaN MOSFET boosts efficiency, while GPU-First voltage sensing with a patented intelligent stabilizer ensures stable, top-tier performance. Turbo Mode maximizes cooling for overclocking and demanding workloads.
The ROG Thor 1000W Platinum III also includes the ROG Equalizer, a patented 12V-2x6 PCIe power cable engineered to reduce heat stress and keep cable and connector temperatures well to protect the graphics card. With full ATX 3.1 compliance and a native 12V-2x6 connector, the ROG Thor III Platinum Series ensures your high-end rig has the power to conquer any challenge.

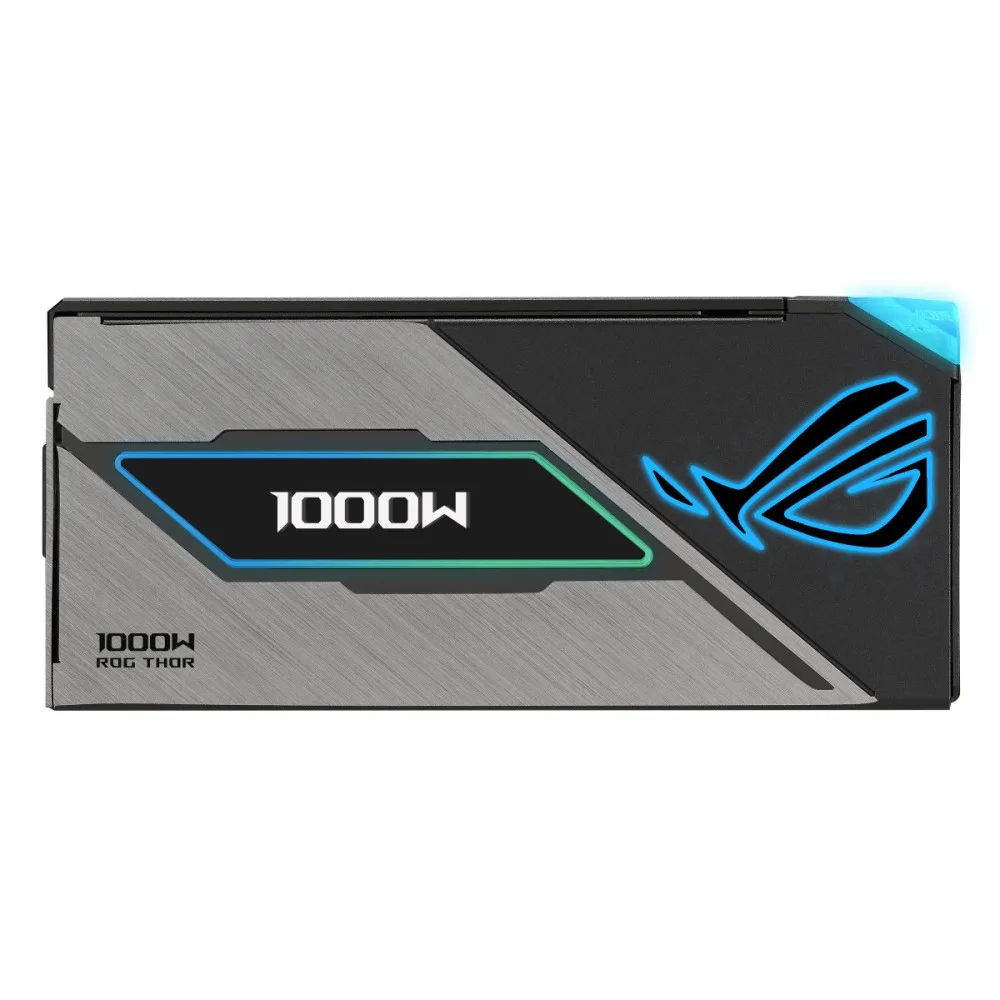

The ROG Thor 1000W Platinum III retains its signature OLED display, now with magnetic attachment for easy swapping to either side, supporting both fan-up and fan-down installations.
Specifications
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Illumination | Yes |
| Fan location | Top |
| Product colour | Black |
| Mean time between failures (MTBF) | 120000 h |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under power |
| Purpose | PC |
| On/off switch | Yes |
| Cables included | CPU, PCIe, SATA, Peripheral (Molex) |
| Package width | 379 mm |
| Package depth | 241 mm |
| Package height | 127 mm |
| Package weight | 5.17 kg |
| Package type | Box |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | DBB |
| Motherboard power connector | 20+4 pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 7 |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 75 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 100 cm |
| Cabling type | Fully-Modular |
| PCI Express connector | Yes |
| AC input voltage | 100 - 240 V |
| 80 PLUS certification | 80 PLUS Platinum |
| Total power | 1000 W |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 1000 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 30 A |
| Max output current (+12V) | 83.33 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Width | 190 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.37 kg |
Specifications provided by the manufacturer via Icecat.
