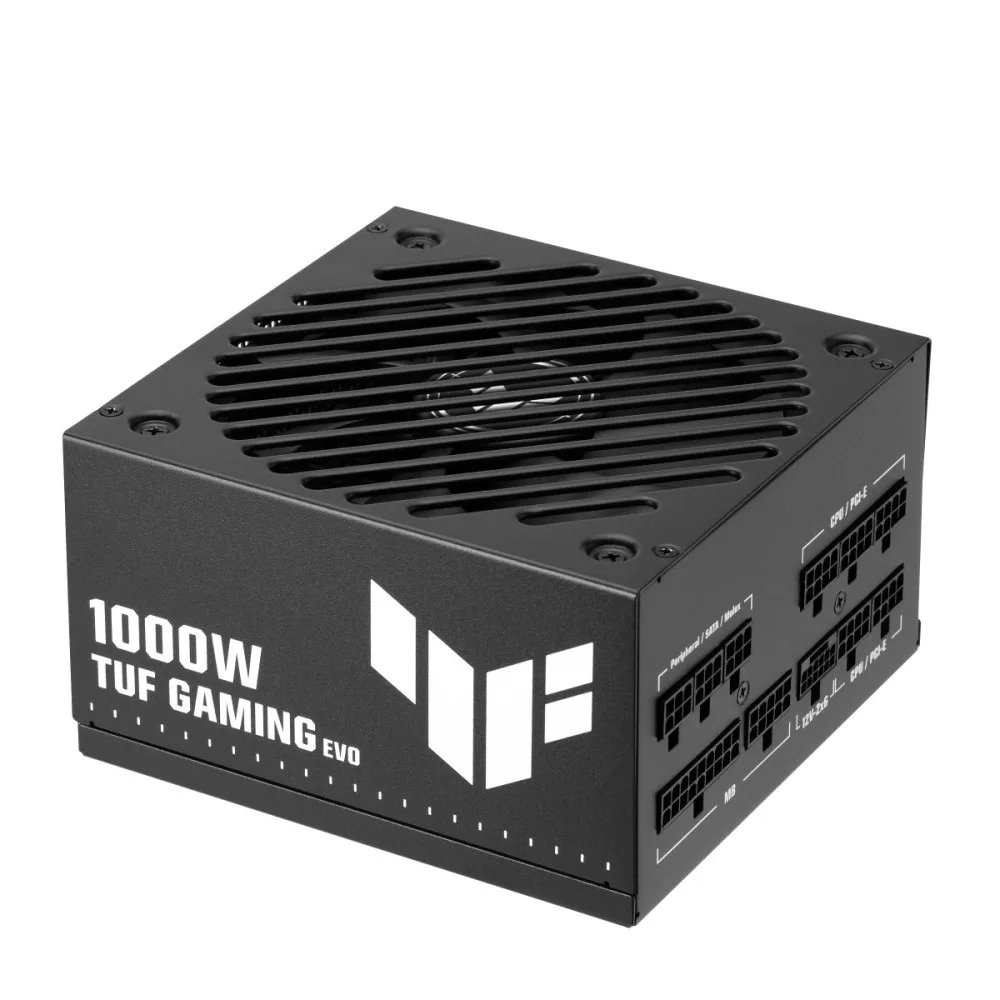

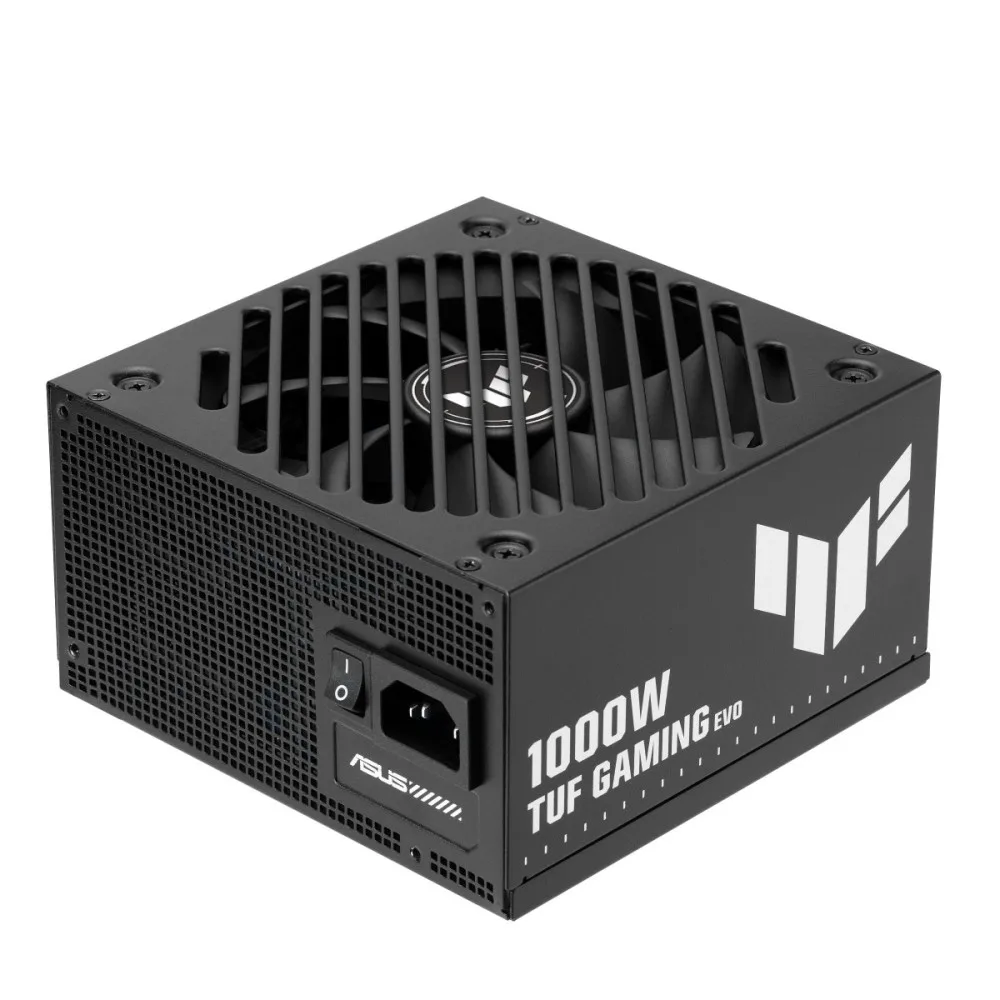

ASUS TUF Gaming 1000g Evo
£134.99
- £134.99 ex VAT
Built For The Long Haul
The ASUS TUF Gaming 1000W Gold EVO packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that can reliably fuel your rig for years to come.
Premium Durability
Military-Grade Capacitors
Engineered for exceptional durability, the TUF Gaming Gold EVO series features TUF 5K black metallic capacitors, offering a 52% wider temperature tolerance and up to a 2.5X longer lifespan than standard capacitors.
Latest Standards
ATX 3.1 & PCIe 5.1 Compatible
The TUF Gaming Gold EVO series meets the stringent requirements of the ATX 3.1 standard and supports PCIe 5.1 graphics cards. It supports total power excursions up to twice the rated power and graphics card power excursions up to three times the rated power, helping to ensure rock-solid stability for your PC.
EFFICIENCY CERTIFICATION
80 PLUS Gold Efficiency
The TUF Gaming Gold EVO series achieves 80 PLUS Gold certifications by leveraging low-ESR Japanese capacitors that deliver stability and efficiency, leading to improved power consumption, heat generation, acoustics and reliability.
PREMIUM ETCHED CABLES
Made from a pliable premium material, these etched cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management.
PROTECTION
To make sure the entire system can operate safely and stably at all times, this power supply comes with a number of protection mechanisms to give you the best peace of mind.
Specifications
| Compliance certificates | RoHS |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Mean time between failures (MTBF) | 120000 h |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage, Overheating |
| Purpose | PC |
| Warranty period | 8 year(s) |
| On/off switch | Yes |
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
| Package width | 282 mm |
| Package depth | 182 mm |
| Package height | 127 mm |
| Package weight | 3.17 kg |
| Package type | Box |
| Fan diameter | 13.5 cm |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | Ball bearing |
| Motherboard power connector | 20+4 pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 6 |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (16-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |

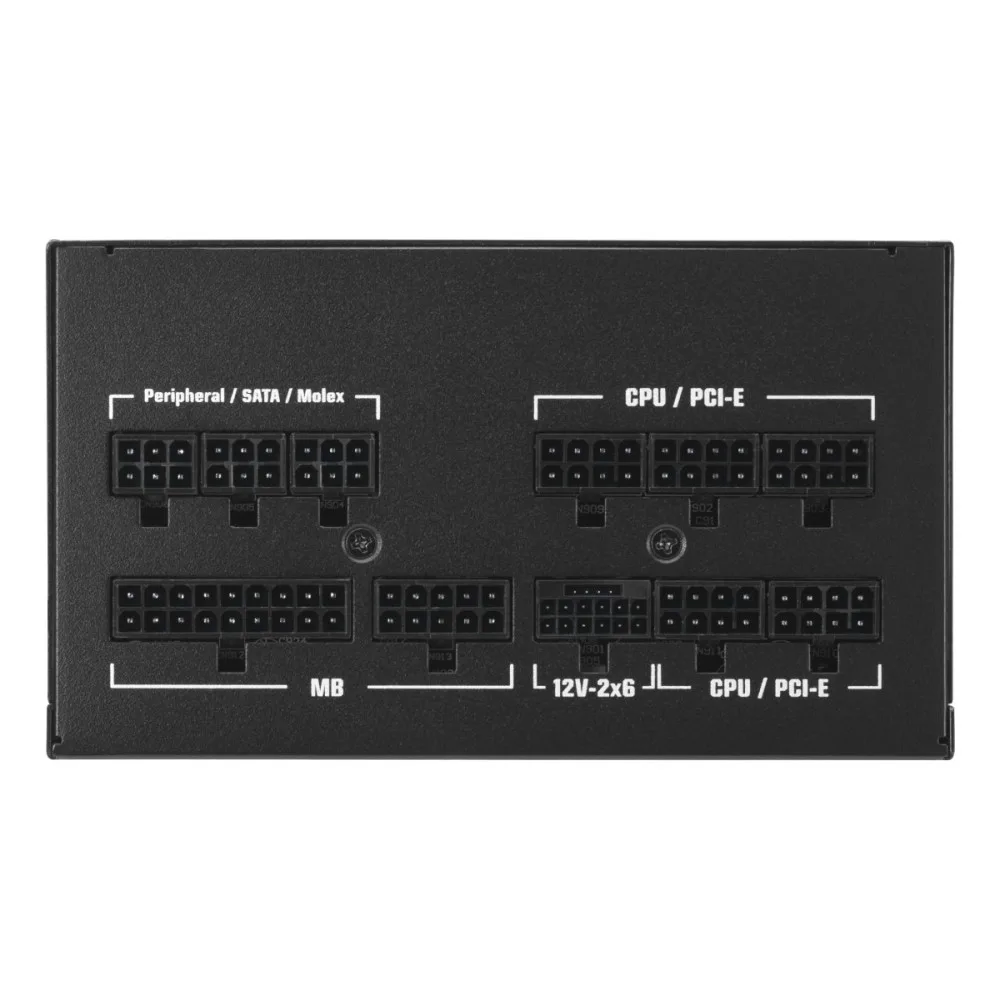

| Cabling type | Fully-Modular |
| AC input voltage | 100 - 240 V |
| 80 PLUS certification | 80 PLUS Gold |
| Total power | 1000 W |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 1000 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 83.33 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.72 kg |
Specifications provided by the manufacturer via Icecat.
