MSI Cubi Nuc AI 1UMG I5 125H BB
£368.99
- £368.99 ex VAT
The Cubi NUC AI 1UM is a mini pc equipped with Intel® AI Boost NPU and Intel® CoreTM Ultra processor, and it won the Red Dot Design Award in 2024. With quadruple monitor support, dual 2.5G LAN network capabilities, sustainable material and packing design, the Cubi NUC AI is compact, versatile, yet capable mini desktop PC for home or the office with AI features.
Up to Intel® CoreTM Ultra 5 processor 125H with Intel® AI Boost NPU -Equipped with a built-in Intel® AI Boost NPU, the Cubi NUC AI Series provides users with an AI-ready PC experience

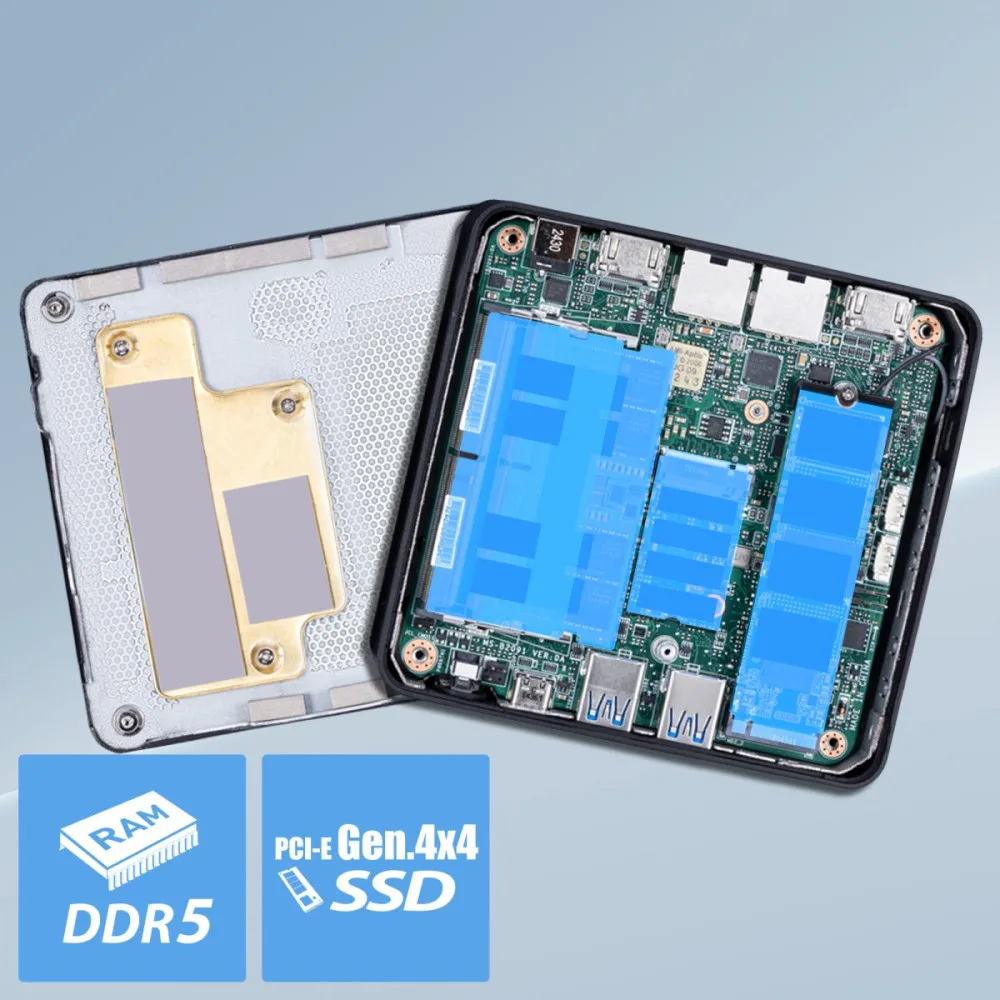

RAM capacity: The Cubi NUC AI Series can support DDR5 5200MHz memory (2 x SO-DIMM, up to 64GB).
The rear I/O panels include two Thunderbolt 4, two HDMI 2.1 outputs, which support quadruple monitor setups for improved workflow efficiency or previewing e-commerce content
Network connectivity includes Intel wireless, Bluetooth, and dual 2.5G ethernet LAN
dTPM 2.0 (discrete Trusted Platform Module) hardware technology provides security for storing sensitive data & passwords
Kensington Lock slot included
The MSI Power Link allows the power button of MSI-selected monitors to turn on the Cubi NUC AI Series

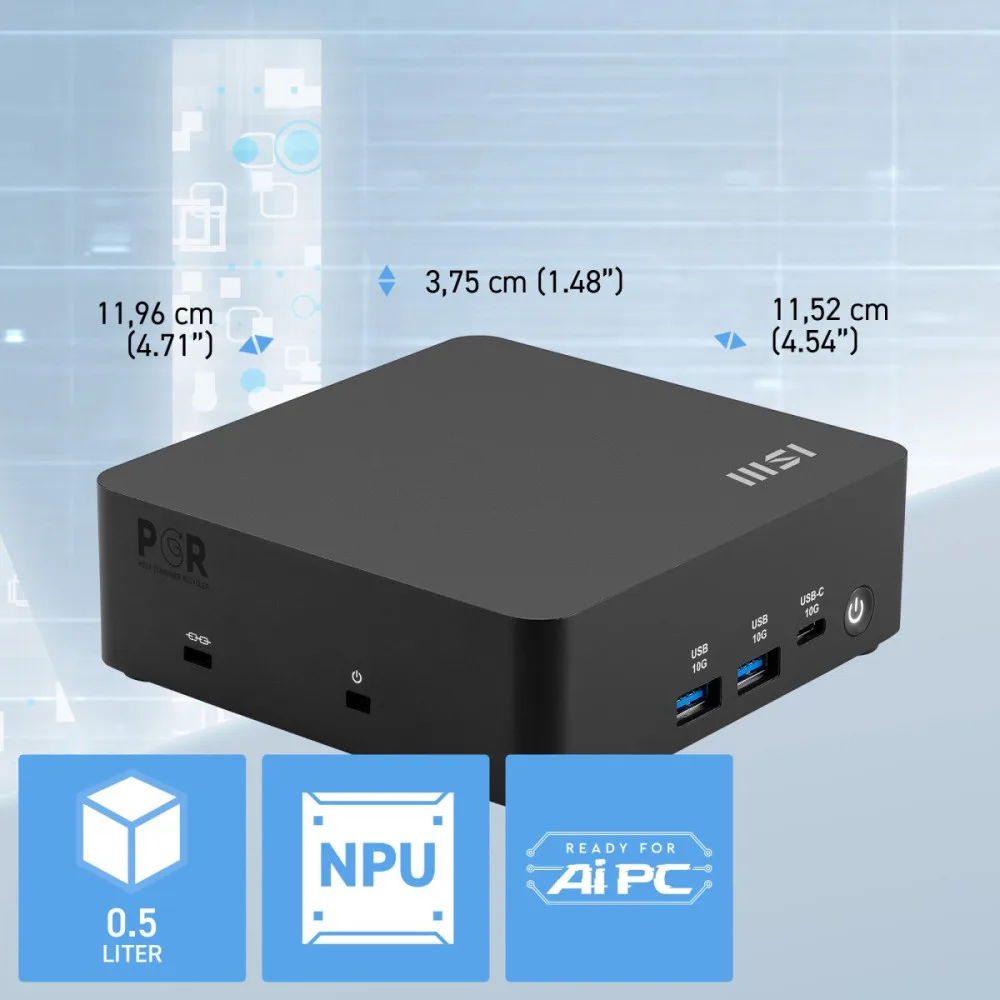

The chassis is VESA-mountable (standard 100x100 & 75x75), which can transform a standard compact desktop layout into an ultra-minimalist, distraction-free environment
The front 1 x USB 10Gbps Type C and 2 x Type A ensure that plugging in and transferring data between devices is quick and hassle-free
The two rear Thunderbolt 4 ports support the display and power delivery output of 15W
Made with PCR (Post-consumer Recycled) plastic materials
Reduce waste by using a recycled molded pulp tray packing design
Manufatured with 99% of renewable energy in factory
MSI AI Engine offers multiple optimizations that can help lighten the workload
Power Meter enables one-click power saving, carbon emission calculation & electricity cost estimation
- Up to Intel® CoreTM Ultra 5 processor 125H with Intel® AI Boost NPU
- Supports DDR5 5200MHz memory
- Supports 1x M.2 2280 SSD (PCIE, factory pre-installed), 1x M.2 2242 SSD (PCIE)
- Quadruple monitor support (Thunderbolt 4, HDMI 2.1)
- 1 x USB 10GbpsType-C port front, 2 x USB 10GbpsType-A ports front
- MSI Power Link support
- MSI Power Meter software
- Dual 2.5G LAN, Wi-fi 6E AX211 & BT 5.3
Specifications
| Built-in speaker(s) | No |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| PSTI certified | No |
| Product type | Mini PC barebone |
| Chassis type | Cube |
| Cooling type | Passive |
| Number of storage drives supported | 2 |
| Introduction year | 2025 |
| Intel® vPro™ Platform Eligibility | No |
| Display included | No |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Number of M.2 (M) slots | 2 |
| Product colour | Black |
| Country of origin | China |
| ECC | No |
| Motherboard form factor | NUC |
| Storage drive interface | PCI Express |
| Export Control Classification Number (ECCN) | 5A992.C |
| Memory slots type | SO-DIMM |
| Memory channels | Dual-channel |
| Supported memory types | GDDR5 |
| Number of memory slots | 2 |
| Supported memory clock speeds | 5200 MHz |
| Non-ECC | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Near Field Communication (NFC) | No |
| LAN controller | Intel I226-V |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 90% |
| Power supply type | External AC adapter |
| Warranty period | 3 year(s) |
| On/off switch | Yes |
| Introduction month | June |
| AC adapter included | No |
| Keyboard included | No |
| Quick start guide | No |
| Drivers included | No |
| Mouse included | No |
| Power cord included | Yes |
| Package width | 205 mm |
| Package depth | 220 mm |
| Package height | 94 mm |
| Maximum internal memory | 64 GB |
| Built-in processor | Yes |
| Supported processor frequency (max) | 4.5 GHz |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 4 ports quantity | 2 |
| Thunderbolt ports quantity | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply | 120 W |
| DC-in jack | No |
| Number of power supply units | 1 |
| Processor family | Intel Core Ultra 5 |
| Processor model | 125H |
| Processor frequency | 1.2 GHz |
| Processor cores | 14 |
| Processor manufacturer | Intel |
| Processor threads | 18 |
| Processor boost frequency | 4.5 GHz |
| Performance cores | 4 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 4.5 GHz |
| Performance-core base frequency | 1.2 GHz |
| Low Power Efficient-core Base Frequency | 800 MHz |
Specifications provided by the manufacturer via Icecat.
