TP-Link

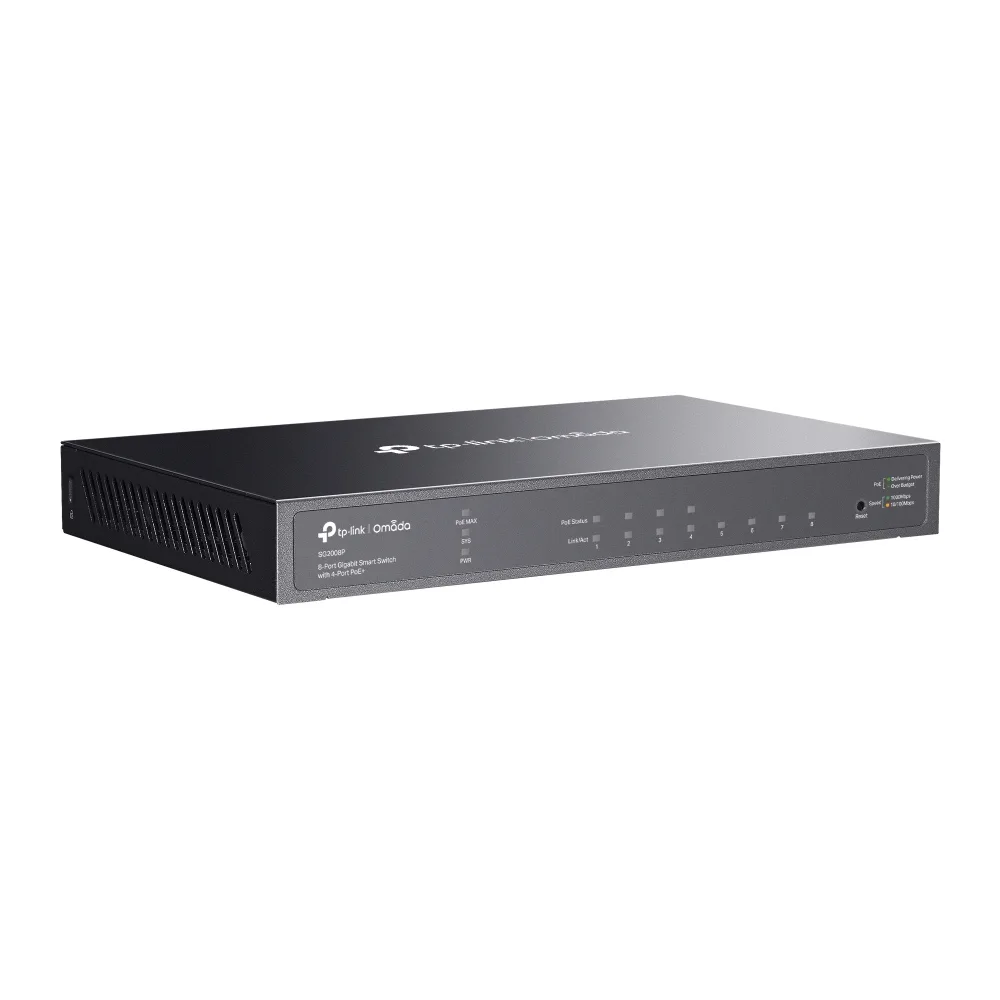

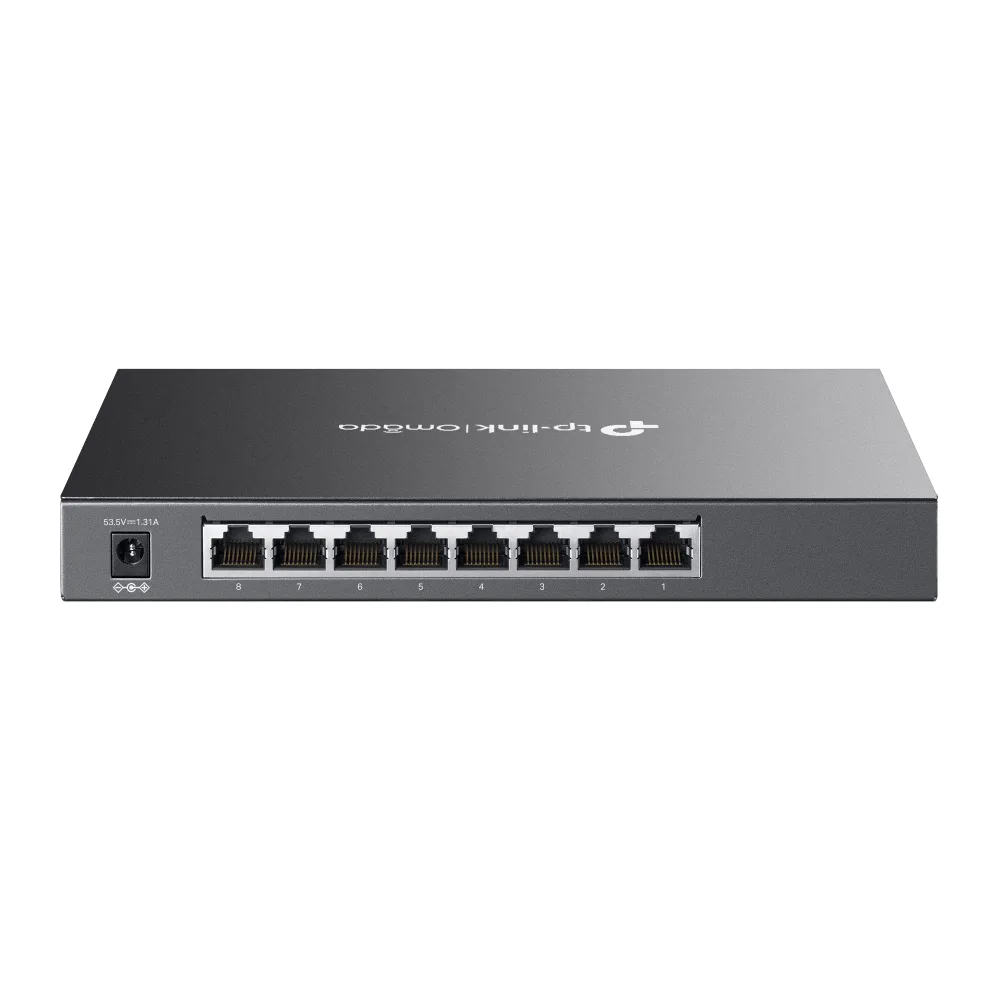

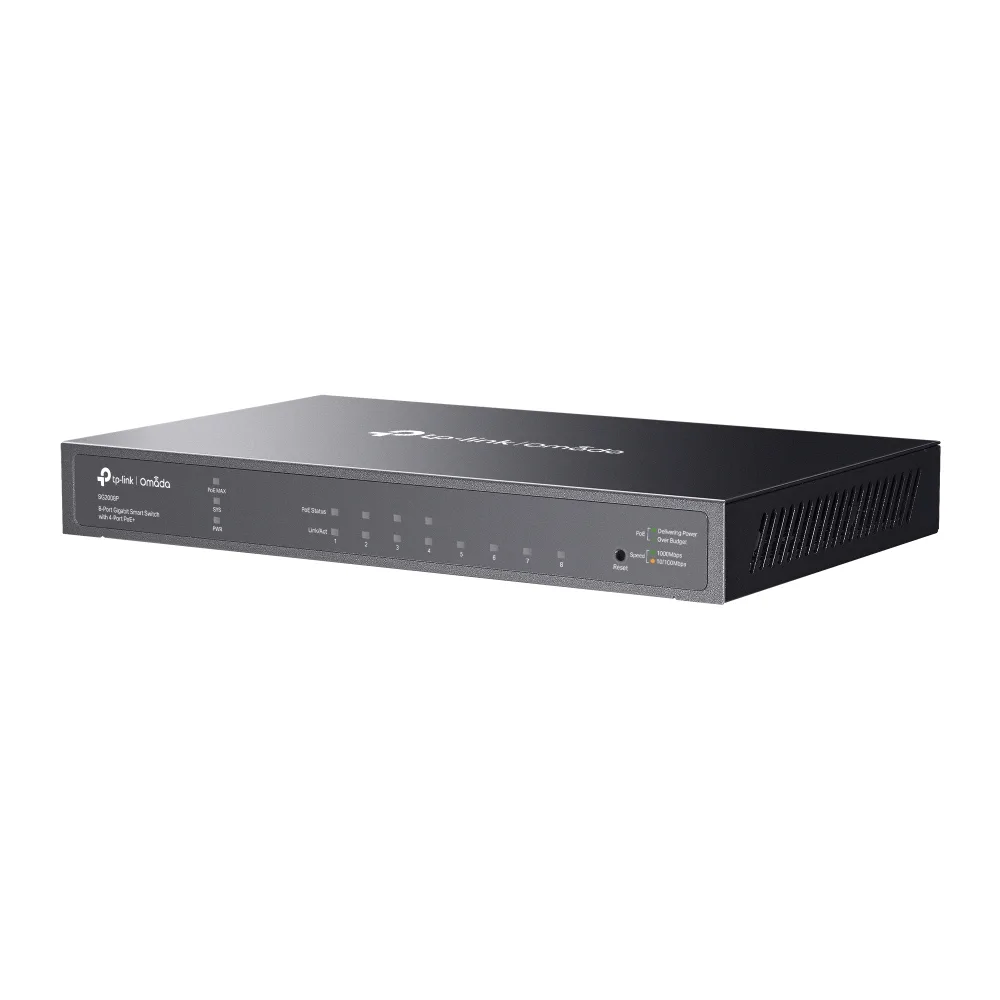

TP-Link SG2008P 8-PORT Switch
In stock - ready to ship
Estimated delivery Tuesday 29 SeptemberDispatched within 24 hours by DPD
£87.99
- £87.99 ex VAT
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
- 8× Gigabit ports (4× 802.3at/af-compliant PoE+ ports)
- 62 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Specifications
| Certification | CE, FCC, RoHS |
| MAC address table | 8000 entries |
| Packet buffer memory | 4.1 MB |
| Forwarding rate | 11.9 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Switching capacity | 16 Gbit/s |
| Number of queues | 8 |
| LED indicators | Yes |
| Rack mounting | Yes |
| Product colour | Black |
| Quality of Service (QoS) support | Yes |
| Heat dissipation | 263.6 BTU/h |
| Rate limiting | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Switch layer | L2/L2+ |
| MIB support | MIB II (RFC1213) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIBs RMON MIB(RFC1757, rmon 1,2,3,9) |
| ARP inspection | Yes |
| Multicast support | Yes |
| Security algorithms | 802.1x RADIUS |
| Management protocols | SNMPv1/v2c/v3 |
| 10G support | No |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Flow control support | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Manual | Yes |
| Package type | Box |
| Fanless | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power consumption (max) | 77.3 W |
| Power over Ethernet (PoE) | Yes |
| Power supply included | Yes |
| IPv4 & IPv6 features | IPv6 Telnet, IPv6 ping, IPv6 tracert |
| System event log | Yes |
| MAC address filtering | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP snooping, DHCPv6 server, DHCPv6 snooping |
| Authentication | MAC-based authentication, Web-based authentication |
| Authentication type | RADIUS |
| Width | 209 mm |
| Depth | 126 mm |
| Height | 26 mm |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| IGMP snooping | Yes |
Specifications provided by the manufacturer via Icecat.
