TP-Link

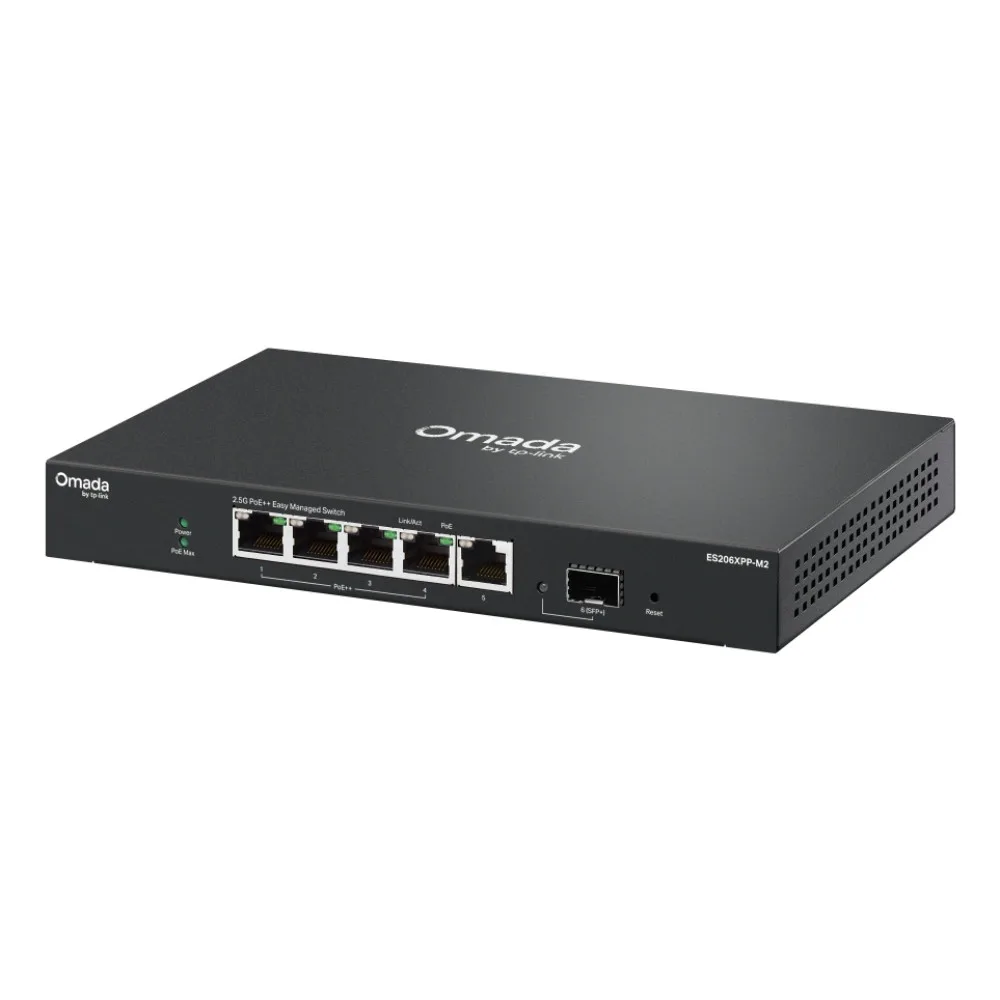

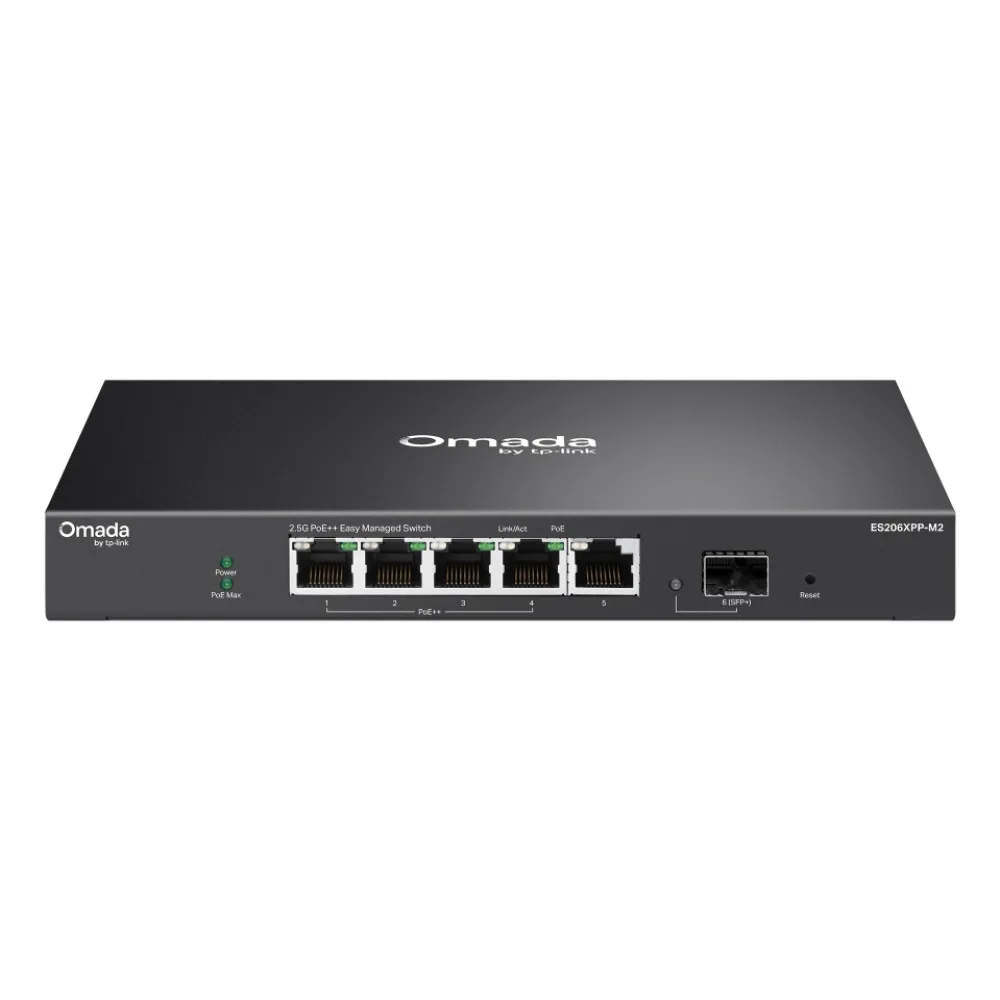

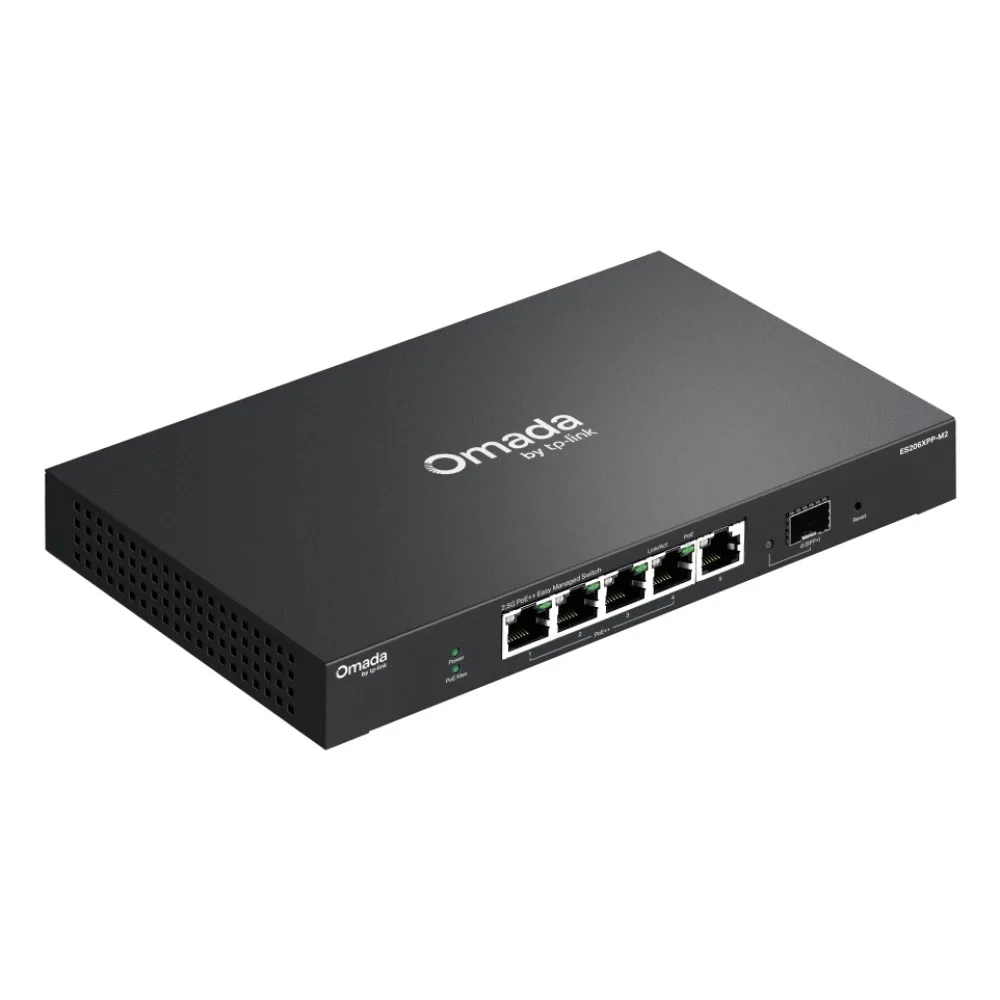

TP-Link ES206XPP-M2 Switch
In stock - ready to ship
Estimated delivery Wednesday 30 SeptemberDispatched within 24 hours by DPD
£120.99
- £120.99 ex VAT
Power over Ethernet, Flexible Network Deployment
Transmit both data and power via a single cable to other PoE++ devices, without the hassle and cost of installing power cabling. Automatically detect and supply the required power to PoE-enabled devices.
Works with Omada Central Essentials for Free and Easy Cloud Management
Omada Central Essentials provides free and easy-to-use centralized cloud management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for small businesses and home office.
- 5× 2.5 Gbps RJ45 ports (4× 802.3af/at/bt-compliant PoE++)
- 1× 10 Gbps SFP+ slot
- 120W PoE budget, with up to 90W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Automatic Loop Prevention, VLAN, Port Isolation, QoS, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Specifications
| Certification | CE, FCC, RoHS |
| MAC address table | 16000 entries |
| Packet buffer memory | 0.64 MB |
| Forwarding rate | 33.48 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 10 |
| Switching capacity | 45 Gbit/s |
| Store-and-forward | Yes |
| Form factor | Desktop/Wall-Mounting |
| LED indicators | Yes |
| Product colour | Black |
| Flash memory | 64 MB |
| Quality of Service (QoS) support | Yes |
| Switch type | Managed |
| Switch layer | L2 |
| 10G support | No |
| Port mirroring | Yes |
| VLAN support | Yes |
| Flow control support | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Operating temperature (T-T) | -5 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Firmware upgradeable | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| SFP+ module slots quantity | 1 |
| AC input voltage | 100 - 240 V |
| Power source | AC/PoE |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 90 W |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 4 |
| Power supply included | Yes |
| DHCP features | DHCP client |
| Width | 209 mm |
| Depth | 126 mm |
| Height | 26 mm |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab |
| IGMP snooping | Yes |
Specifications provided by the manufacturer via Icecat.
