TP-Link

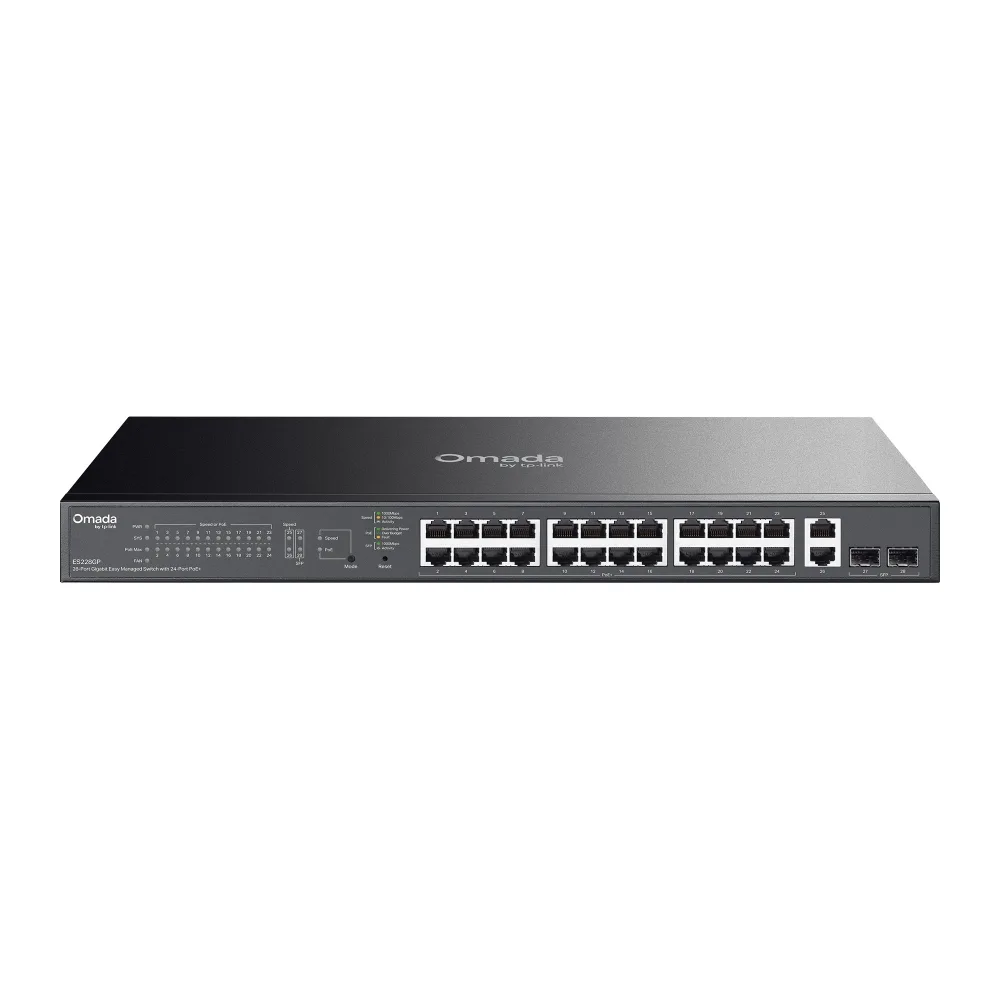

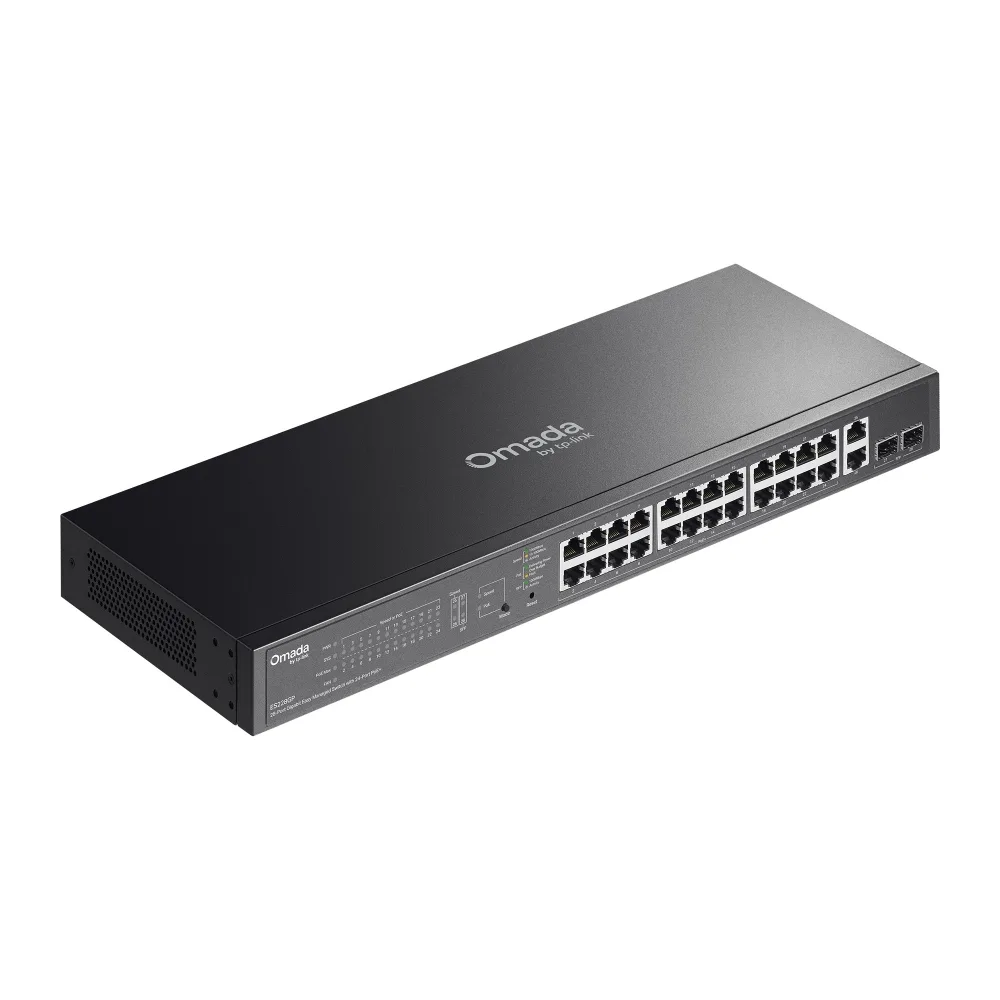

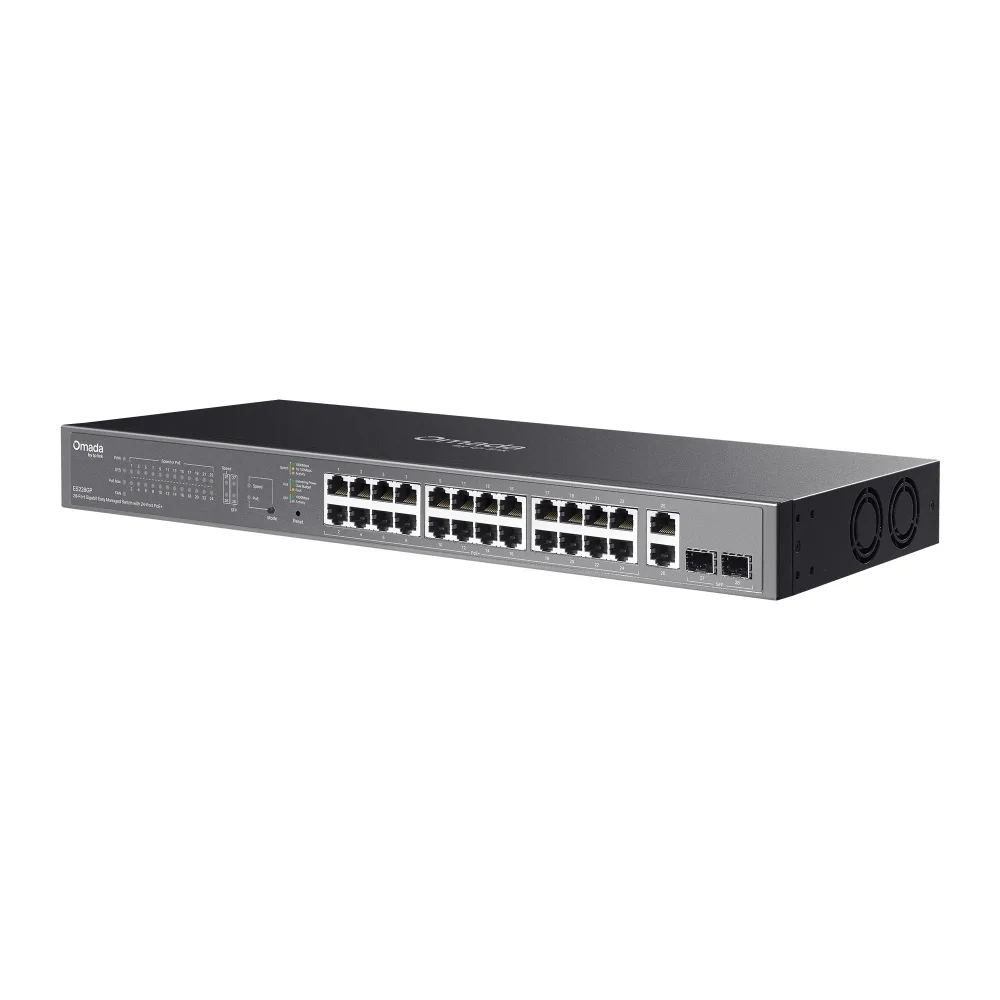

TP-Link ES228GP 28-PORT Switch GB
In stock (2 left) - ready to ship
Estimated delivery Tuesday 29 SeptemberDispatched within 24 hours by DPD
£211.99
- £211.99 ex VAT
Omada Central Essentials — A Free and Easy Cloud-Based Network Management
Omada Central Essentials is a free, easy-to-use version of the Omada Central.
It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
Specifications
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| MAC address table | 8000 entries |
| Packet buffer memory | 4 MB |
| Forwarding rate | 41.67 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 15000 |
| Switching capacity | 56 Gbit/s |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Number of fans | 2 fan(s) |
| Rack mounting | Yes |
| Product colour | Black |
| Quality of Service (QoS) support | Yes |
| Power protection features | Surge protection |
| Switch type | Managed |
| Web-based management | Yes |
| Switch layer | L2 |
| Port mirroring | Yes |
| VLAN support | Yes |
| Flow control support | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Input current | 4 A |
| Cables included | AC |
| Manual | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 250 W |
| Loop protection | Yes |
| DHCP features | DHCP client |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| IGMP snooping | Yes |
Specifications provided by the manufacturer via Icecat.
