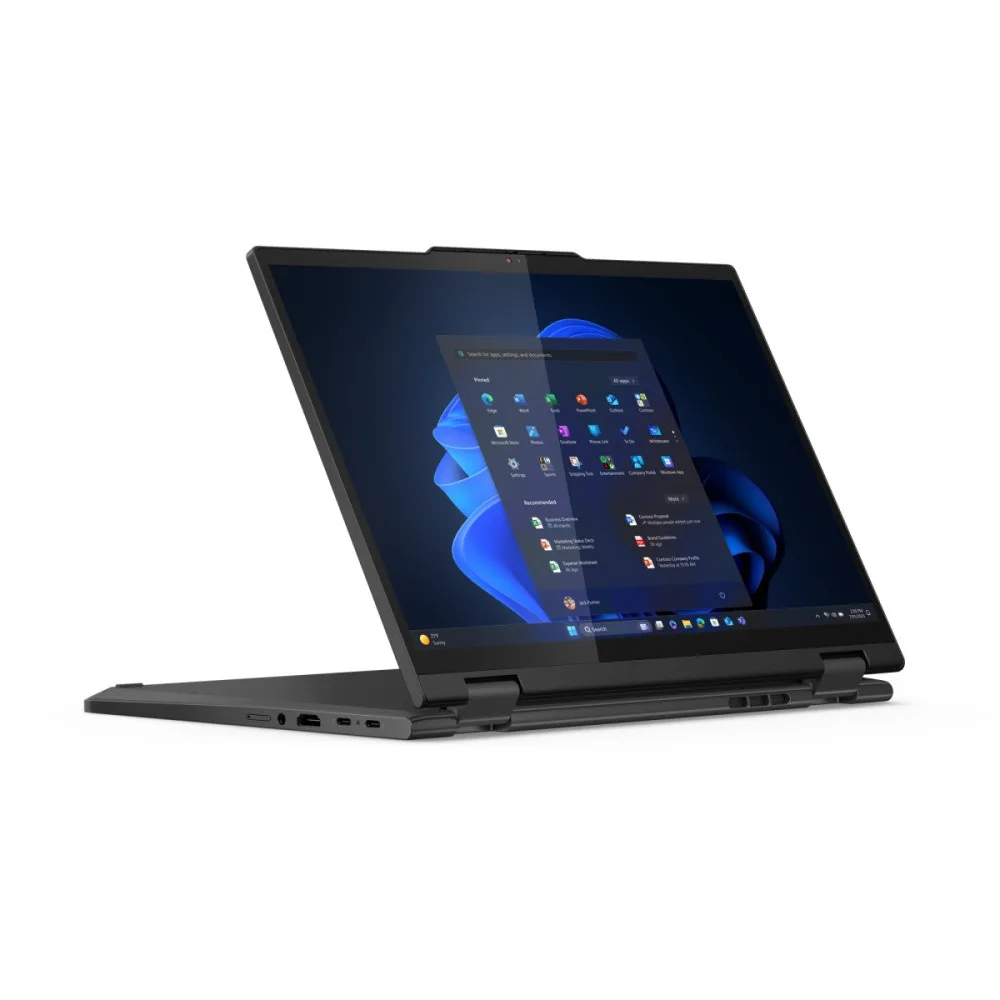

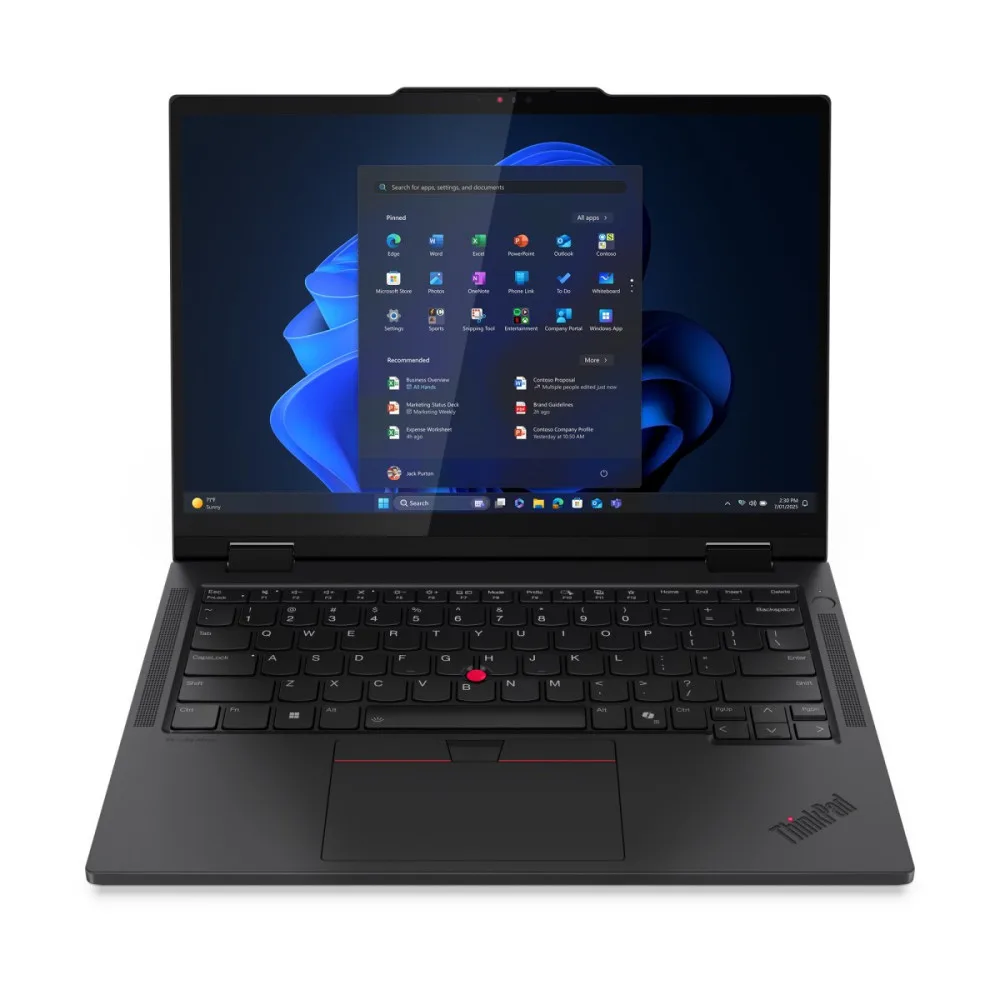

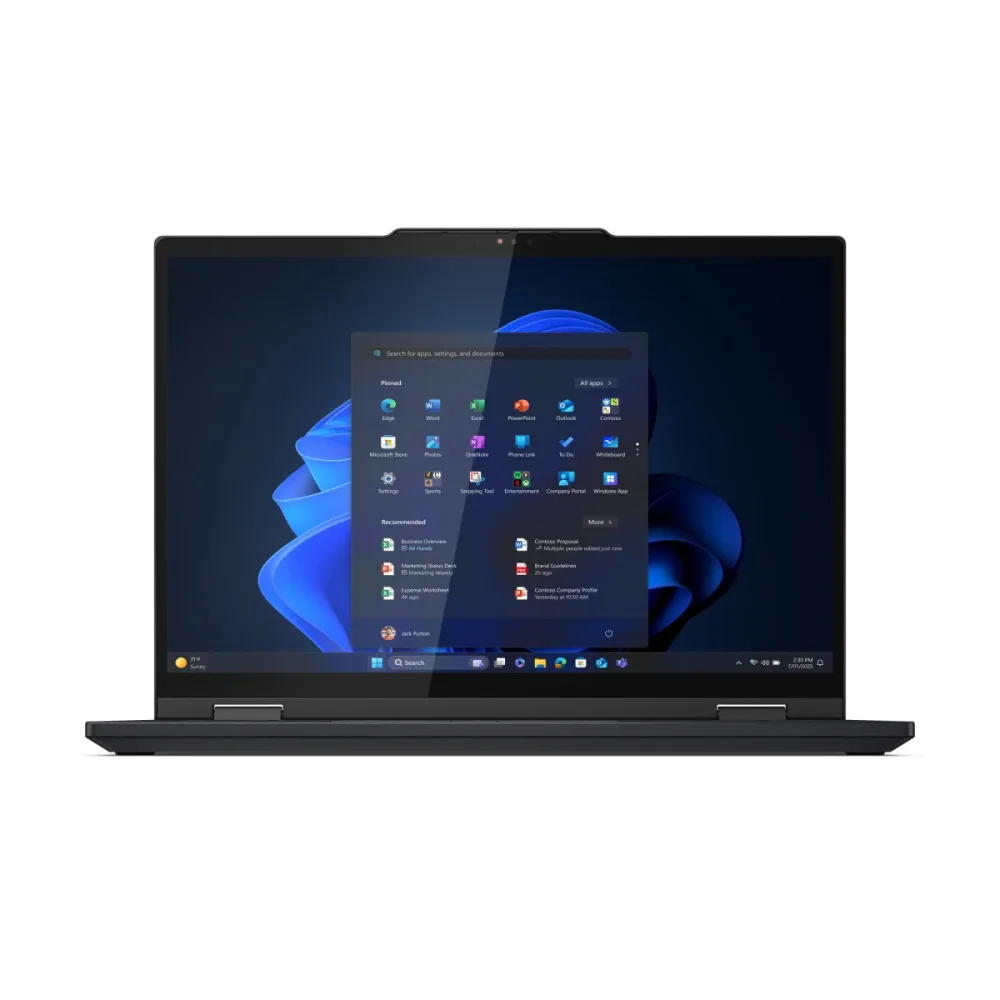

T14S G1 U7255U 16/512g 11P Box Dam
- Manufacturer: Lenovo
- Part number: 21R3001TUK
Specifications
Design| Product type | Hybrid (2-in-1) |
| Product colour | Black |
| Form factor | Convertible (Folder) |
| Housing material | Aluminium |
Display| Display diagonal | 35.6 cm (14") |
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | Yes |
| HD type | WUXGA |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Display brightness | 500 cd/m² |
| RGB colour space | sRGB |
| Colour gamut | 100% |
Processor| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 255U |
| Processor cores | 12 |
| Processor threads | 14 |
| Processor boost frequency | 5.2 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 5.2 GHz |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.4 GHz |
| Performance-core base frequency | 2 GHz |
| Efficient-core base frequency | 1.7 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Processor cache | 12 MB |
| Processor base power | 15 W |
| Maximum turbo power | 57 W |
Neural processor unit (NPU)| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
Memory| Internal memory | 16 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Memory clock speed | 7467 MHz |
| Memory form factor | On-board |
| Maximum internal memory | 16 GB |
Storage| Total storage capacity | 512 GB |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | No |
Graphics| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| Discrete graphics card | No |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card model | Intel® Graphics |
Audio| Audio chip | Realtek ALC3287 |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
Camera| Front camera resolution (numeric) | 5 MP |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Mobile network connection | No |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | No |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Near Field Communication (NFC) | No |
| WWAN | Upgradable |
Ports & interfaces| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Sleep-and-Charge | Yes |
Performance| Motherboard chipset | Intel SoC |
Keyboard| Pointing device | ThinkPad UltraNav |
| Numeric keypad | No |
| Keyboard backlit | Yes |
| Keyboard language | English |
Software| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
Battery| Battery capacity | 58 Wh |
Power| AC adapter power | 65 W |
| USB Type-C charging port | Yes |
| USB Power Delivery (USB PD) | Yes |
Security| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Smart card reader | Yes |
| Windows Hello | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Certificates| Certification | ENERGY STAR,TCO,EPEAT Gold,RoHS |
Weight & dimensions| Width | 313.6 mm |
| Depth | 222.8 mm |
| Height (front) | 1.29 cm |
| Height (rear) | 1.92 cm |
| Weight | 1.4 kg |
Packaging content| AC adapter included | Yes |
Specifications provided by the manufacturer via Icecat.
