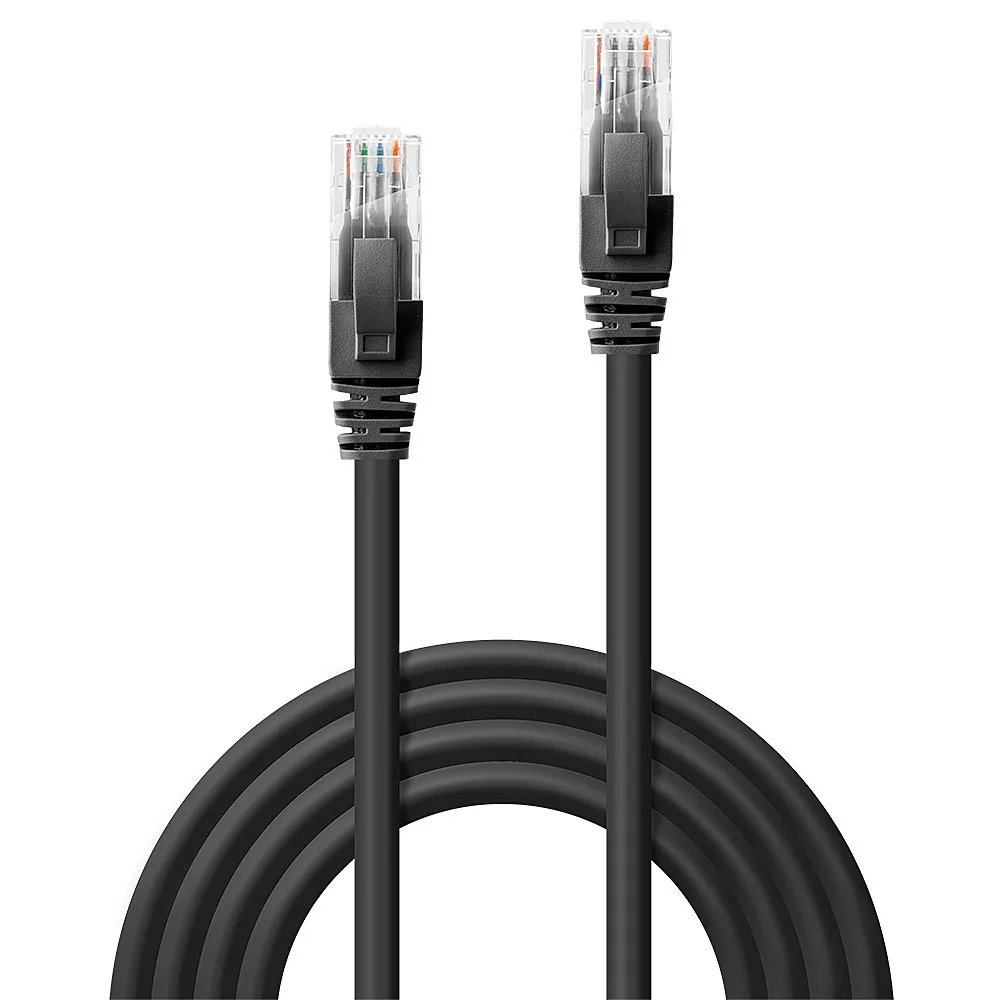

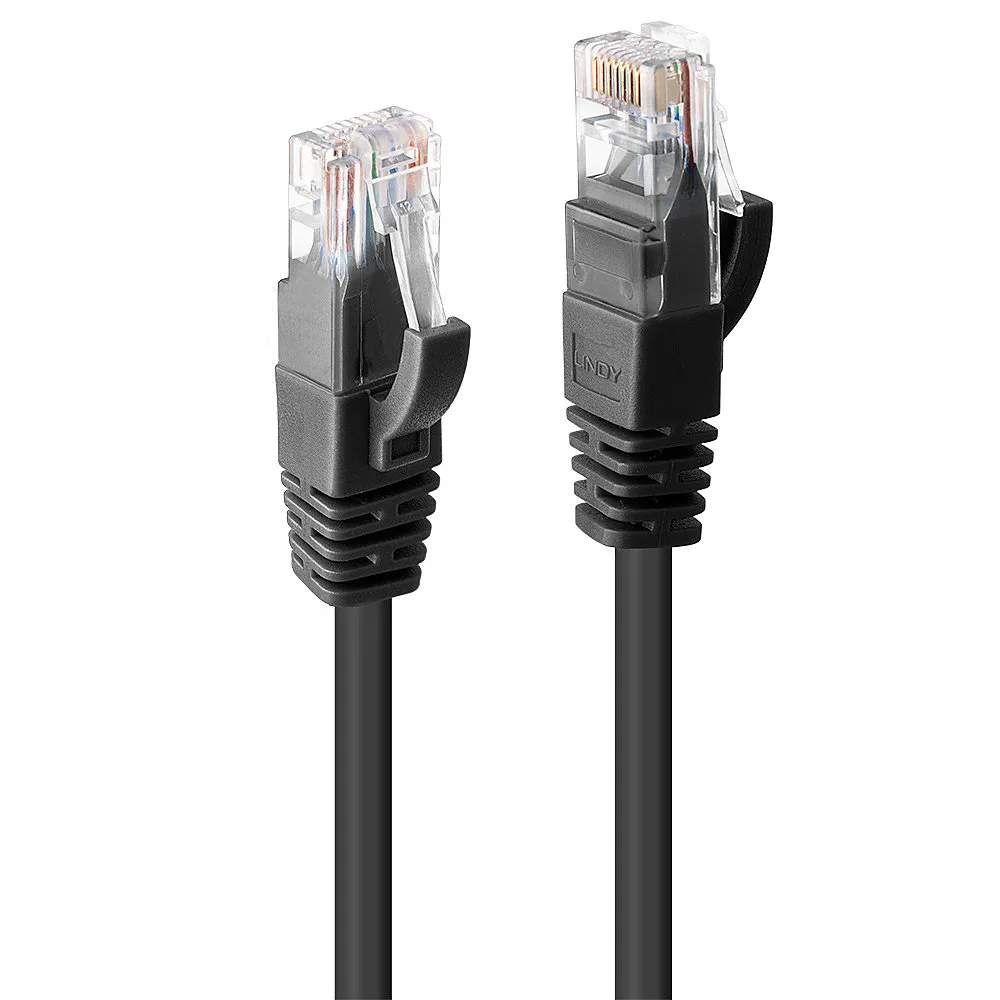

Lindy 2m CAT.6 U Utp Cable Black
£4.99
- £4.99 ex VAT
Cat.6 U/UTP PVC network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.
Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Blue, Red, Green, Yellow, Black, White, Orange, Purple, Grey.
- Twisted Pair Patch Cable with RJ45 connectors
- Cat.6 U/UTP, PVC
- Integrated snagless connector for latch protection
- Gold plated pins for better conductivity and elimination of signal loss
Specifications
| Certification | RoHS, REACH, UL, California Proposition 65 |
| Cable length | 2 m |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Connector contacts plating | Gold |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector shielding | Yes |
| Cable standard | Cat6 |
| Cable shielding | U/UTP (UTP) |
| Frequency | 250 MHz |
| Snagless cable boot | Yes |
| Cable shape | Round |
| Conductor material | Copper |
| Connector housing material | Polycarbonate (PC) |
| AWG wire size | 24 |
| Bend radius (min) | 6.9 cm |
| Connector shield material | Aluminium |
| Nominal attenuation | 32.8dB/100m @250MHz |
| Harmonized System (HS) code | 84733080 |
| Data transfer rate | 1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 75 °C |
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Connector 1 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Connector 2 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Outer diameter | 5.8 mm |
Specifications provided by the manufacturer via Icecat.
