MSI Cubi 5 12m I7 1255U BB
£423.99
- £423.99 ex VAT

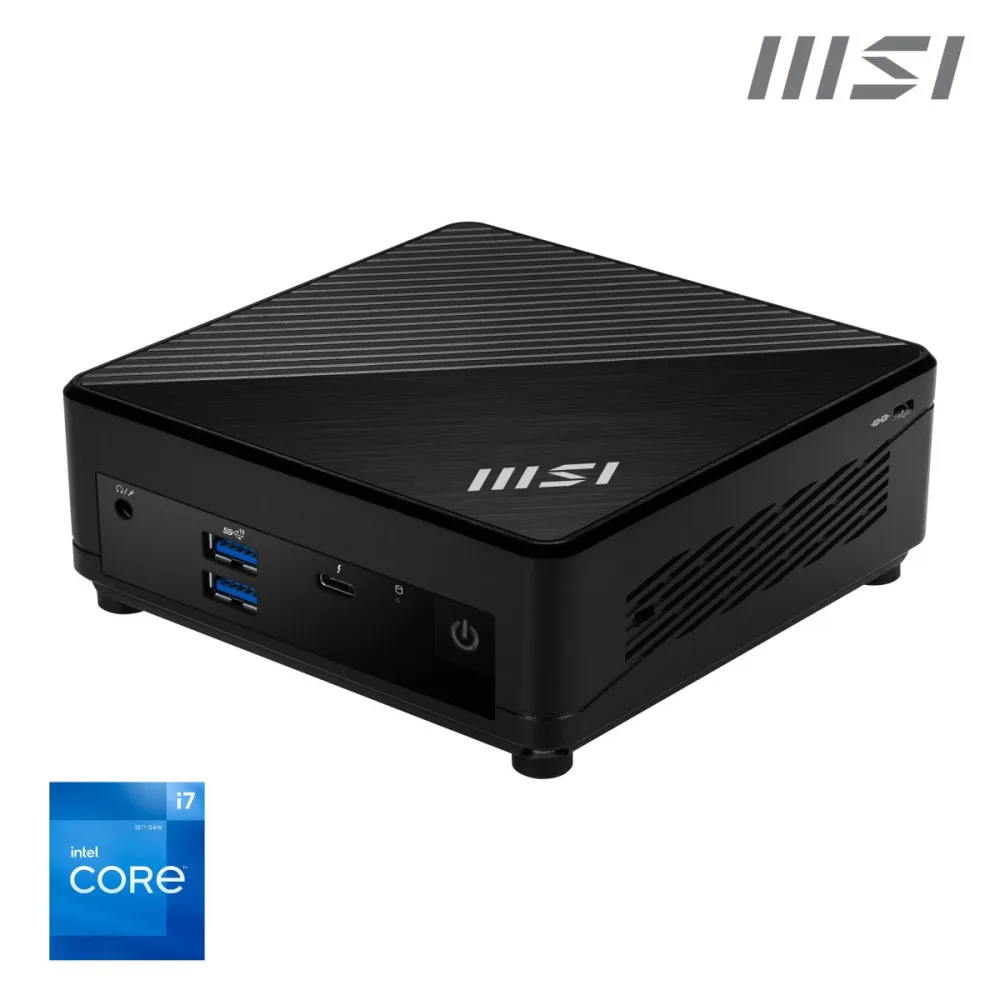

"Cubi 5 12M: The Energy Efficient Mini-PC
The MSI Cubi 5 12M is a small yet powerful mini-desktop with an incredibly compact 0.7L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & triple-monitor setups).
The Cubi 5 12M i7 1255U BB is a barebone system equipped with an Intel 12th Gen Core i7-1255U processor, but does not include required DDR4 memory, storage, or software. Features Intel Wi-Fi 6E & Bluetooth 5.3 connectivity.
The easy-to-upgrade SFF case can house both M.2 (with auto switch) & 2.5-inch SSD storage, as well as up to 64 GB of system memory (2 x DDR4 3200MHz SO-DIMMs), and is VESA-mountable for a cleaner desktop.
Thanks to its cooling-optimized layout and low-noise fan, the MSI Cubi 5 12M is not only an energy-efficient computing solution but is also very quiet, running at a whisper-level 28 dBA while in idle mode.

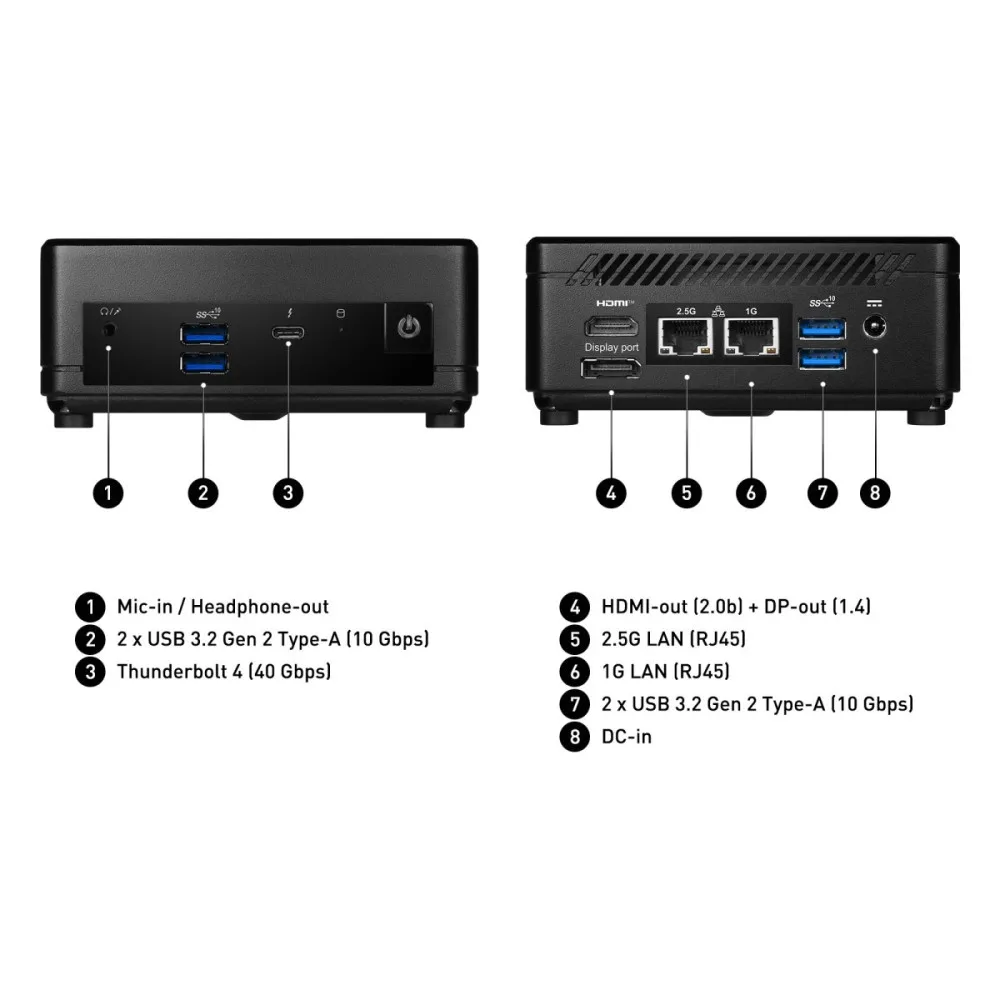

Front & rear I/O include dual Intel 2.5Gbps and 1Gbps ethernet LAN, Mic-in, Headphones-out, Thunderbolt 4 and 4 x USB 3.2 Gen 2 Type-A ports."
- Up to 12th Gen Intel® Core™ i7 Processors
- Support up to 8K UHD Display
- Support three displays that allow you to see more and do more
- Thunderbolt 4 delivers the fastest, most versatile connection to any dock, display, or data device & NAS
- Dual LAN: the best way to back up your file / secure data and prevent the hacker (with MSI exclusive BIOS)
- Get all the performance benefits from USB 3.2 Gen 2 and enjoy the best data transmission experience
- Experience 75% lower latency with WiFi 6E technology(optional)
- FW TPM design secures your confidential data with encryption keys
- Supports standard VESA-mount
Specifications
| Built-in speaker(s) | No |
| Certification | FCC, CB/CE, UL & CUL, VCCI, RCM |
| LED indicators | Yes |
| Product type | Mini PC barebone |
| Chassis type | 0.66L sized PC |
| Cooling type | Active |
| Number of storage drives supported | 2 |
| Display included | No |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Number of M.2 (M) slots | 1 |
| Product colour | Black |
| Country of origin | China |
| Motherboard form factor | NUC |
| On-board graphics card | Yes |
| On-board graphics card model | Intel Iris Xe Graphics |
| Graphics card family | Intel |
| Storage drive interface | M.2, Serial ATA III |
| Memory slots type | SO-DIMM |
| Memory channels | Dual-channel |
| Number of memory slots | 2 |
| Supported memory clock speeds | 3200 MHz |
| Number of displays supported | 3 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| LAN controller | Realtek RTL8111H, Realtek RTL8125-BG, Realtek RTL8125-CG |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 90% |
| Power supply type | External AC adapter |
| Warranty period | 2 year(s) |
| On/off switch | Yes |
| AC adapter included | Yes |
| Keyboard included | No |
| Quick start guide | Yes |
| Drivers included | Yes |
| Mouse included | No |
| Power cord included | Yes |
| Package width | 221 mm |
| Package depth | 506 mm |
| Package height | 469 mm |
| Package weight | 1.33 kg |
| Maximum internal memory | 64 GB |
| Built-in processor | Yes |
| Motherboard chipset | Intel SoC |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| DVI port | No |
| Thunderbolt 4 ports quantity | 1 |
| Power supply | 65 W |
| DC-in jack | Yes |
| Number of power supply units | 1 |
| Processor family | Intel® Core™ i7 |
| Processor model | i7-1255U |
| Processor cores | 10 |
| Processor manufacturer | Intel |
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor threads | 12 |
| Processor boost frequency | 4.7 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Processor cache | 12 MB |
| Efficient-core boost frequency | 3.5 GHz |
| Performance-core boost frequency | 4.7 GHz |
| Thermal Design Power (TDP) | 15 W |
| Processor lithography | 14 nm |
| Number of processors supported | 1 |
| Operating system installed | No |
Specifications provided by the manufacturer via Icecat.
