StarTech.com 1 Port Pci Express Gigabit Svr Adpt
£23.99
- £23.99 ex VAT
Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot

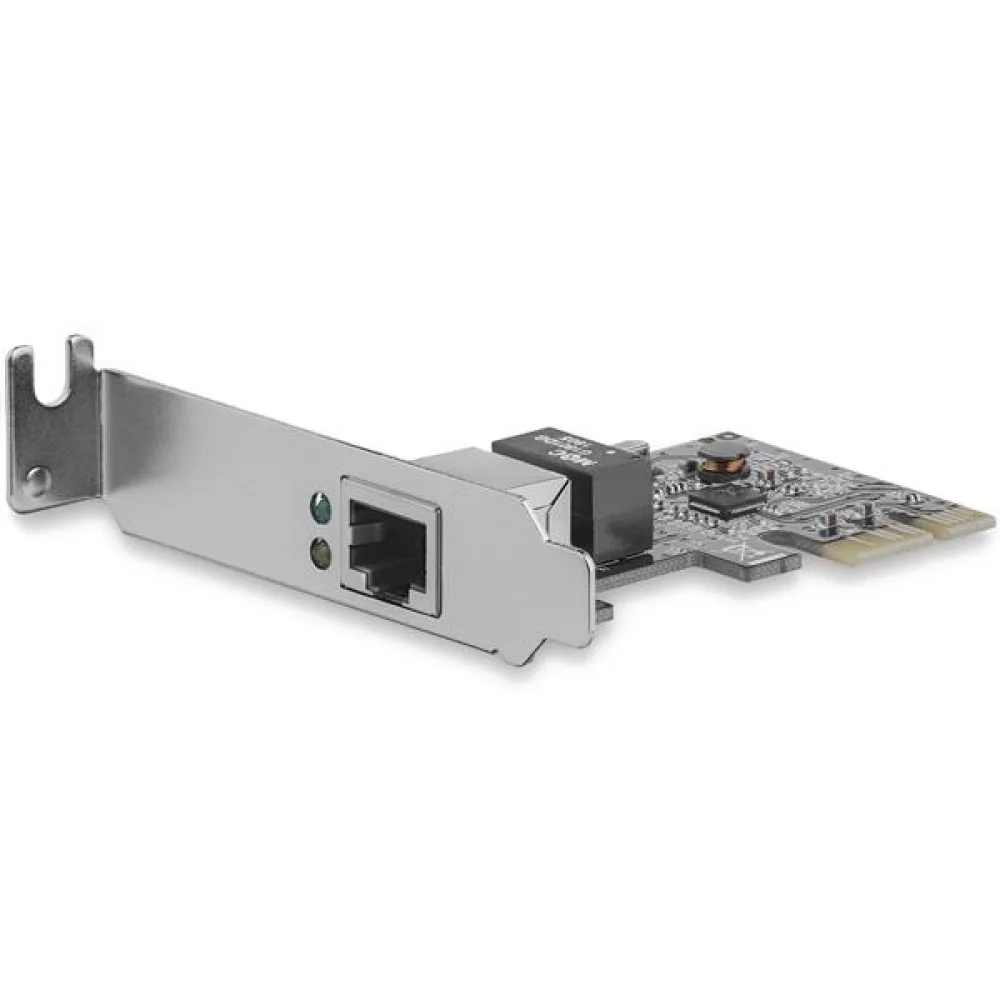

The ST1000SPEX2L Low-Profile PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter offers effective network performance.
The card comes pre-configured with a low-profile/half-height installation bracket and includes a standard profile bracket for installation in a wide range of computer/server chassis, regardless of form factor.
Backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging
- Saves the time of having to adjust the mounting bracket, with a pre-configured half-height/low-profile bracket
Specifications
| Internal | Yes |
| Compliance certificates | RoHS |
| Certification | CE, FCC, REACH |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |

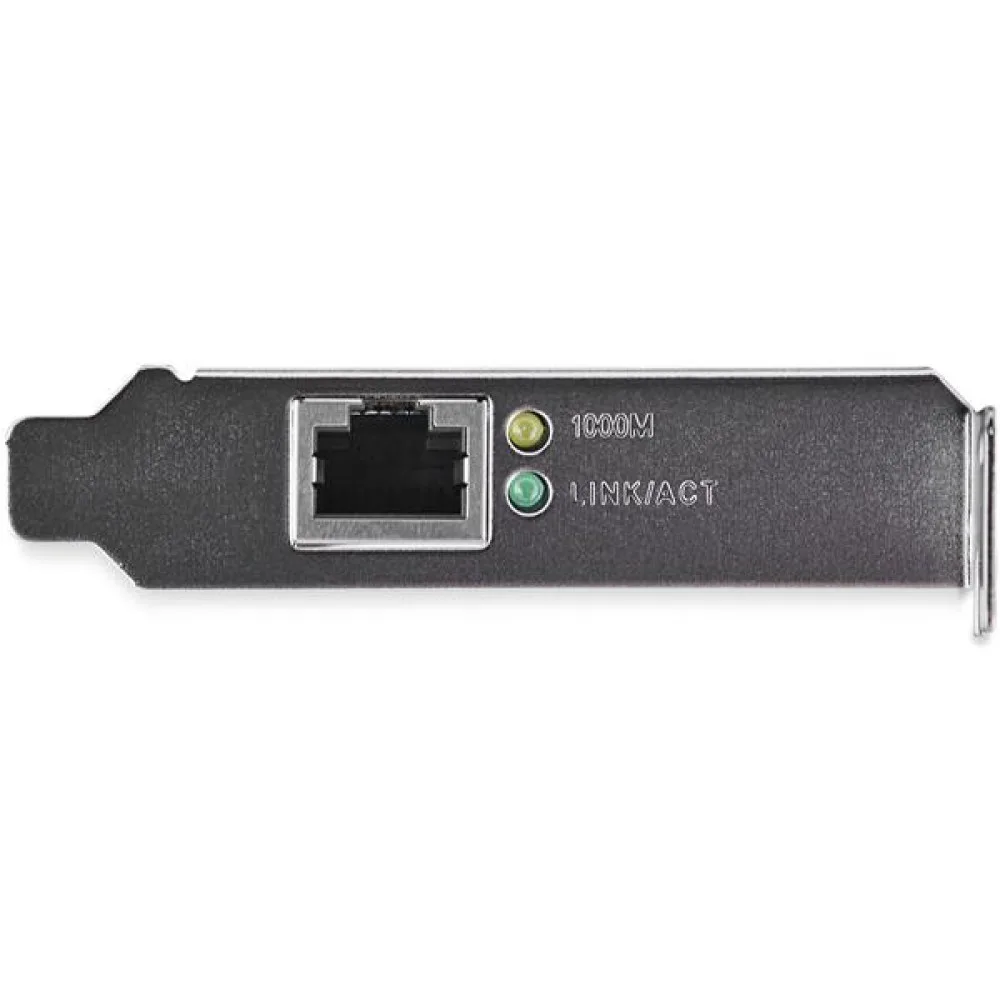

| LED indicators | Activity, Link |
| Interface | Ethernet |
| Connectivity technology | Wired |
| Harmonized System (HS) code | 85176990 |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Full duplex | Yes |
| Auto MDIX IEEE | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | 0 - 100 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Power LED | Yes |
| Chipset | Realtek - RTL8111H |
| Link/Act LED | Yes |
| Manual | Yes |
| Package width | 173 mm |
| Package depth | 144 mm |
| Package height | 31 mm |
| Package weight | 125 g |
| Host interface | PCI Express |
| Maximum data transfer rate | 1000 Mbit/s |
| Supported network protocols | CSMA/CD |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home B |
| Mac operating systems supported | Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Linux operating systems supported | Yes |
| Width | 18 mm |
| Depth | 70 mm |
| Height | 49 mm |
| Weight | 27 g |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
Specifications provided by the manufacturer via Icecat.
