StarTech.com 1PORT Pci Express Gigabit Srvr
£23.99
- £23.99 ex VAT

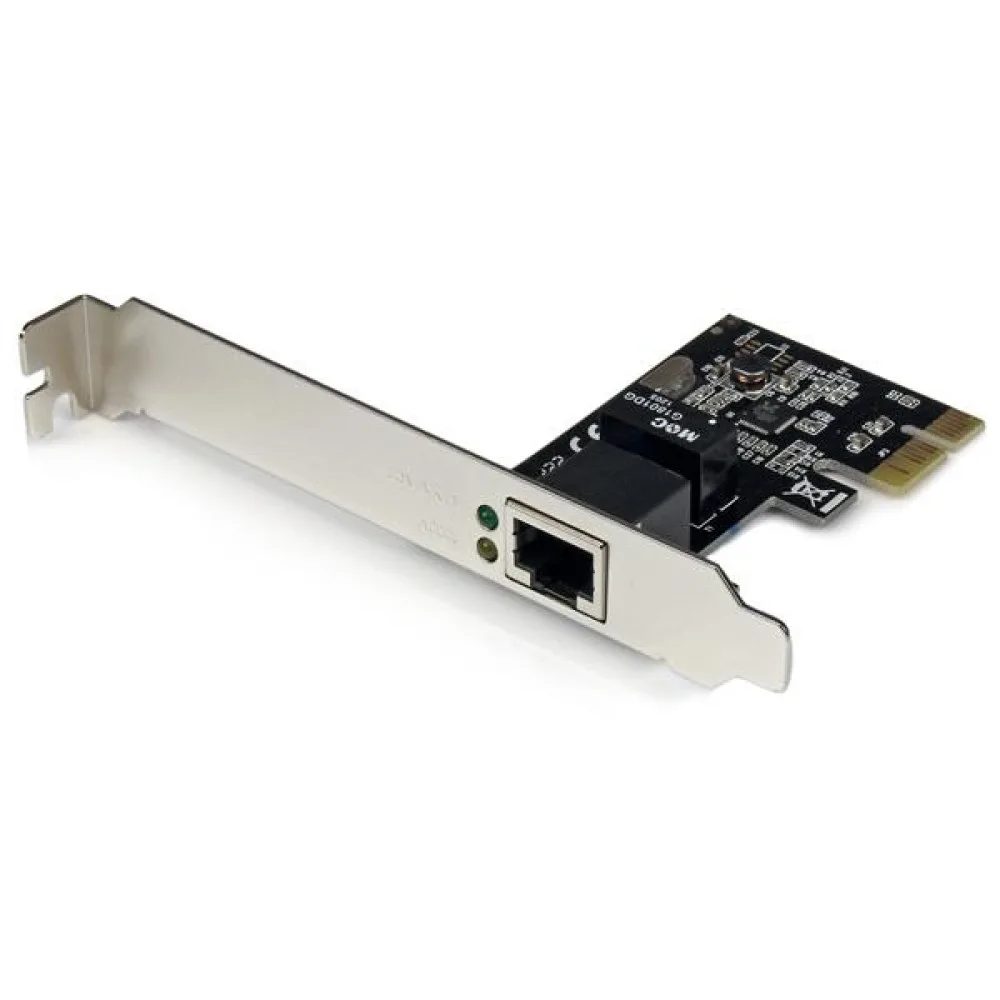

The ST1000SPEX2 PCIe Gigabit Ethernet Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter delivers rock-solid performance.
Plus, the card includes both full profile and low profile/half-height installation brackets for installation in a wide range of computer/server chassis, regardless of form factor.
The ST1000SPEX2 network card is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Fits into full-size or low profile/small form factor (SFF) systems, with the addition of a half-height bracket
- Offers performance flexibility and easy setup with support for advanced features such as Jumbo Frames, Wake-On-LAN and Auto MDIX
Specifications
| Internal | Yes |
| Compliance certificates | RoHS |
| Certification | CE, FCC |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Supported data transfer rates | 10/100/1000 Mbit/s |
| LED indicators | Activity, Link |
| Interface | Ethernet |
| Mean time between failures (MTBF) | 376212 h |
| Connectivity technology | Wired |
| Harmonized System (HS) code | 85176990 |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Full duplex | Yes |
| Auto MDIX IEEE | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | 0 - 100 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Chipset | Realtek RTL8111E |
| Drivers included | Yes |
| Manual | Yes |
| Package width | 142 mm |
| Package depth | 171 mm |
| Package height | 32 mm |
| Package weight | 126 g |
| Low-profile bracket | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Host interface | PCI Express |
| Maximum data transfer rate | 1000 Mbit/s |
| Supported network protocols | CSMA/CD |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home B |
| Mac operating systems supported | Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Linux operating systems supported | Yes |
| Width | 120.3 mm |
| Depth | 67.9 mm |
| Height | 18 mm |
| Weight | 40 g |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
Specifications provided by the manufacturer via Icecat.
