StarTech.com 2 Port PCIE Gigabit Network Card
£90.99
- £90.99 ex VAT

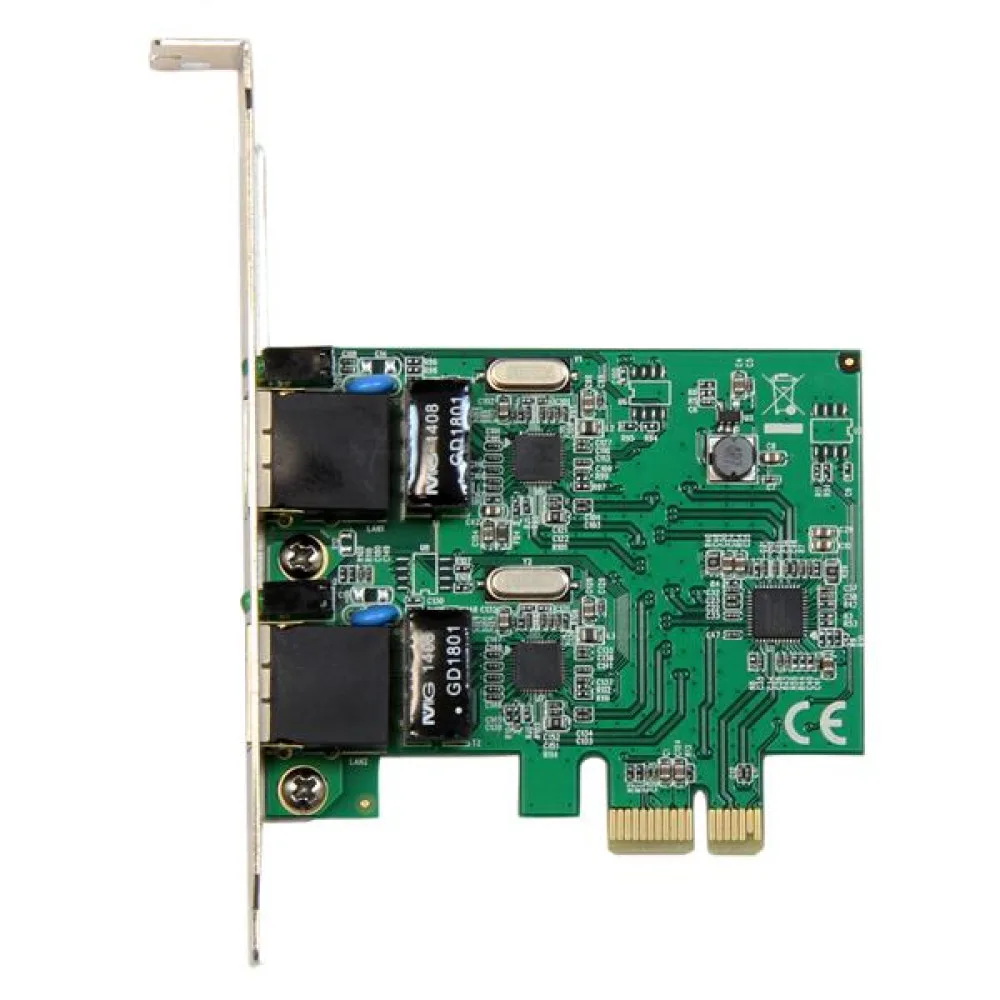

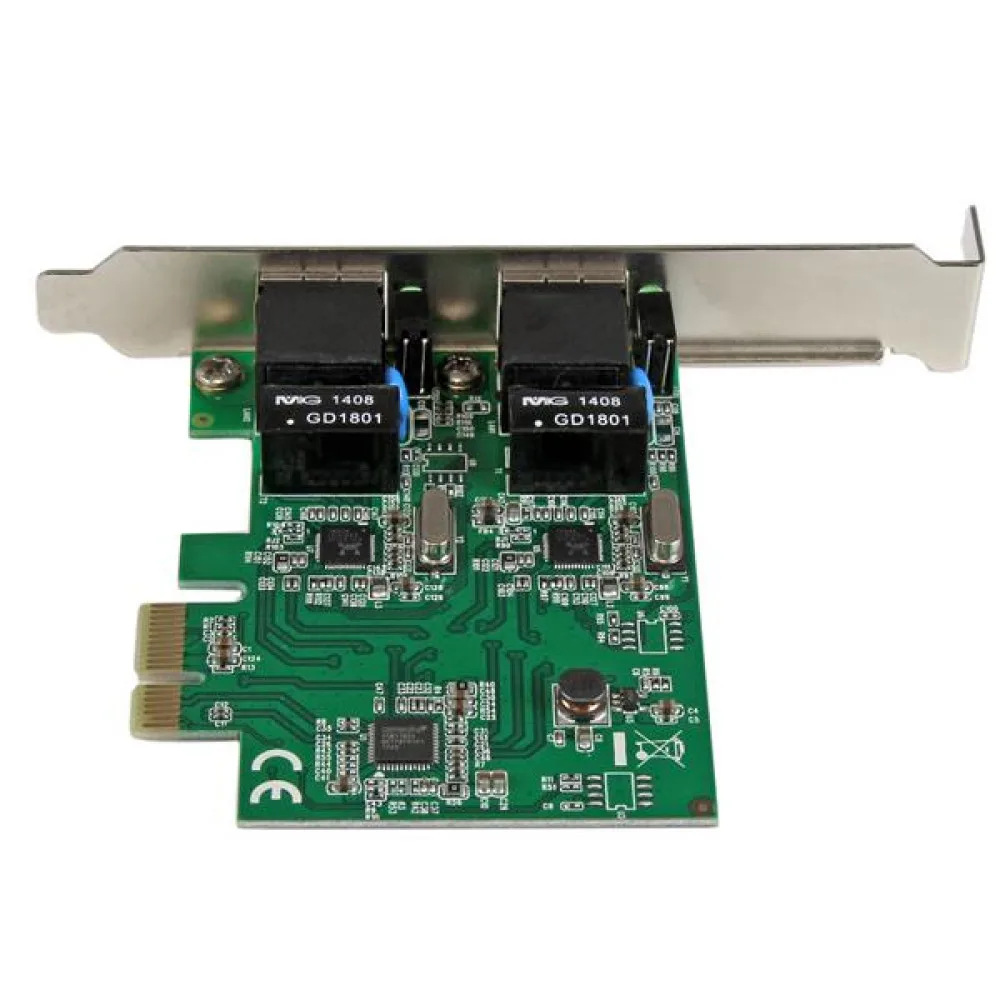

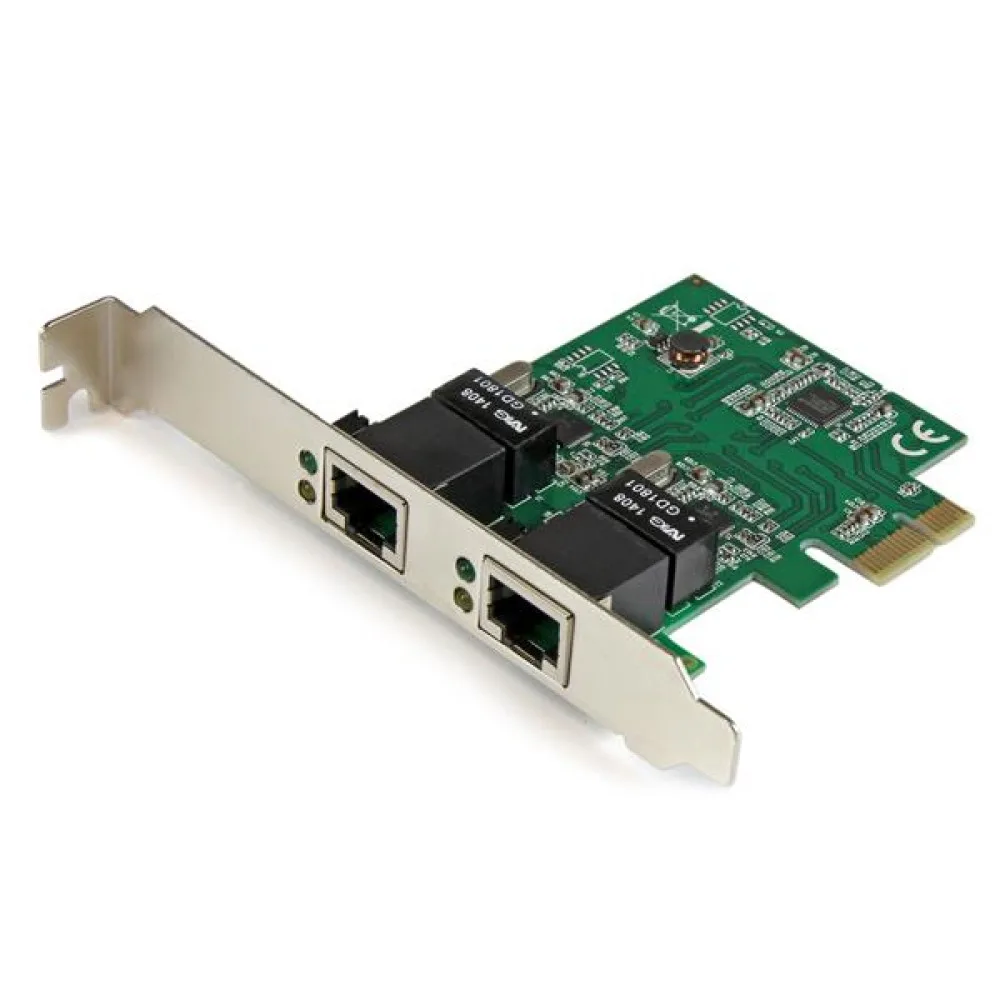

The ST1000SPEXD4 PCI Express Dual-Port Gigabit Network Card lets you add two gigabit Ethernet ports to a client, server or workstation through a single PCIe slot. Each port provides 10/100/1000 Mbps capable Ethernet and is fully compatible with IEEE 802.3/u/ab standards.
Suitable for any standard PCI Express-enabled system, the 2-port Ethernet card supports full-duplex flow control for maximum data transfer speeds of up to 2000 Mbps - an ideal 2-port NIC for setting up dual-homed, or multi-homed host configurations providing added security to corporate networks.
The dual-port server adapter is compliant with the PCIe 2.0 standard and features support for Jumbo Frames and 802.1q VLAN tagging as well as Wake on LAN (WoL). The adapter includes an optional low-profile / half-height bracket that can be used for installation into a standard or small form-factor computer chassis.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.

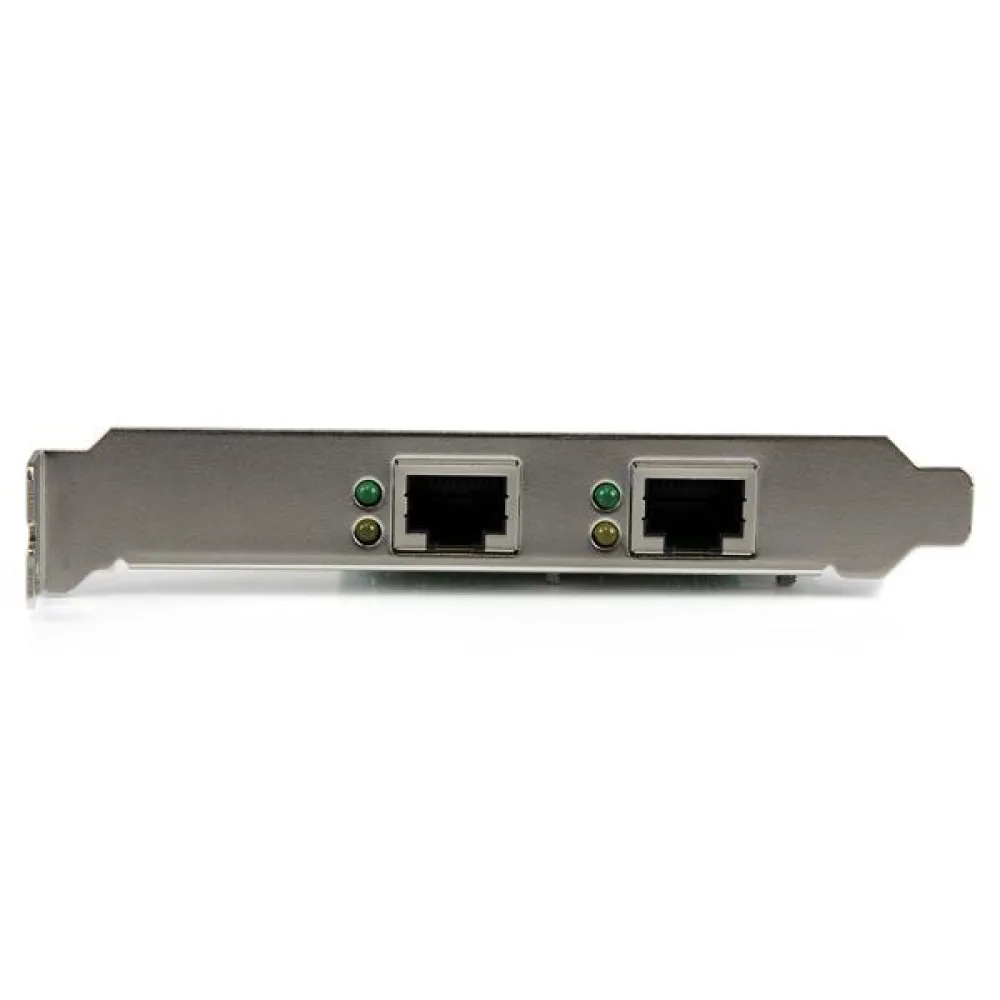

- Two 10/100/1000Mbps compatible RJ-45 Ethernet ports
- Up to 9K Jumbo Frame support
- Compatible with PCI Express Base Specification 2.0 (backward compatible with 1.0a/1.1)
- Supports Microsoft NDIS5 Checksum Offload (IP, TCP, UDP) and Large send Offload
- Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control
- Wake-on-LAN / Remote Wake-up support
- Configured with standard profile bracket, low profile/half-height bracket included
- Supports Pair Swap / Polarity / Skew Correction
Specifications
| Internal | Yes |
| Compliance certificates | RoHS |
| Certification | CE, FCC |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| LED indicators | Activity, Link |
| Interface | Ethernet |
| Connectivity technology | Wired |
| Harmonized System (HS) code | 85176990 |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Wake-on-LAN ready | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Flow control support | Yes |
| Full duplex | Yes |
| VLAN tagging | Yes |
| Auto MDIX IEEE | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | 0 - 100 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Chipset | Realtek - RTL8111E, Asmedia - ASM1182E |
| Drivers included | Yes |
| Manual | Yes |
| Package width | 170 mm |
| Package depth | 143 mm |
| Package height | 30 mm |
| Package weight | 142 g |
| Low-profile bracket | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Host interface | PCI Express |
| Maximum data transfer rate | 2000 Mbit/s |
| PCI version | 2.0 |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterpr |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Linux operating systems supported | Yes |
| Width | 18 mm |
| Depth | 92.6 mm |
| Height | 120 mm |
| Weight | 51 g |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
Specifications provided by the manufacturer via Icecat.
