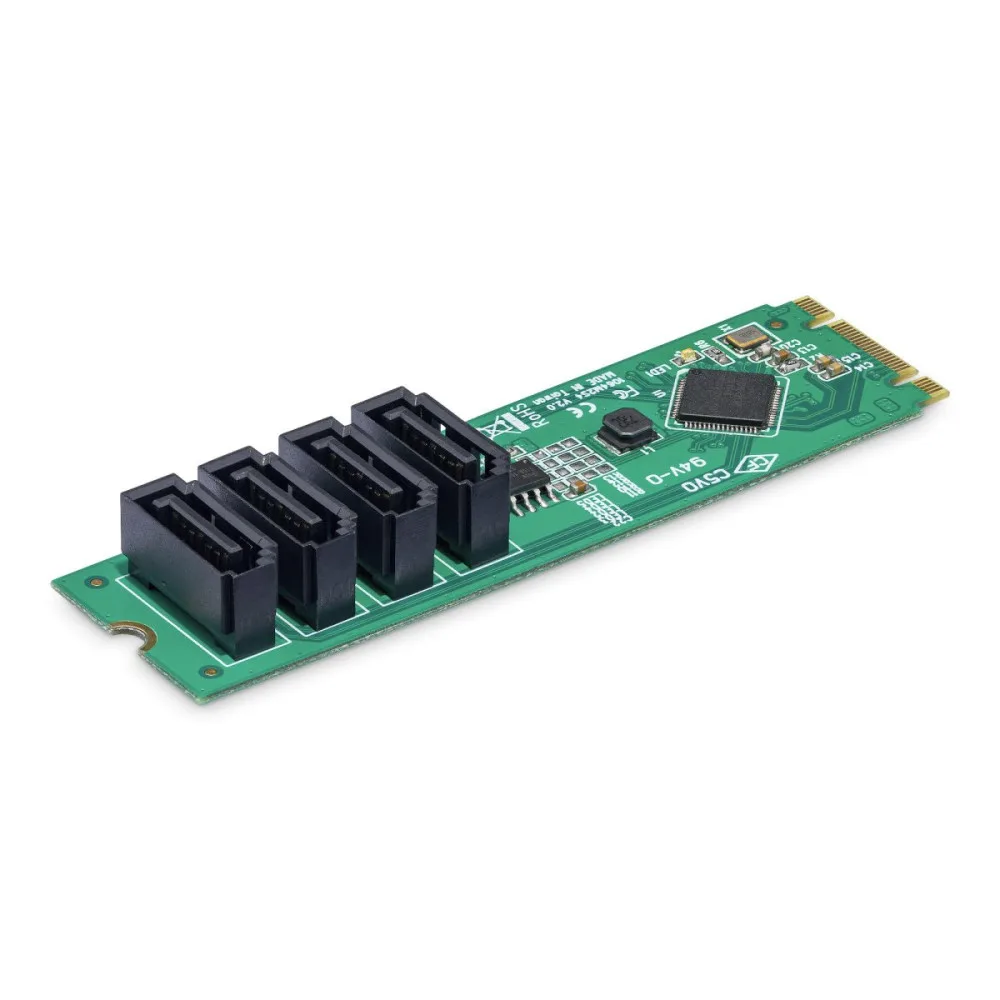

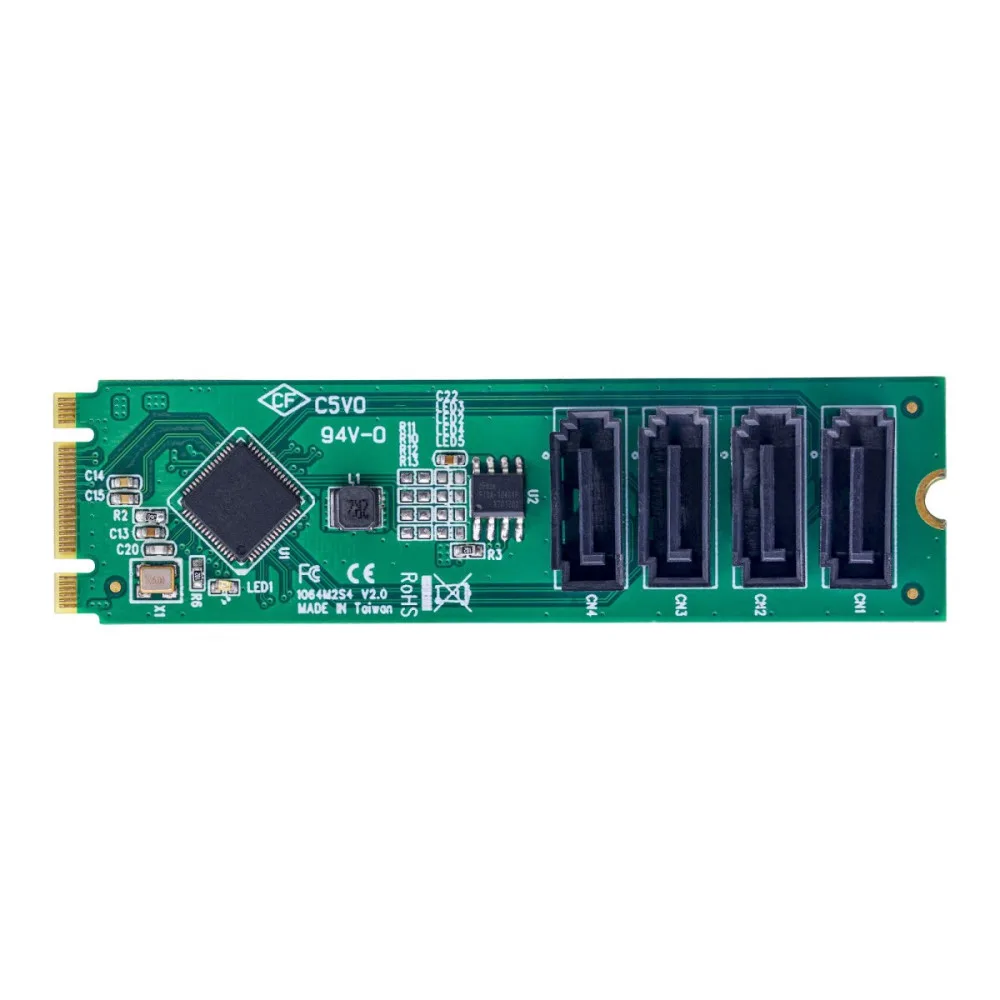

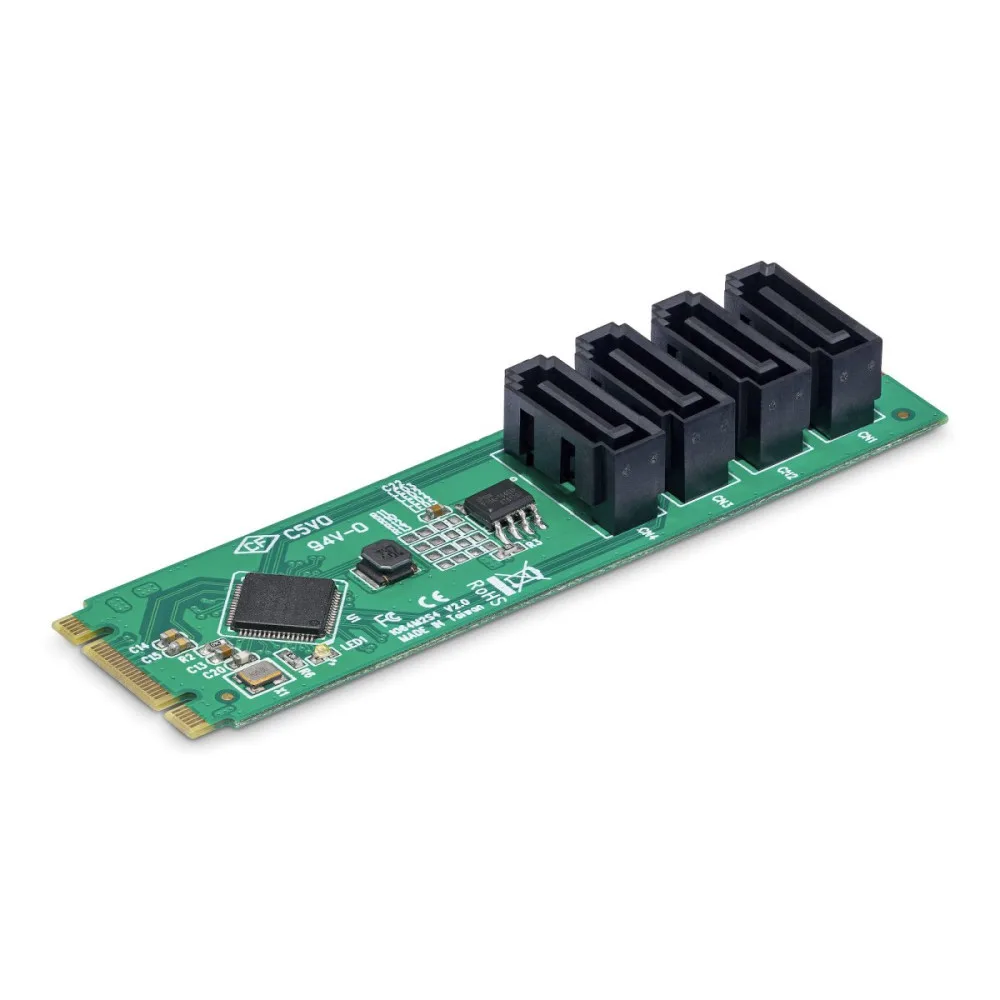

StarTech.com 4-PORT M.2 to SATA Adapter
£32.99
- £32.99 ex VAT
Install four SATA drives via one M.2 slot for a high-density storage solution
Add up to four independent SATA drives to a desktop via a single 2280 M.2 drive slot, maintaining SATA 6Gbps read/write speeds per drive.
Cost-Effective Storage Expansion
This setup can be used with modern motherboards or external enclosures that feature a PCIe-based M.2 slot, allowing for a cost-effective expansion of storage capabilities. Four 19.6-inch (50cm) SATA cables are included to connect the HDDs or SSDs for quick installation.
Compatibility
The drivers auto-install in most major operating systems, including Windows 8 and later, macOS, and Linux. This adapter card is compatible with all hardware platforms, such as Intel and AMD, and supports software storage management, including Microsoft's Storage Spaces.
Applications
This storage expansion card is ideal for data storage, backups, NAS setups, photographers, videographers, and content creation, where large storage capacity and reliability is required.
ASMedia ASM1064 Chipset
The 4-Port M.2 NVMe to SATA Adapter supports TRIM, SMART data pass-through, SATA I/II/III, and PCI Express 3.0.
Note: Only compatible with PCIe-based B-key or M-key M.2 drive slots
Note: Not compatible with SATA-based M.2 drive slots
- INCREASE STORAGE: Expand storage capacity and flexibility using minimal connections and the small M.2 footprint; Add up to four independent SATA drives to a desktop via a single 2280 M.2 drive slot while maintaining SATA 6Gbps read/write speeds per drive
- UNIVERSAL COMPATIBILITY: Drivers auto-install in most major operating systems including Windows 8 & up, macOS, and Linux; Compatible with all hardware platforms such as Intel/AMD; Supports software storage management including Storage Spaces (Microsoft)
- APPLICATIONS: Use with modern motherboards or external enclosures that feature an M.2 slot to cost-effectively expand storage capabilities; Ideal for data storage, backups, NAS setups, photographers, videographers, and content creation
- TECH SPECS: ASMedia ASM1064 chip supports TRIM, SMART data, SATA I/II/III, and PCI Express 3.0; Includes 4x 19.6in (50cm) SATA cables to connect the HDDs/SSDs; Compatible with PCIe-based B or M-key M.2 slots; NOTE: Not compatible with SATA M.2 drive slots
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 4-port M.2 to SATA Adapter Card is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance
Specifications
| Internal | Yes |
| Compliance certificates | RoHS |
| LED indicators | Power |
| Product colour | Green |
| Mean time between failures (MTBF) | 68555579 h |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Hot-swap | Yes |
| Products per master (outer) case | 75 pc(s) |
| Master (outer) case width | 685 mm |
| Master (outer) case length | 345 mm |
| Master (outer) case height | 306 mm |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Chipset | ASMedia ASM1064 |
| Cables included | SATA |
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 142 g |
| User guide | Yes |
| Host interface | M.2 |
| Output interface | SATA |
| Expansion card standard | PCI 3.0 |
| Internal SATA ports quantity | 4 |
| Port multiplier | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp |
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma |
| Linux operating systems supported | Yes |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 11 mm |
| Weight | 8 g |
Specifications provided by the manufacturer via Icecat.
