StarTech.com 4 Port Pci Express USB 3.0 Card
£42.99
- £42.99 ex VAT
Add 4 external USB 3.0 (USB 3.2 Gen 1) ports to a low profile or standard computer, through PCI Express
The PEXUSB3S4V PCI Express USB 3.2 Gen 1 Card (with SATA Power) adds 4 external USB 3.2 Gen 1 ports to any PCI Express-enabled computer system with support for data rates up to 5 Gbps, while remaining backward compatible with USB 2.0 / 1.x devices.
Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.2 Gen 1 controller performs up to 70% faster than conventional USB 3.2 Gen 1 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.

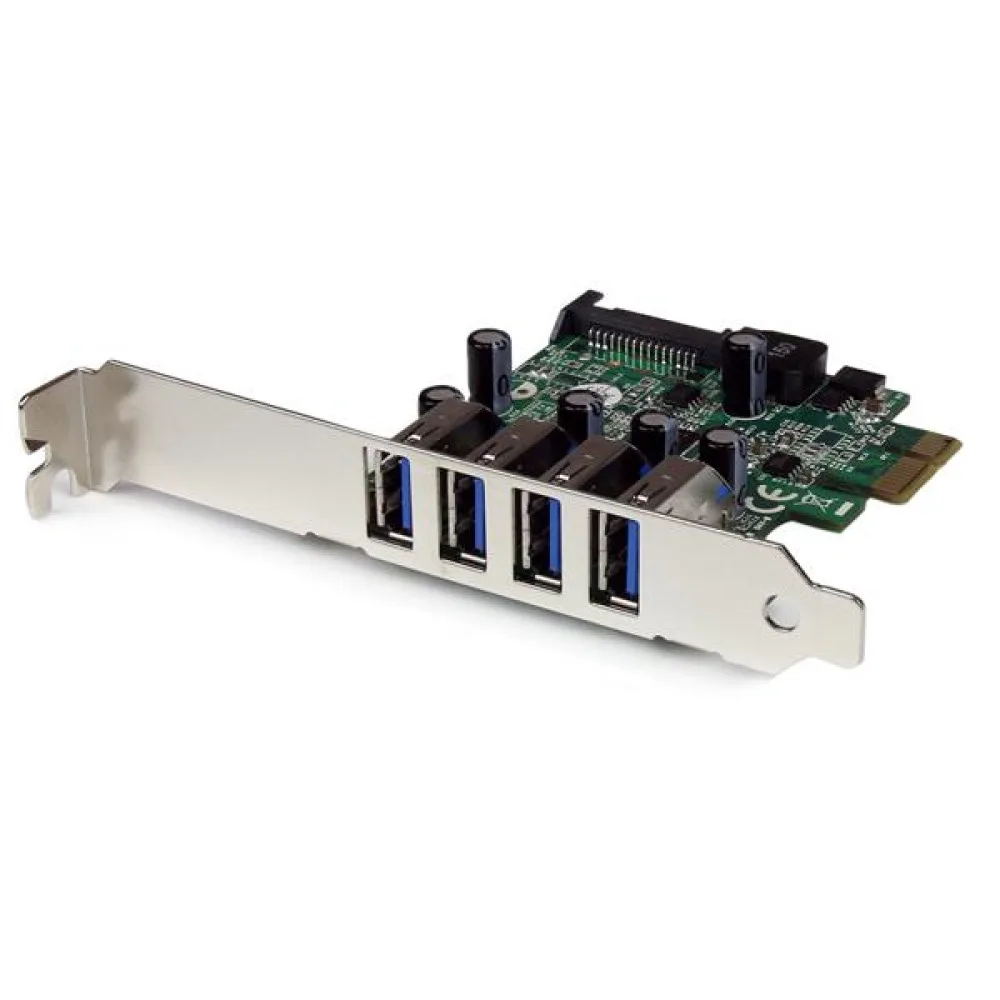

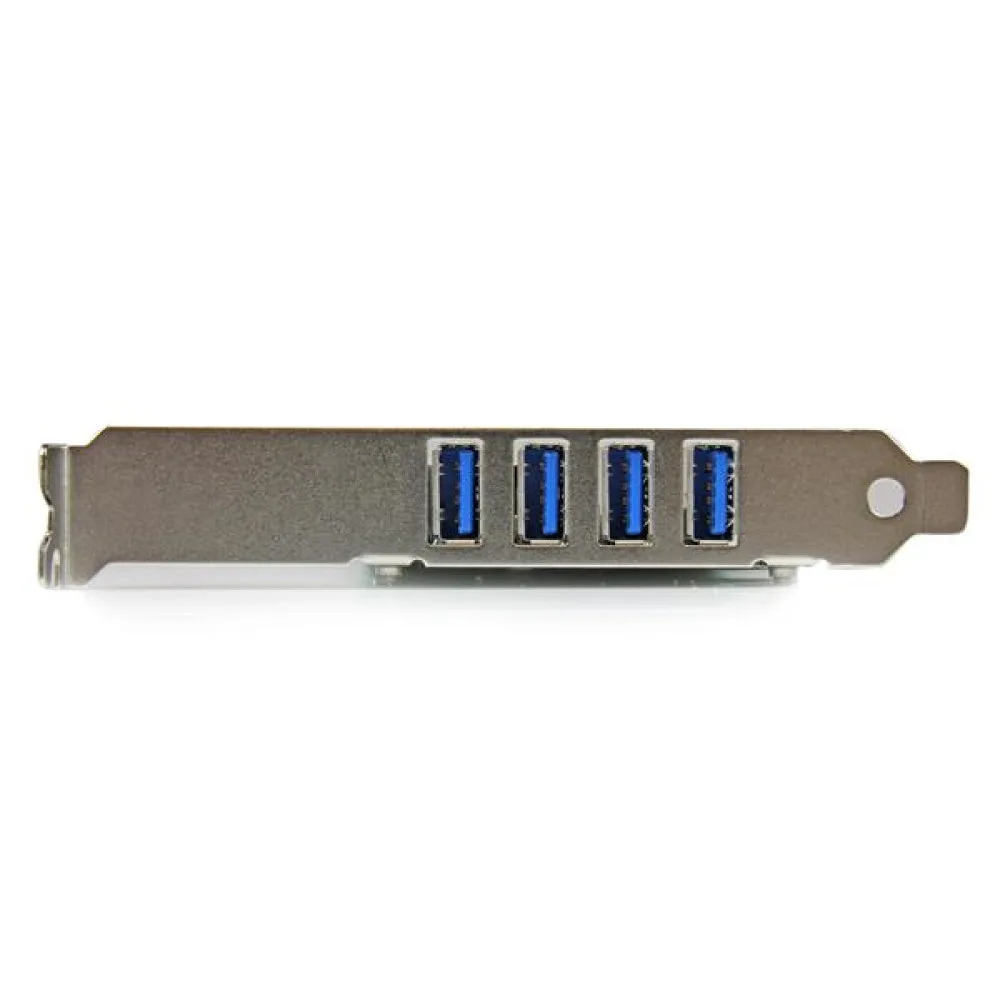

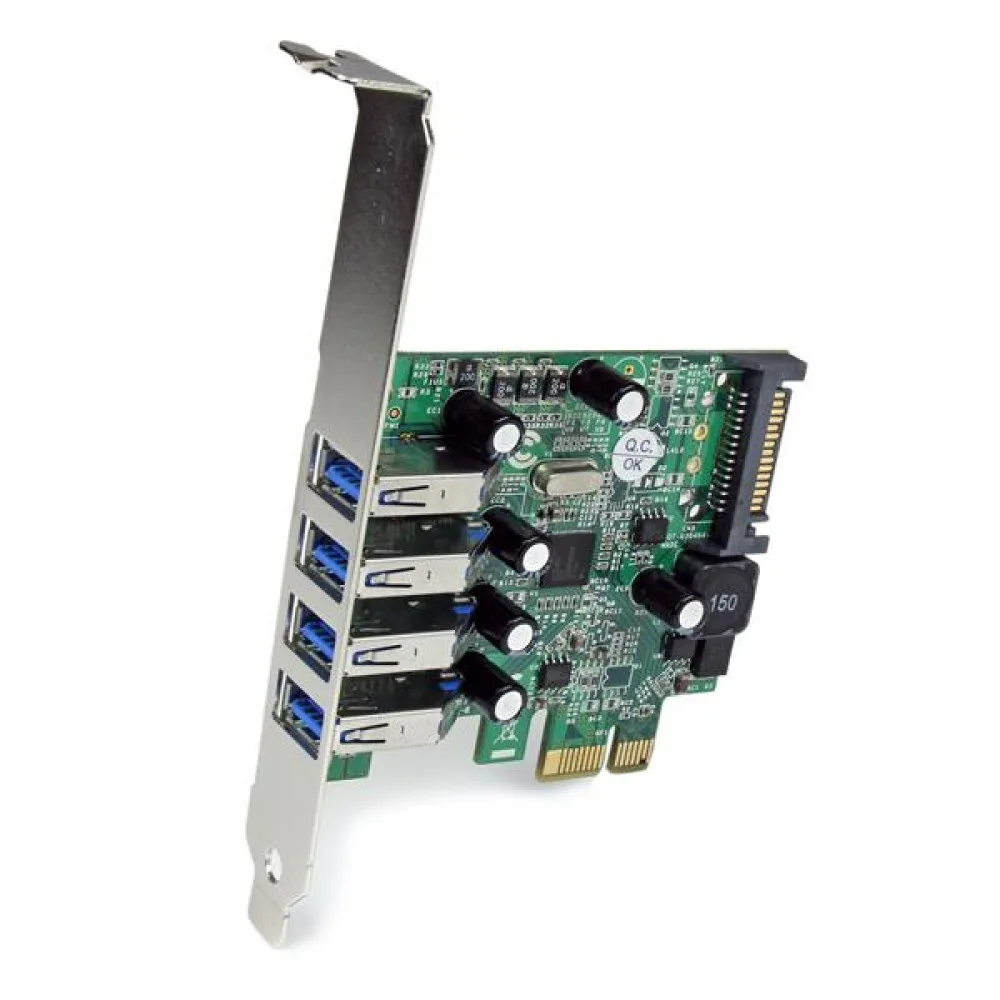

The card uses a "stacked" port layout that places the ports one on top of the other, enabling all four USB 3.2 Gen 1 ports to be external facing, while still allowing the card to fit into a small form factor/low profile computer system using the included low profile bracket.

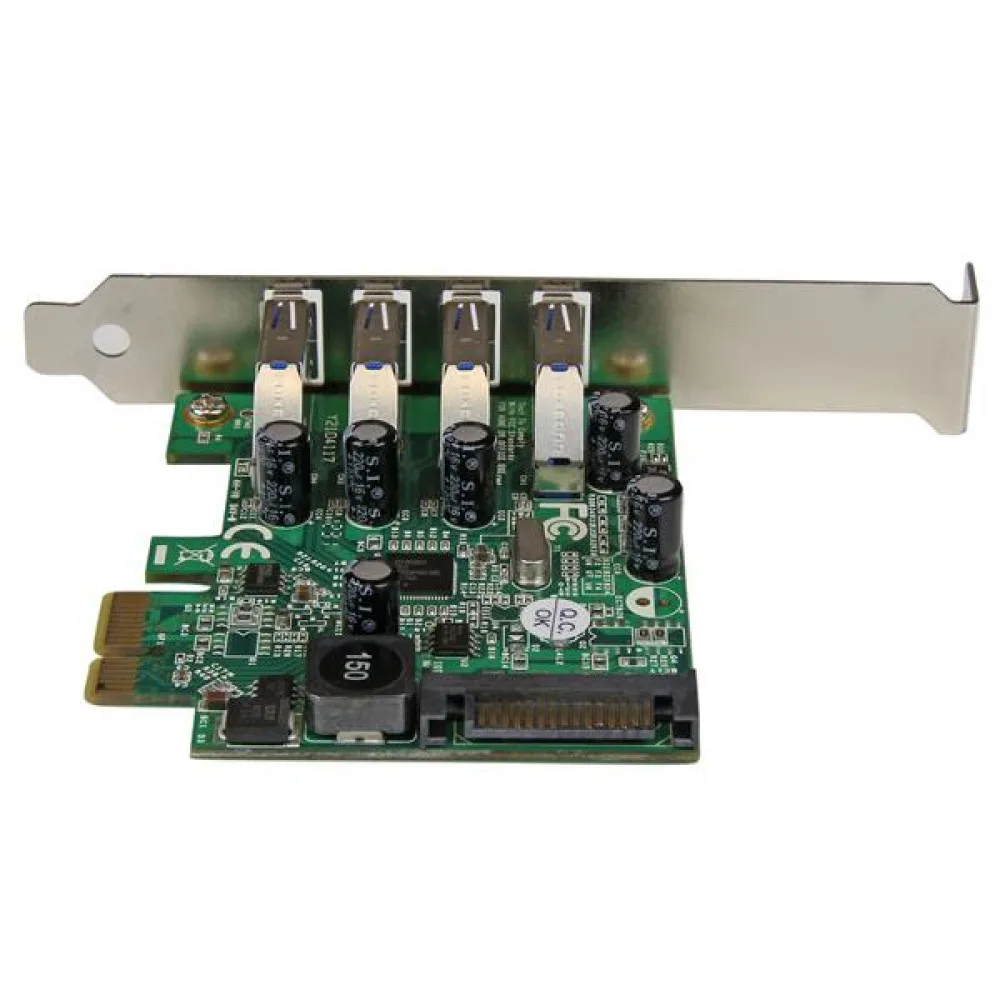

Plus, with a built-in SATA power connector, each USB port can provide up to 900mA of power to devices that draw power from a host bus connection (500mA for USB 2.0) by connecting to your computer power supply.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows® 8 and Server 2012. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.2 Gen 1 at peak performance.
At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.
Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
- 4 external USB 3.2 Gen 1 (5Gbps) ports in a stacked layout
- UASP support for more efficient data transfer
- Fully compliant with USB 3.2 Gen 1 revision 1.0 specifications and Intel xHCI rev0.95 specifications
- Built-in optional SATA power connector for bus-powered USB devices
- Optionally provides up to 900mA per USB port
- Backward compatible with USB 2.0 and USB 1.0/1.1 devices
- Compliant with PCI Express 2.0 specifications
- Includes a Low Profile/half-height installation bracket
Specifications
| Internal | Yes |
| Compliance certificates | RoHS |
| Certification | CE, FCC |
| Data transfer rate (max) | 5 Gbit/s |
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 100 pc(s) |
| Master (outer) case width | 566 mm |
| Master (outer) case length | 504 mm |
| Master (outer) case height | 340 mm |
| UASP support | Yes |
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Compatible operating systems | Windows XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008 R2/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8 (32/64-bit) |
| Chipset | NEC uPD720201 |
| Drivers included | Yes |
| Manual | Yes |
| Mounting brackets included | Yes |
| Package width | 131 mm |
| Package depth | 162 mm |
| Package height | 33 mm |
| Package weight | 138 g |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Host interface | PCIe |
| Output interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Expansion card standard | PCIe 2.0 |
| Internal SATA ports quantity | 1 |
| Mac compatibility | No |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Width | 68 mm |
| Depth | 19 mm |
| Height | 75 mm |
| Weight | 45 g |
Specifications provided by the manufacturer via Icecat.
