StarTech.com Cisco Meraki MA-SFP-1GB-TX Compatibl
£43.99
- £43.99 ex VAT
10/100/1000 Mbps | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty

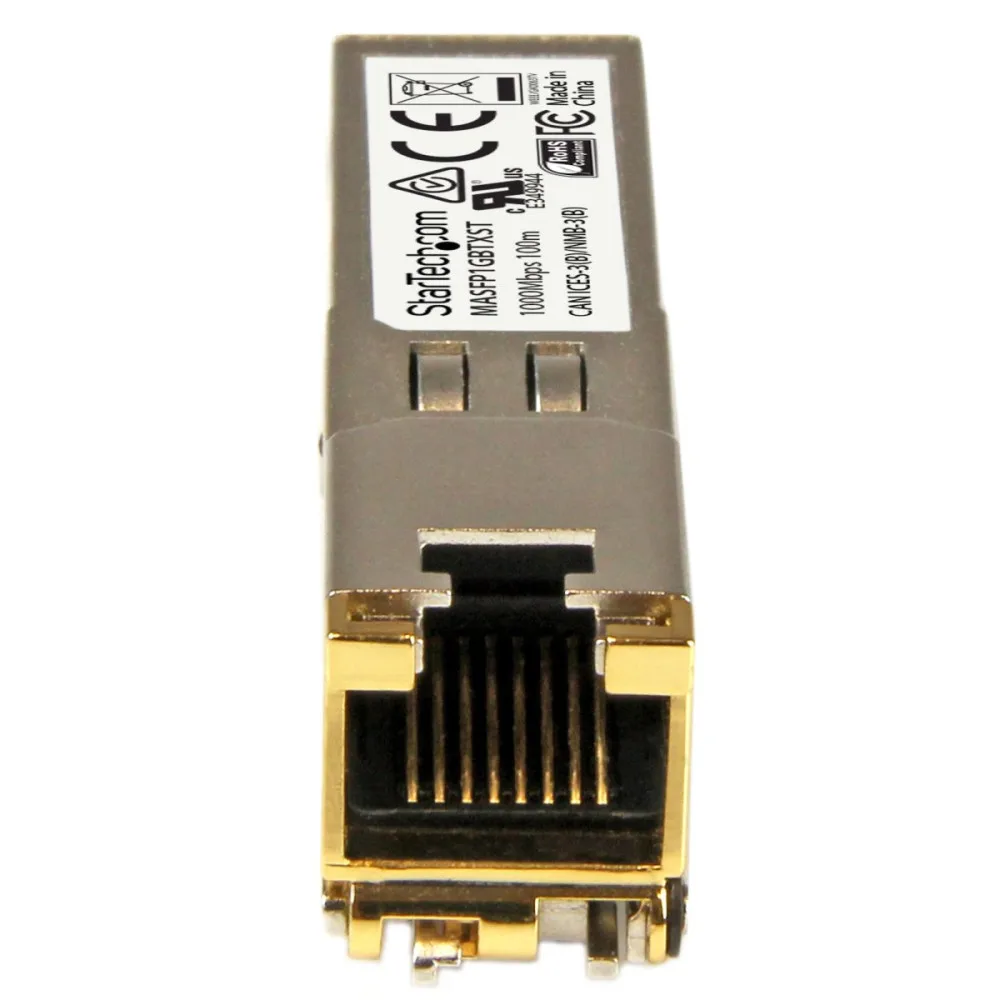

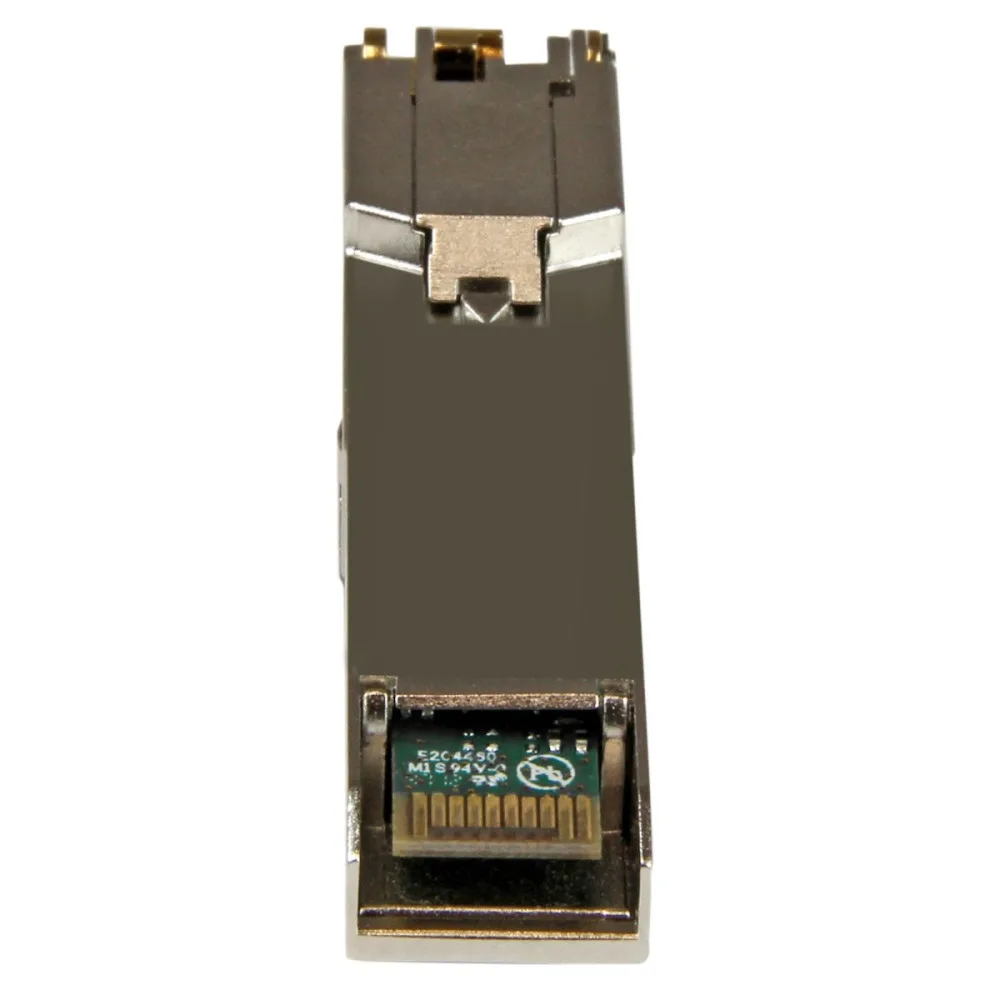

The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible copper transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over copper cable, for 10BASE-T, 1000BASE-T and 100BASE-TX compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
• Maximum Data Transfer Rate: 1000 Mbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• MTBF: 4,655,371 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
- 100% CISCO MERAKI MA-SFP-1GB-TX COMPATIBLE: Works with Cisco Meraki switches like MS225, MX400, MS250, MS350, MX84 and others
- TECHNICAL SPECS: 1000BASE-T / 1 Gbps / Copper / RJ-45 Connector / Distances up to 100m (328ft)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.
Specifications
| Compliance certificates | CE, RoHS |
| Housing material | Aluminium |
| Product colour | Silver |
| Country of origin | China |
| Mean time between failures (MTBF) | 4655371 h |
| Hot-Plug support | Yes |
| Harmonized System (HS) code | 85369010 |
| Products per master (outer) case | 120 pc(s) |
| Master (outer) case width | 349 mm |
| Master (outer) case length | 431 mm |
| Master (outer) case height | 358 mm |
| Ethernet LAN | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Package width | 93 mm |
| Package depth | 114 mm |
| Package height | 33 mm |
| Package weight | 51 g |
| Quantity per pack | 1 pc(s) |
| Maximum transfer distance | 100 m |
| SFP transceiver type | Copper |
| SFP transceiver standard | TX |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | No |
| Ethernet LAN (RJ-45) ports | 1 |
| Interface type | SFP |
| Maximum data transfer rate | 1000 Mbit/s |
| Power consumption (typical) | 1.3 W |
| Width | 18 mm |
| Depth | 68 mm |
| Height | 13.8 mm |
| Weight | 21 g |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u |
Specifications provided by the manufacturer via Icecat.
