StarTech.com Displayport to DVI Video
In stock - ready to ship
Estimated delivery Tuesday 29 SeptemberDispatched within 24 hours by DPD
£12.99
- £12.99 ex VAT
Connect your DVI monitor to a DisplayPort equipped computer

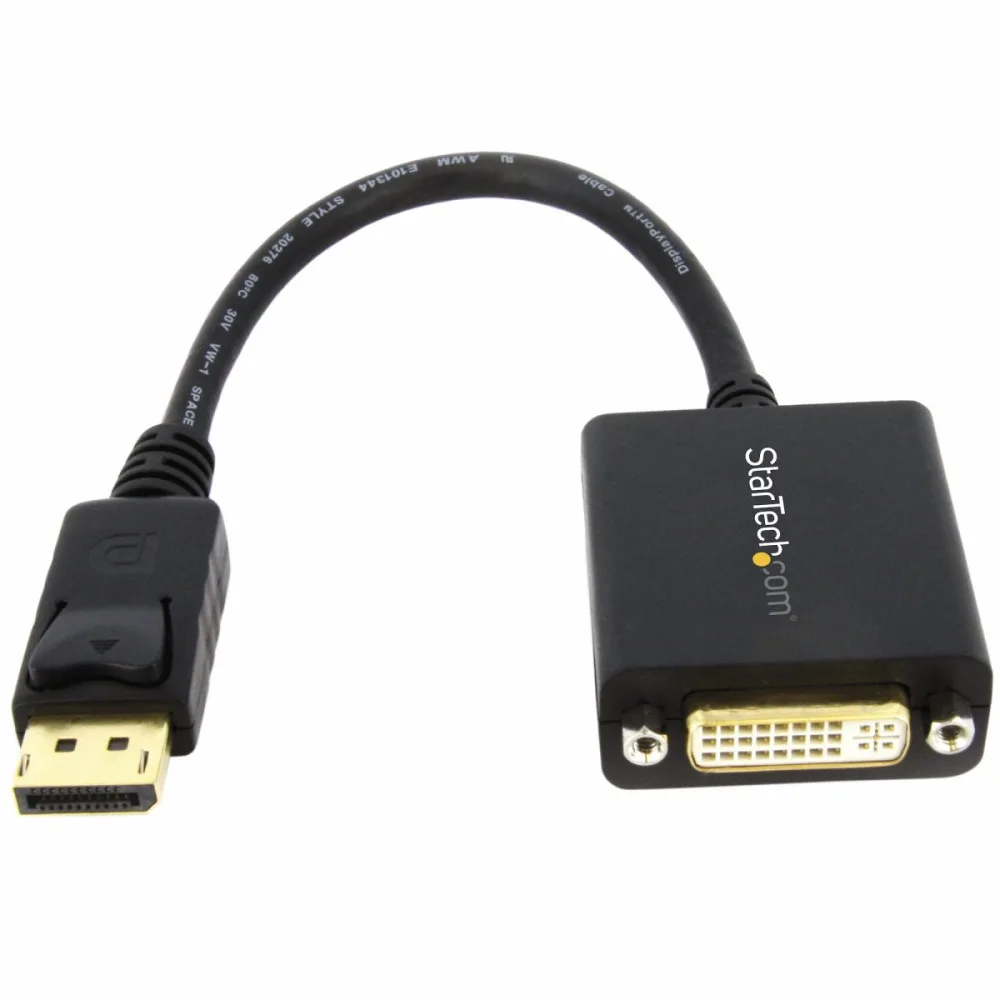

The DP2DVI2 DisplayPort® to DVI Video Adapter Converter lets you connect a DVI monitor to DisplayPort-enabled desktop or laptop computers.
Supporting display resolutions of up to 1920x1200 allowing you to take full advantage of single link DVI capability. DP2DVI2 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
StarTech.com also offers the DP2DVIS, an Active DisplayPort to DVI adapter.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
- DISPLAYPORT TO DVI ADAPTER: DisplayPort 1.2 HBR2 to DVI-D (digital only) single-link adapter connects DVI display/projector / 1920x1200/1080p 60Hz; HDCP 1.4 / 6" (15cm) attached cable / DisplayPort Certified
- COMPATIBILITY: Passive video converter supports DP++ source incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
- CONNECT A PRIMARY OR SECONDARY DISPLAY: Connect a DVI monitor or projector, or add a second display to your workstation using the DP to DVI adapter / Tested w/ DVI cables up to 25ft / EDID & DDC pass-through ensure compatibility between source & display

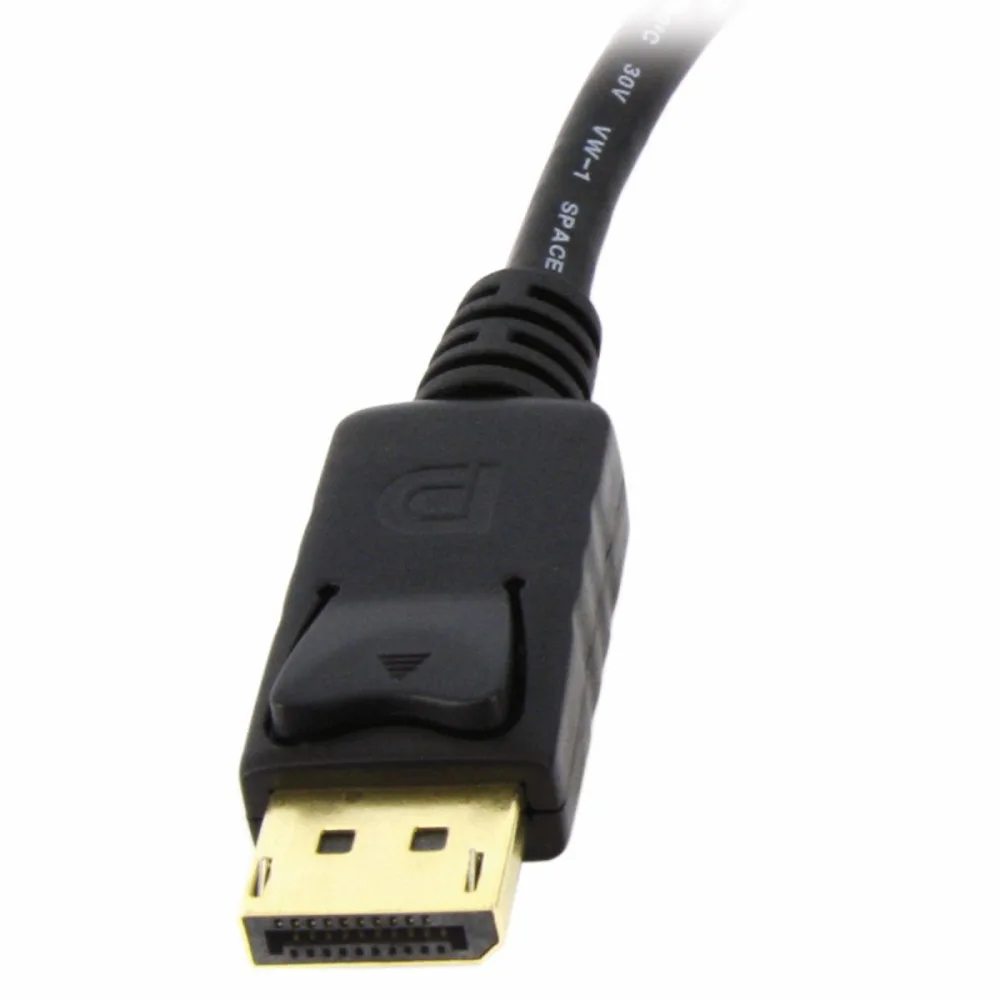

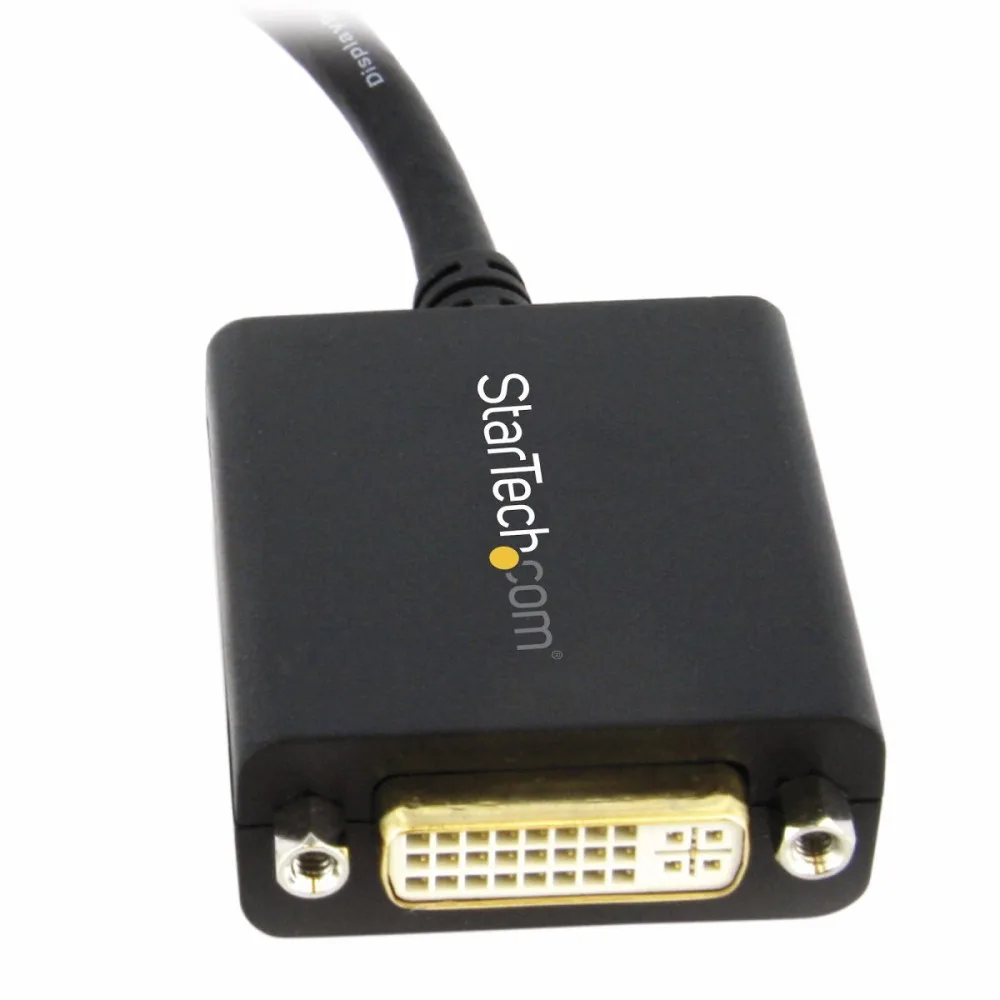

- LATCHING DISPLAYPORT & SCREW LOCKING DVI: Latching DP connector ensures a solid host connection / Supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection / Compact design
- EASY TO USE: With no software or drivers required, the DP to DVI adapter converter works w/ any OS / DisplayPort male to DVI female adapter dongle / Connector is DVI-I, however only a digital signal (DVI-D) passes through
Specifications
| Compliance certificates | RoHS |
| Certification | CE, FCC, REACH |
| Maximum refresh rate | 60 Hz |
| Cable length | 0.152 m |
| Connector 1 | DisplayPort |
| Connector 2 | DVI-I |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Product colour | Black |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Converter type | Passive video converter |
| HBR2 support | Yes |
| Harmonized System (HS) code | 84733080 |
| Products per master (outer) case | 140 pc(s) |
| Master (outer) case width | 516 mm |
| Master (outer) case length | 336 mm |
| Master (outer) case height | 226 mm |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Package width | 196 mm |
| Package depth | 197 mm |
| Package height | 25 mm |
| Package weight | 52 g |
| Quantity per pack | 1 pc(s) |
| HDCP version | 1.4 |
| Supported video modes | 480p, 720p, 1080p |
| Plug and Play | Yes |
| Dual Link DVI | No |
| HDCP | Yes |
| DisplayPort version | 1.2 |
| Maximum resolution | 1920 x 1200 pixels |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 600, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUX |
| Width | 42 mm |
| Depth | 254 mm |
| Height | 17 mm |
| Weight | 43 g |
Specifications provided by the manufacturer via Icecat.
