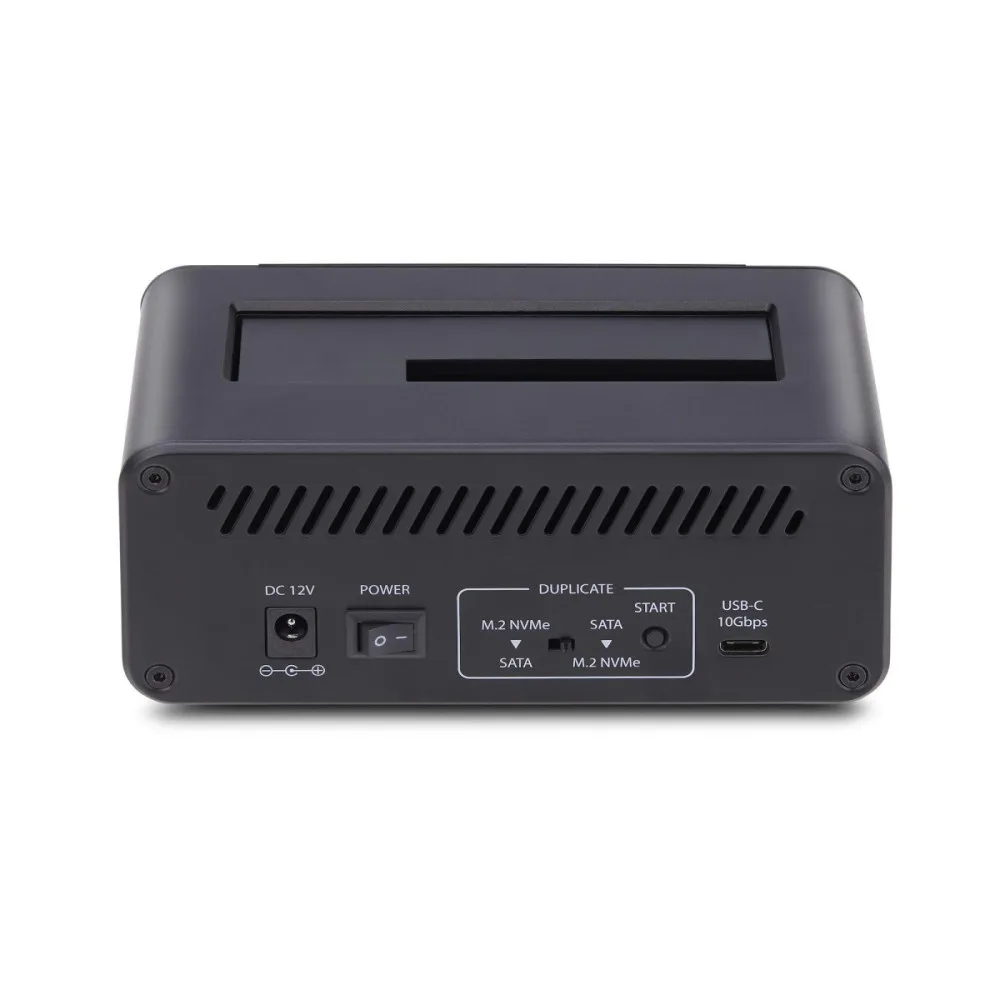

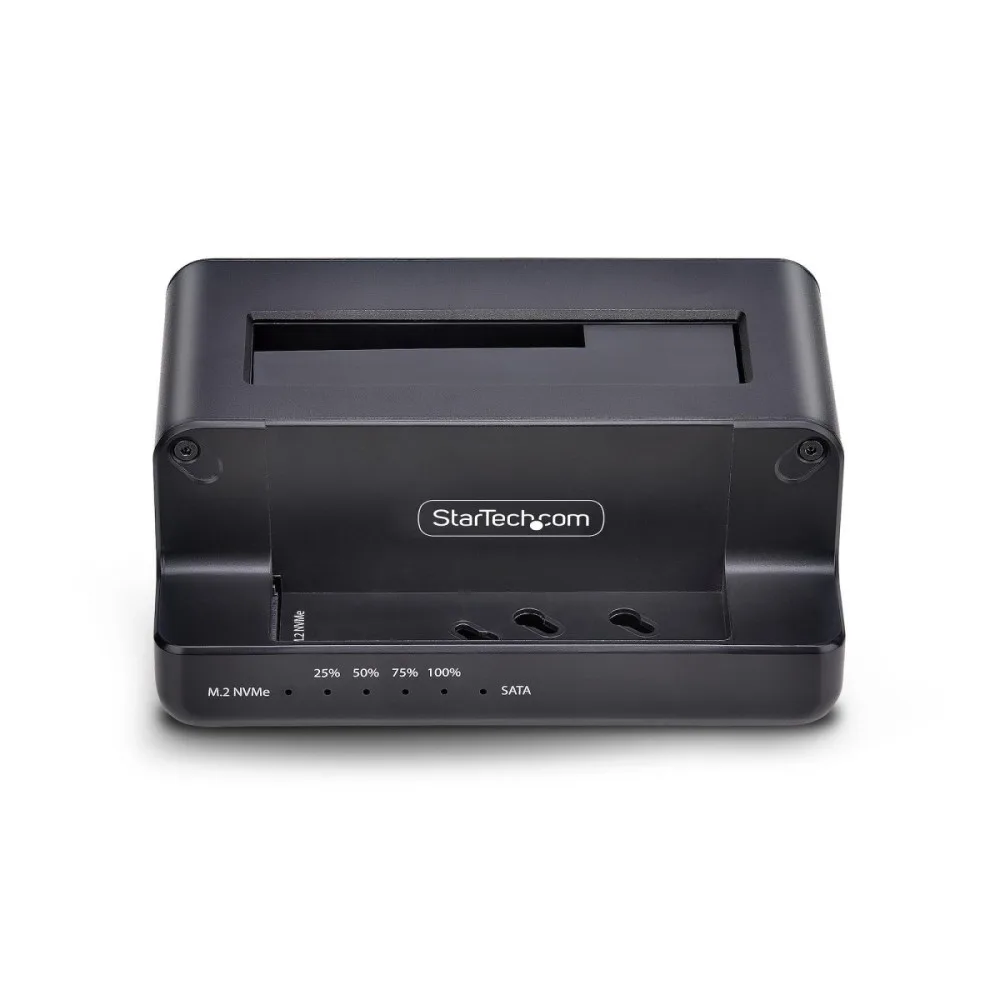

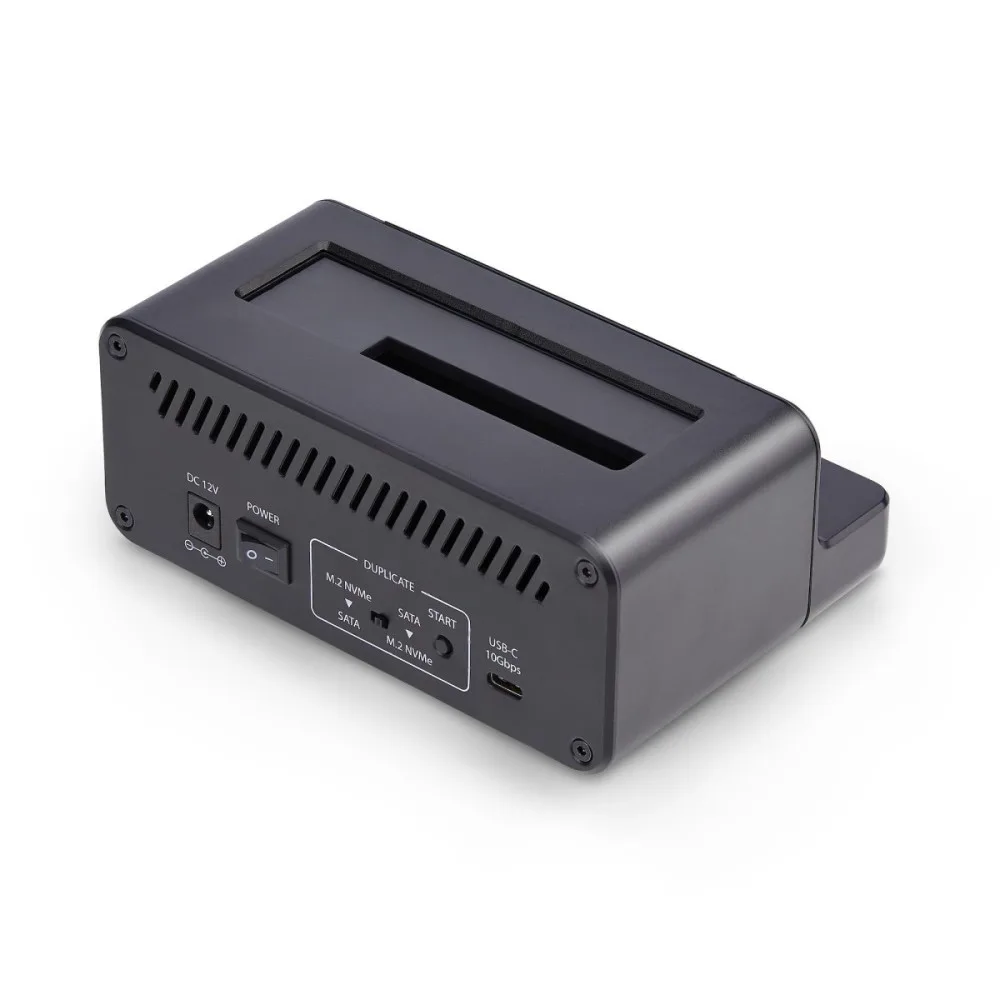

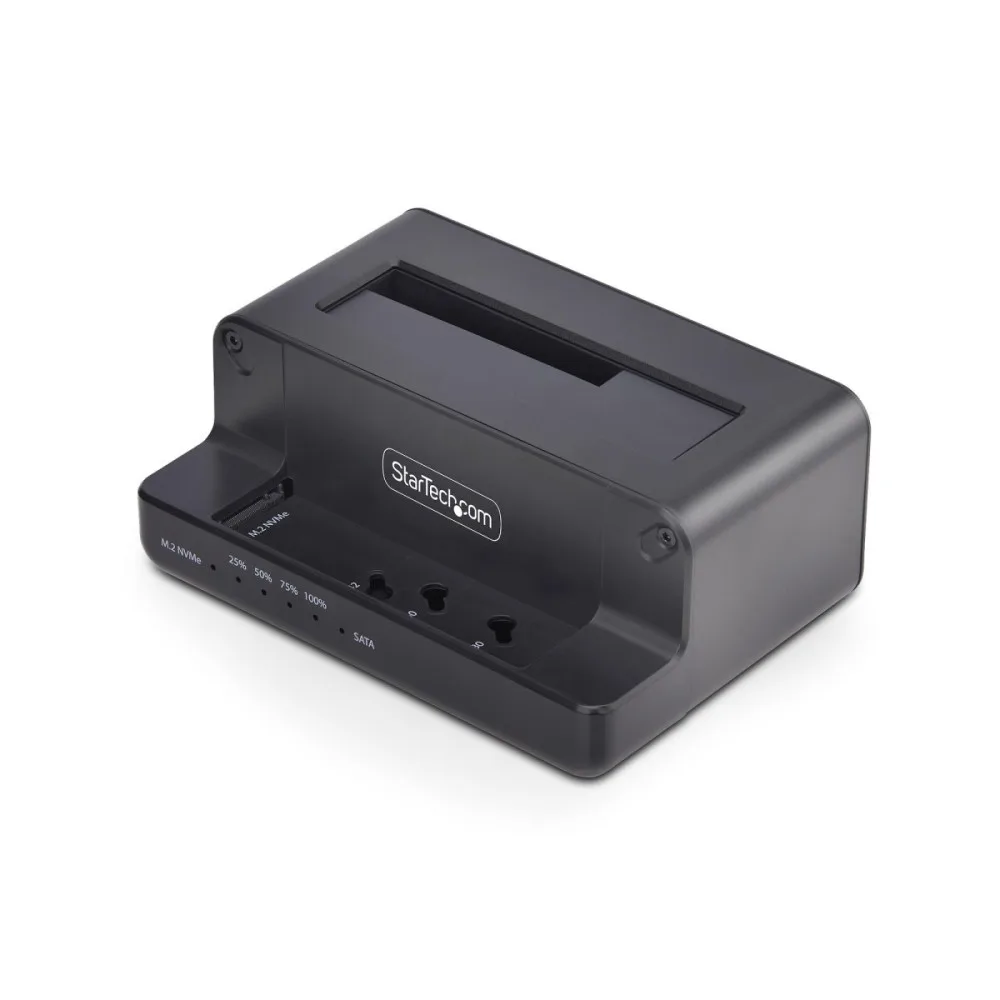

StarTech.com NVME to 2.5 3.5 SATA Cloner
£61.99
- £61.99 ex VAT
Clone M.2 NVMe drives without a host computer, or access the drives when connected to a computer via USB
Perform bidirectional cloning between M.2 NVMe and 2.5/3.5" SATA SSDs/HDDs without a computer, using this M.2 NVMe to SATA Drive Duplicator. The standalone sector-by-sector duplication supports SATA III (6Gbps) and works with any file format.
Standalone M.2 NVMe to SATA Cloner Dock
Clone an M.2 NVMe drive to a 2.5"/3.5" SATA SSD/HDD or vice versa. This solution is ideal for hardware upgrades, system imaging, or routine maintenance. The Duplicator Dock supports 2240, 2260, and 2280 M.2 NVMe sizes and fits all standard SATA drives, seamlessly combining both legacy and modern storage solutions.
External Drive Access over USB-C
The USB 3.2 Gen 2 (10Gbps) host connection provides external access to both M.2 NVMe and SATA drives, facilitating data transfer between systems without the need to install the drives internally.
Compact Form Factor
The Standalone M.2 NVMe to 2.5/3.5in SATA Cloner is portable and minimizes desk space usage. It enables instant data backup, and is ideal for IT Professionals when troubleshooting on-site, with the ability to re-image and re-deploy M.2 NVMe and SATA SSDs/HDDs without the need for a dedicated cloning station.
The SSD Cloner Dock features a top-loading design to promote passive airflow for consistent temperatures during peak performance. The Standalone Duplicator supports 4Kn sector size, TRIM, SMART, and UASP. Please note that the target disk must be equal to or larger than the source disk.
- STANDALONE BIDIRECTIONAL CLONING: Copy an M.2 NVMe drive to a 2.5/3.5" SATA SSD/HDD, or clone from a SATA drive to M.2 NVMe without the need for a computer; Up to 27GB/min sector-by-sector duplication copies the entire drive; Works with any file format
- M.2 NVME AND SATA DOCK: USB 10Gbps (USB 3.2) host connection enables external access and storage for M.2 NVMe and SATA SSD/HDDs; Perform data transfer without installing the drives internally; Supports up to SATA III (6Gbps) and PCIe Gen3x2 (7.8Gbps)
- WIDE COMPATIBILITY: No drivers or software required; Toaster-style SATA drive bay fits all standard 2.5/3.5" SATA drives; M.2 NVMe slot supports 2242, 2260, & 2280 types; Supports 4Kn sector sizes; Target disk must be equal to or larger than source disk
- APPLICATIONS: Seamlessly clone data from legacy SATA drives to M.2 NVMe; Backup data from M.2 NVMe to a SATA SSD/HDD; Ideal for hardware upgrades, IT system imaging and deployments, support tasks, and routine maintenance; USB-C Cable is included
- COMPACT & USER-FRIENDLY: Small form factor requires minimal desktop or storage space; LEDs indicate power, drive activity, and progress; Top-loading design promotes greater passive cooling for optimal performance
Specifications
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| LED indicators | Yes |
| Product type | HDD/SSD duplicator |
| Number of fans | 0 fan(s) |
| Product colour | Black |
| Interface | USB 3.2 Gen 2 (3.1 Gen 2) |
| Power plug type | Type M |
| Number of simultaneous copies | 1 copies |
| Duplicator operating modes | Copy |
| Transfer rate | 27 GB/min |
| Supported HDD interfaces | Serial ATA, Serial ATA II, Serial ATA III |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case width | 510 mm |
| Master (outer) case length | 350 mm |
| Master (outer) case height | 255 mm |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Dimensions (WxDxH) | 100 x 140 x 55 mm |
| Chipset | JMS581D |
| Input current | 1.5 A |
| AC adapter included | Yes |
| Cables included | USB Type-C |
| Manual | Yes |
| Included power plug types | ANZ, EU, JP, NA, UK |
| Package width | 249 mm |
| Package depth | 118 mm |
| Package height | 65 mm |
| Package weight | 600 g |
| Plug and Play | Yes |
| SSD support | Yes |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 0.1 W |
| Output voltage | 12 V |
| Output current | 3 A |
| SSD interface | M.2, PCI Express 3.0, PCI Express 3.1 |
| Supported HDD sizes | 2.5,3.5" |
| Weight | 292 g |
Specifications provided by the manufacturer via Icecat.
