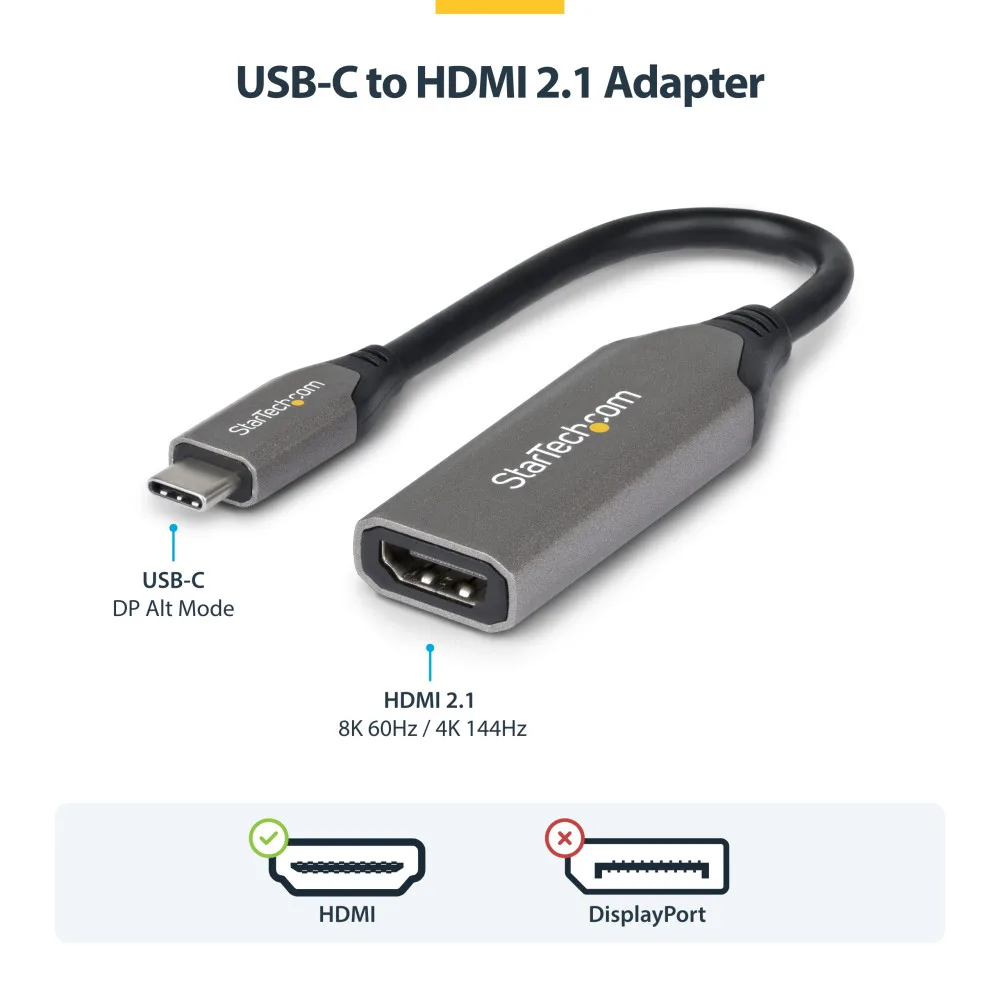

Connect a USB-C source to an HDMI display, with support for HDR10+ video, resolutions up to 8K at 60Hz and a 7.9in (20cm) attached cable
This USB-C to HDMI adapter enables ultra high-resolution video output at up to 8K at 60Hz through a USB-C DP Alt Mode port, making it ideal for video editing, 3D rendering, CAD work, digital signage, or boardroom displays.
Easy Setup, High Performance
With plug-and-play installation, the adapter connects to primary or secondary displays in extended or mirror mode, utilizing the host device's native GPU to deliver uncompressed, high-bandwidth video. It supports USB-C, USB4, and Thunderbolt laptops and devices without the need for drivers or software.

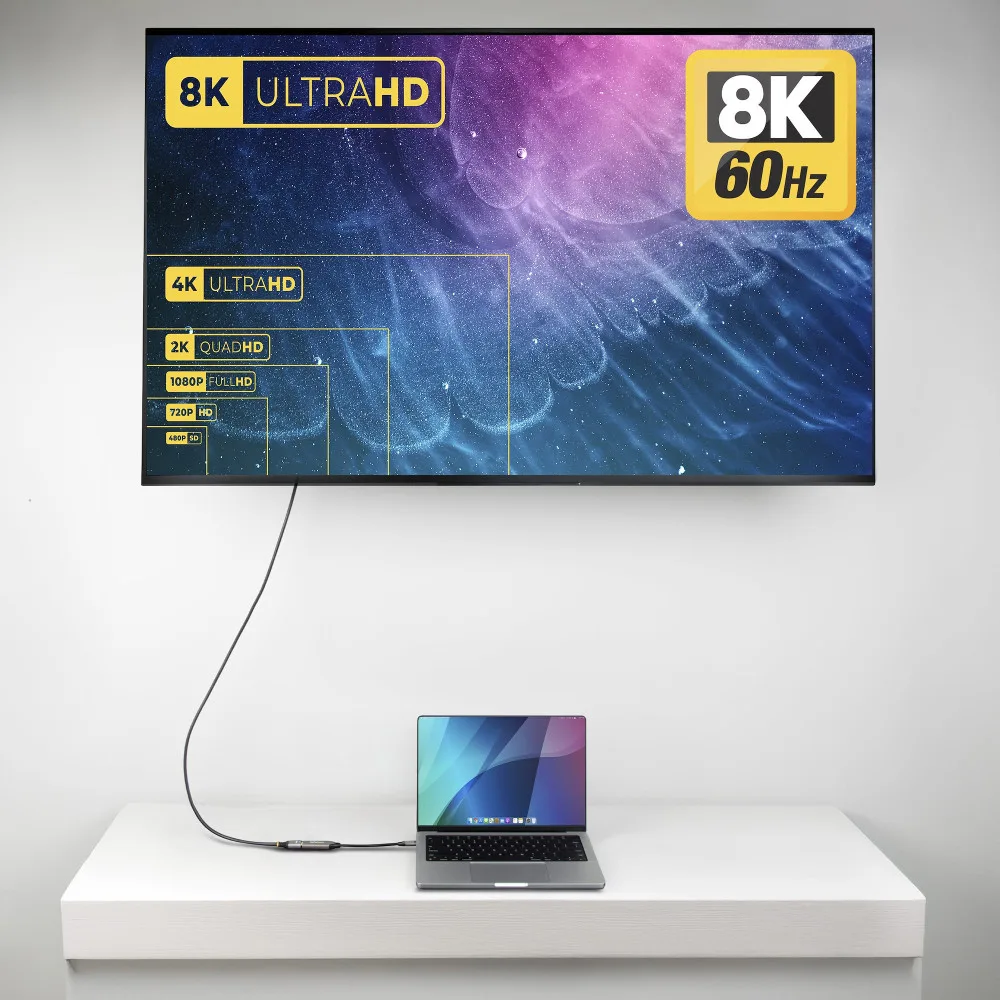

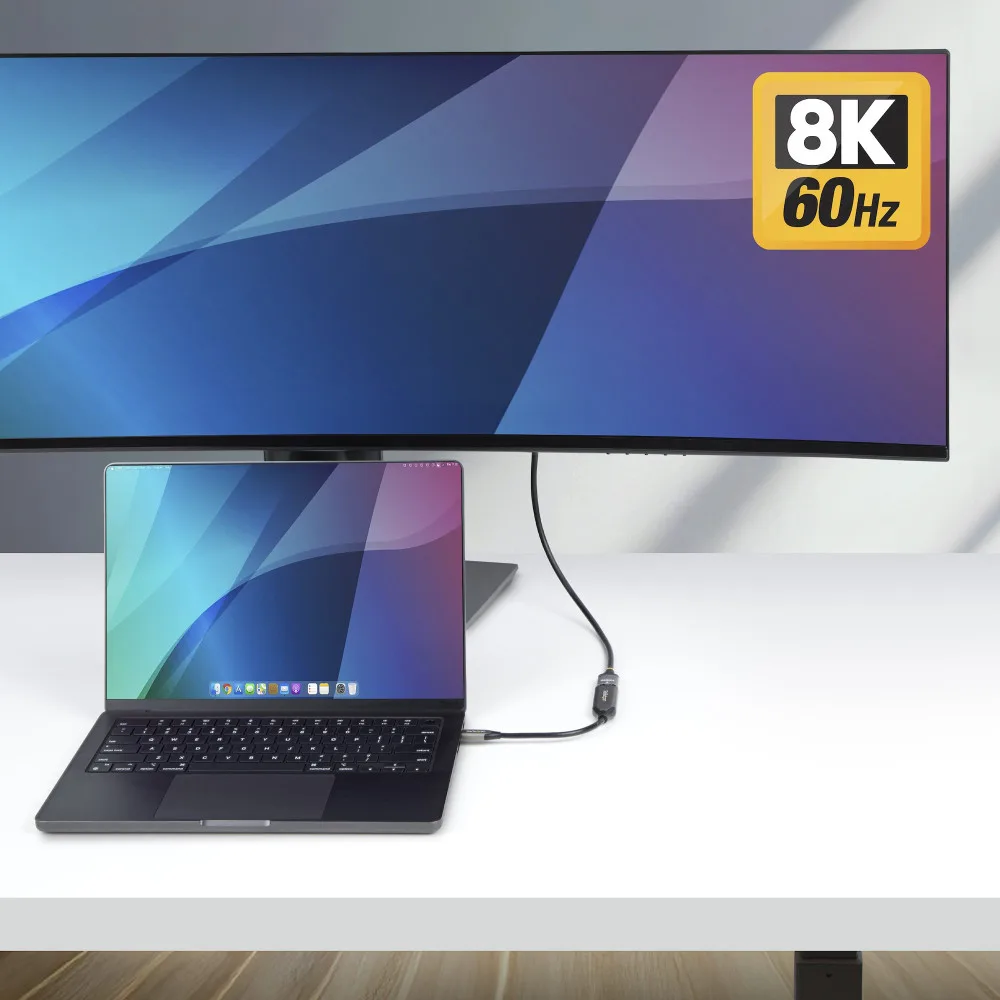

Seamless 8K Output Across Leading Devices
Compatible with major brands like Dell, HP, Lenovo, and Microsoft, the adapter delivers 8K 60Hz on Pro, Max, and Ultra models of Apple's M1, M2, and M3 chips, as well as all M4 versions. Base models of M1, M2, and M3 support up to 4K at 60Hz.
Deliver High-Performance Audio and Video Anywhere
Supporting HDMI 2.1, HDCP 2.3, HDR10+, and 7.1-channel audio, the adapter ensures a rich media experience. Its compact 7.9-inch (20cm) cable with a durable jacket withstands frequent use and is easy to carry.
Specifications
Features| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| Cable length | 0.2 m |
| Connector 1 | USB Type-C |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| HDMI version | 2.1 |
| HDCP | Yes |
| HDCP version | 2.3 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| High Dynamic Range (HDR) supported | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1080, 2560 x 1440, 3440 x 1440, 3840 x 2160, 4096 x 2160, 5120 x 1440, 7680 x 4320 |
| Maximum refresh rate | 144 Hz |
| Product colour | Grey |
| Chipset | VIA - VL103, Parade - PS196 |
| Jacket material | Polyvinyl chloride (PVC) |
| Supported audio channels | 7.1 |
Operational conditions| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | 10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Certificates| Compliance certificates | Federal Communications Commission (FCC), RoHS |
Weight & dimensions| Weight | 22.5 g |
| Width | 16.3 mm |
| Depth | 200 mm |
| Height | 5 mm |
Packaging data| Package width | 0.0100 mm |
| Package depth | 120 mm |
| Package height | 220 mm |
| Package weight | 10 g |
Packaging content| Quantity per pack | 1 pc(s) |
Logistics data| Master (outer) case width | 515 mm |
| Master (outer) case length | 300 mm |
| Master (outer) case height | 125 mm |
| Products per master (outer) case | 168 pc(s) |
Specifications provided by the manufacturer via Icecat.
