TP-Link 10-PORT Gigabit Switch 8-PORT Poe+
£84.99
- £84.99 ex VAT
PoE Switches for Your Ultra Convenience

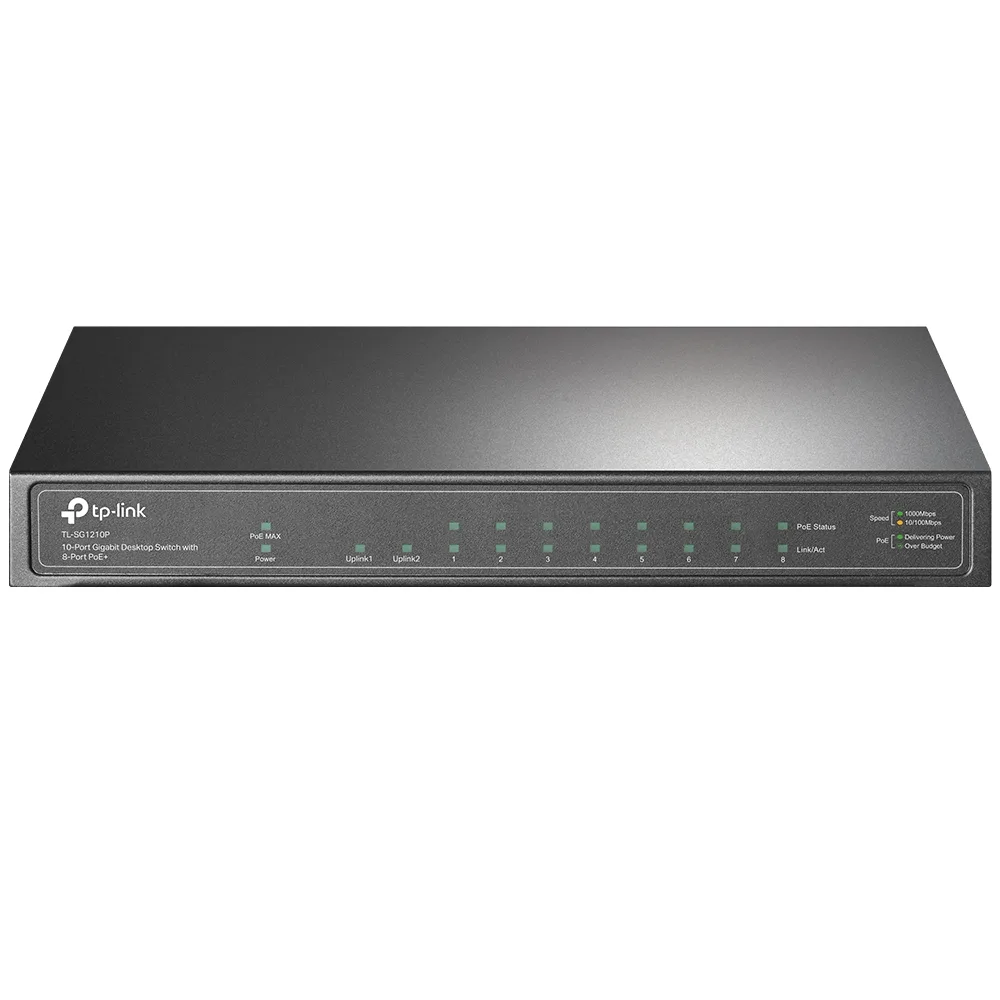

10-Port Gigabit Desktop Switch with 8-Port PoE+
TL-SG1210P
Surveillance
Work with IP Cameras
Conference Call
Work with IP Phones
Wi-Fi Coverage
Work with Omada EAPs
Easy to Use
Power over Ethernet
Port 1-8 of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 63W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Advanced Functions for Higher Performance
Qos
For Fluent Online Experience
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP
Snooping
Traffic Optimization for IPTV
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

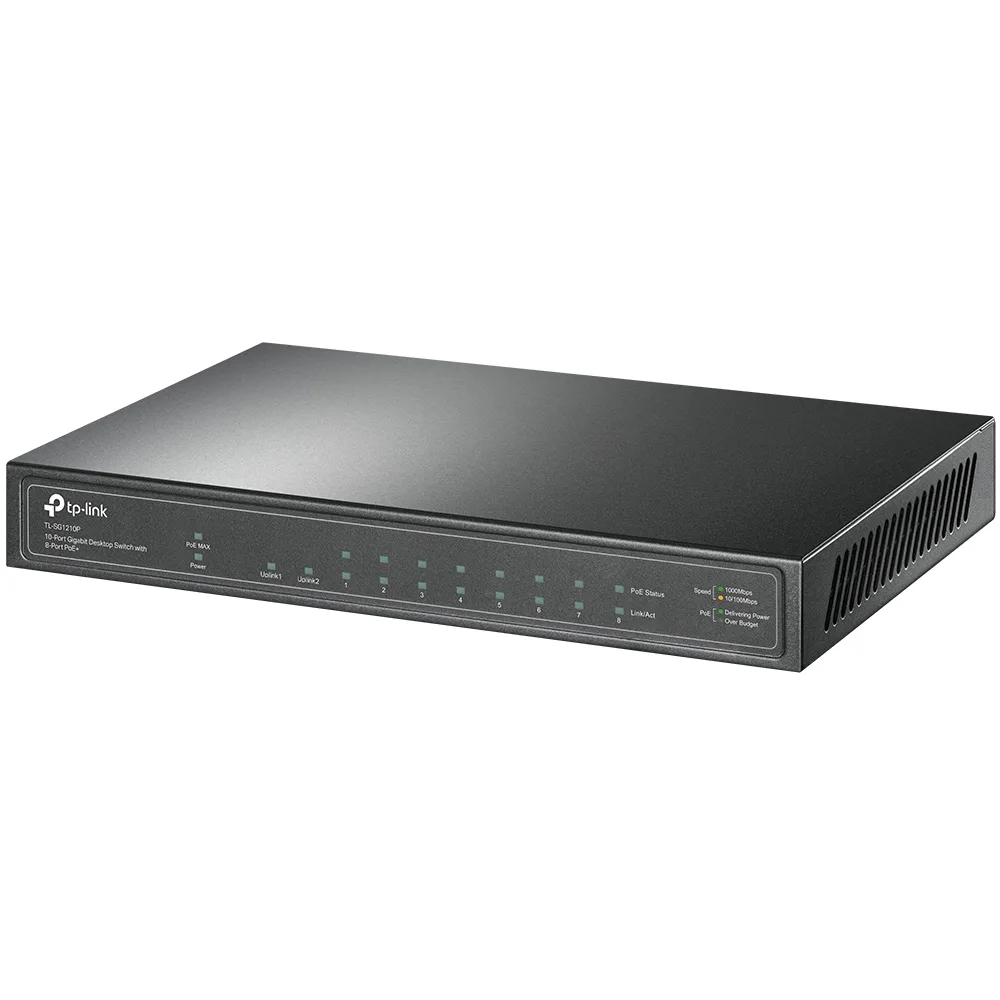

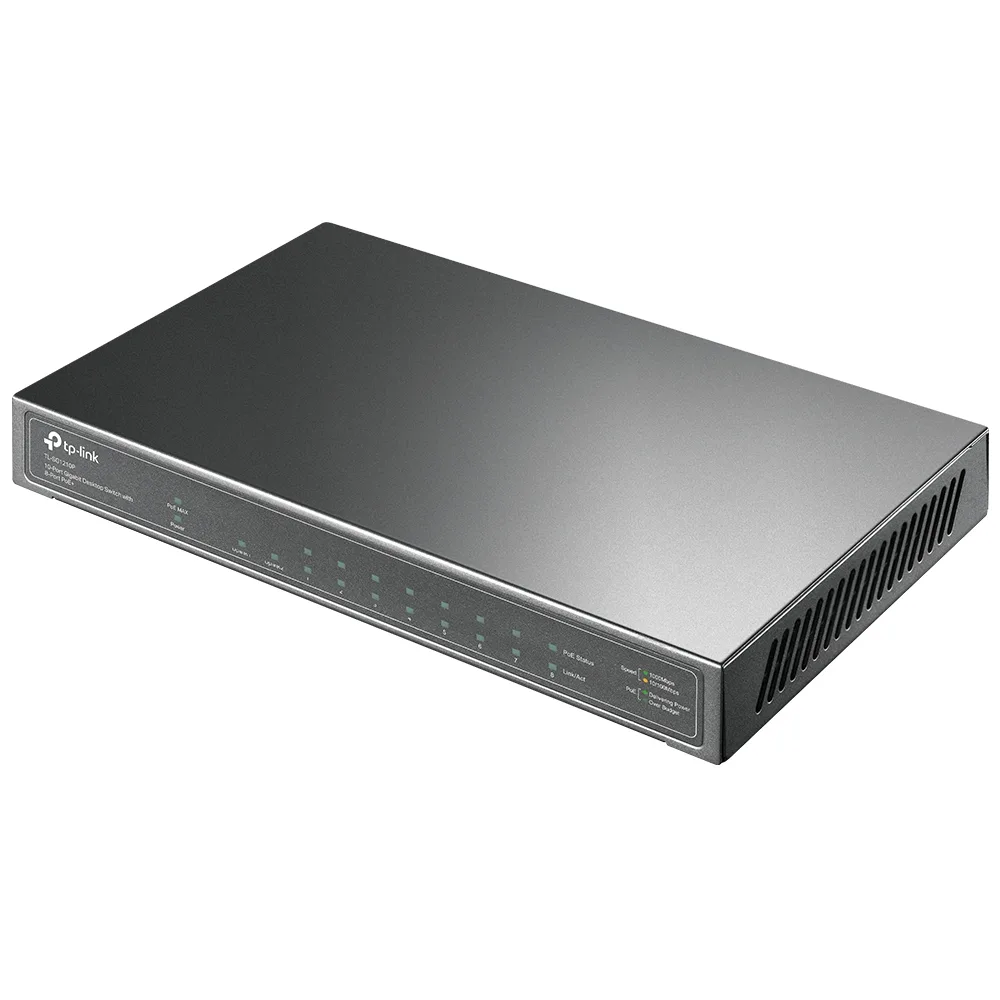

Sturdy Metal Casing
Sturdy, compact metal casing, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.

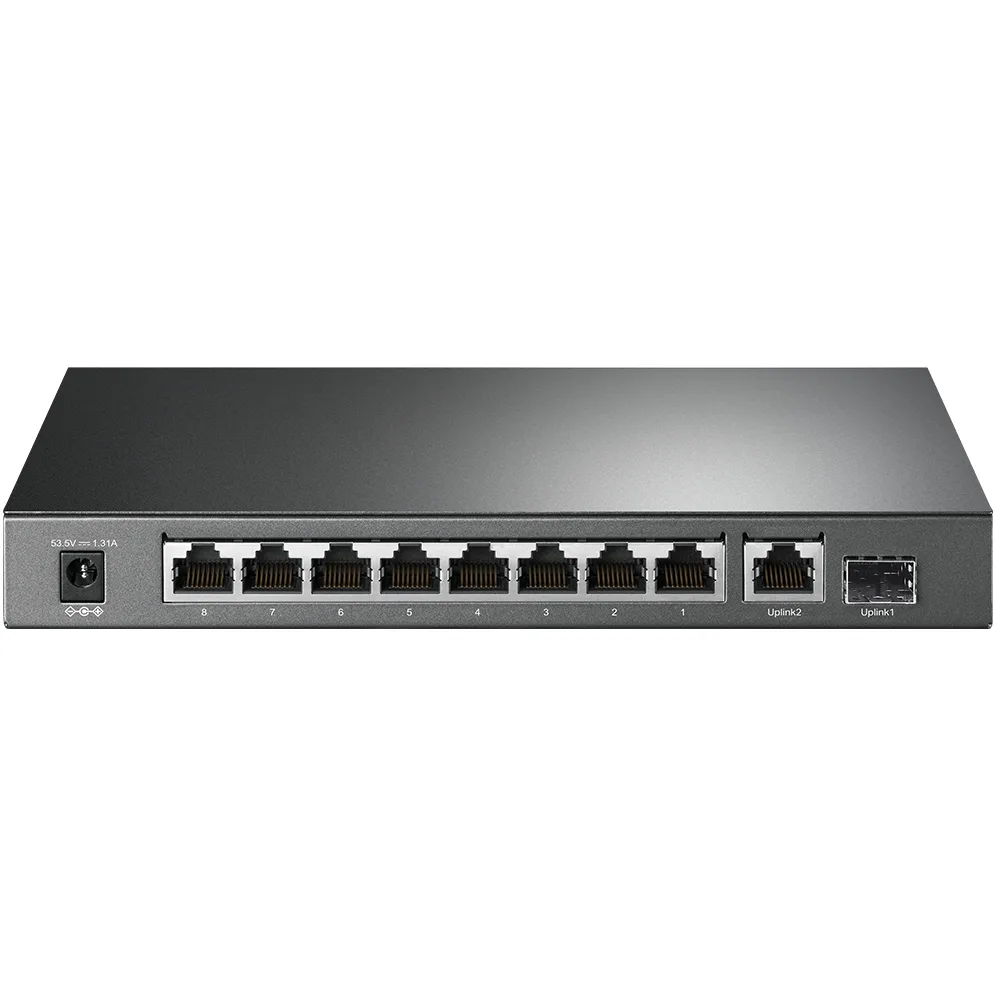

- 9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port
- With 8 PoE+ ports, transfers data and power on one single cable
- Working with IEEE 802.3af/at compliant PDs, expands home and office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports
- Easy to use, with no configuration and installation needed
Specifications
| Certification | CE, FCC, RoHS |
| MAC address table | 4000 entries |
| Packet buffer memory | 14.88 MB |
| Switching capacity | 20 Gbit/s |
| Store-and-forward | Yes |
| LED indicators | Yes |
| Housing material | Metal |
| Product colour | Grey |
| Quality of Service (QoS) support | Yes |
| Heat dissipation | 266.42 BTU/h |
| Harmonized System (HS) code | 85176990 |
| Switch type | Unmanaged |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| MAC address auto-learning supported | Yes |
| Fiber ethernet cabling technology | 1000BASE-X |
| MAC address auto-aging supported | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Input current | 1.31 A |
| Fiber type | Single-mode |
| Quick start guide | Yes |
| Manual | Yes |
| Package width | 240 mm |
| Package depth | 315 mm |
| Package height | 70 mm |
| Package weight | 1.24 kg |
| Fanless | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 9 |
| SFP module slots quantity | 1 |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power consumption (max) | 78.13 W |
| Power source | DC |
| DC input voltage | 53.5 V |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 63 W |
| Power supply included | Yes |
| Width | 209 mm |
| Depth | 126 mm |
| Height | 26 mm |
| Networking standards | IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| IGMP snooping | Yes |
Specifications provided by the manufacturer via Icecat.
