TP-Link
TP-Link Gigabit Multi-Mode Media CO
In stock - ready to ship
Estimated delivery Tuesday 29 SeptemberDispatched within 24 hours by DPD
£32.99
- £32.99 ex VAT

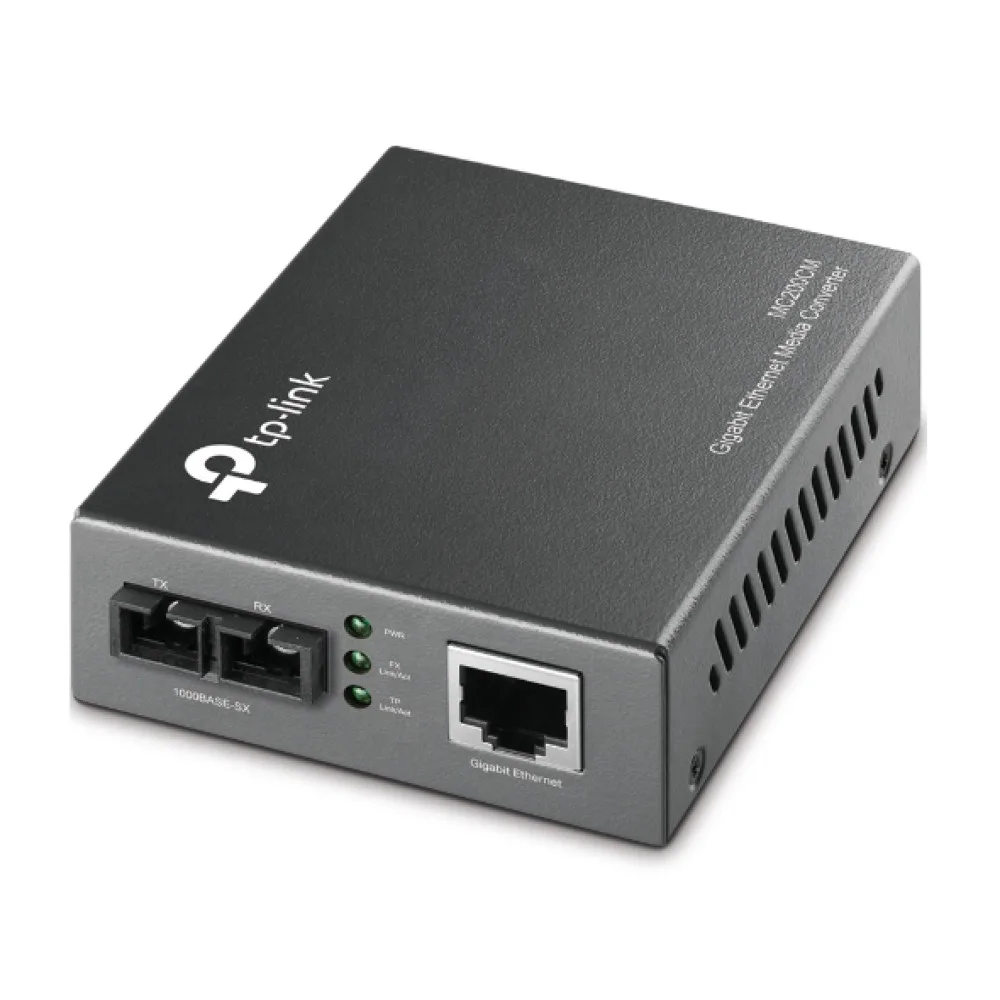

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data
Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1,800 feet (550 meters).
- 1 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Complies with IEEE 802.3ab and IEEE 802.3z
- Extends fiber distance up to 1,800 feet (550m)
Specifications
| Internal | No |
| Compliance certificates | RoHS |
| LED indicators | Yes |
| Product colour | Black |
| Fiber mode structure | Multi-mode |
| Connectivity technology | Wired |
| Harmonized System (HS) code | 85176990 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Auto MDI/MDI-X | Yes |
| Cable types supported | Cat5, Cat5e |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Manual | Yes |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Duplex system | Full, Half |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum data transfer rate | 1000 Mbit/s |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Power consumption (max) | 1.66 W |
| Width | 95 mm |
| Depth | 73 mm |
| Height | 27 mm |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
Specifications provided by the manufacturer via Icecat.
