Peerless Articulating Wall Mount 43 to 75
£411.99
- £411.99 ex VAT

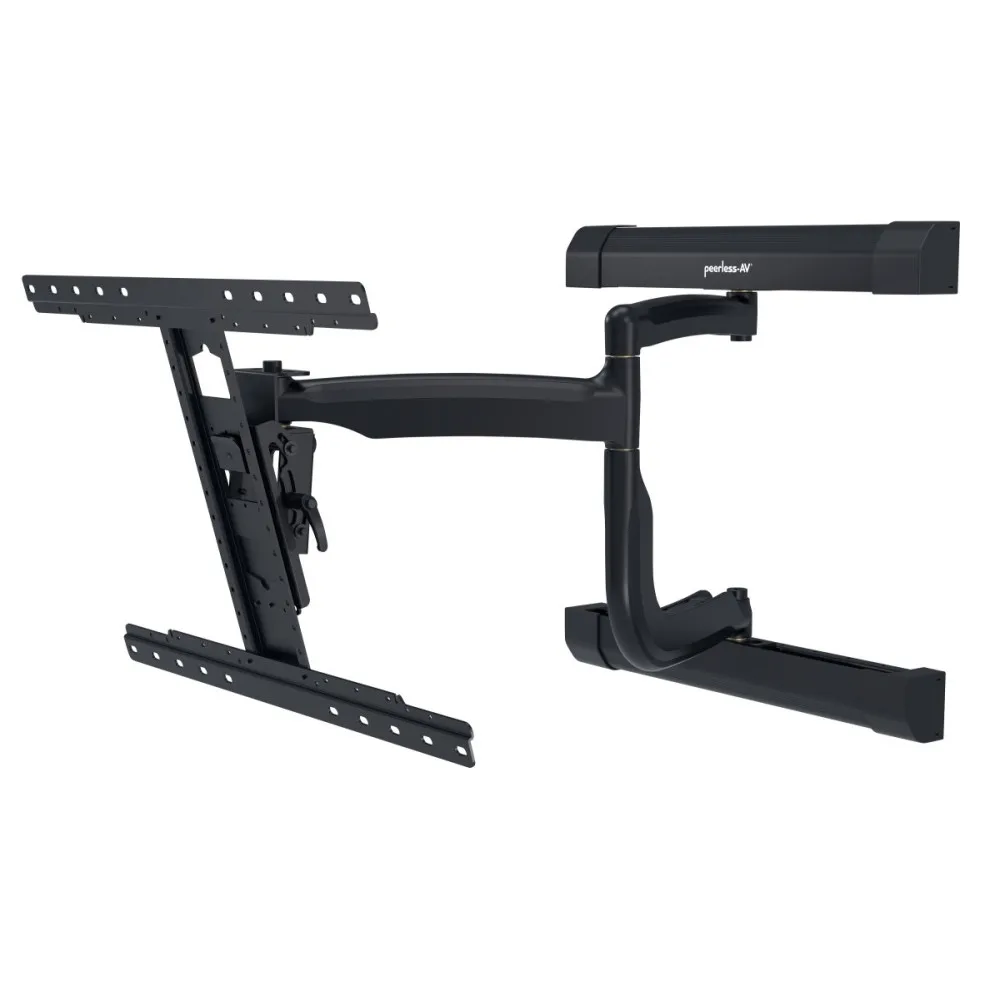

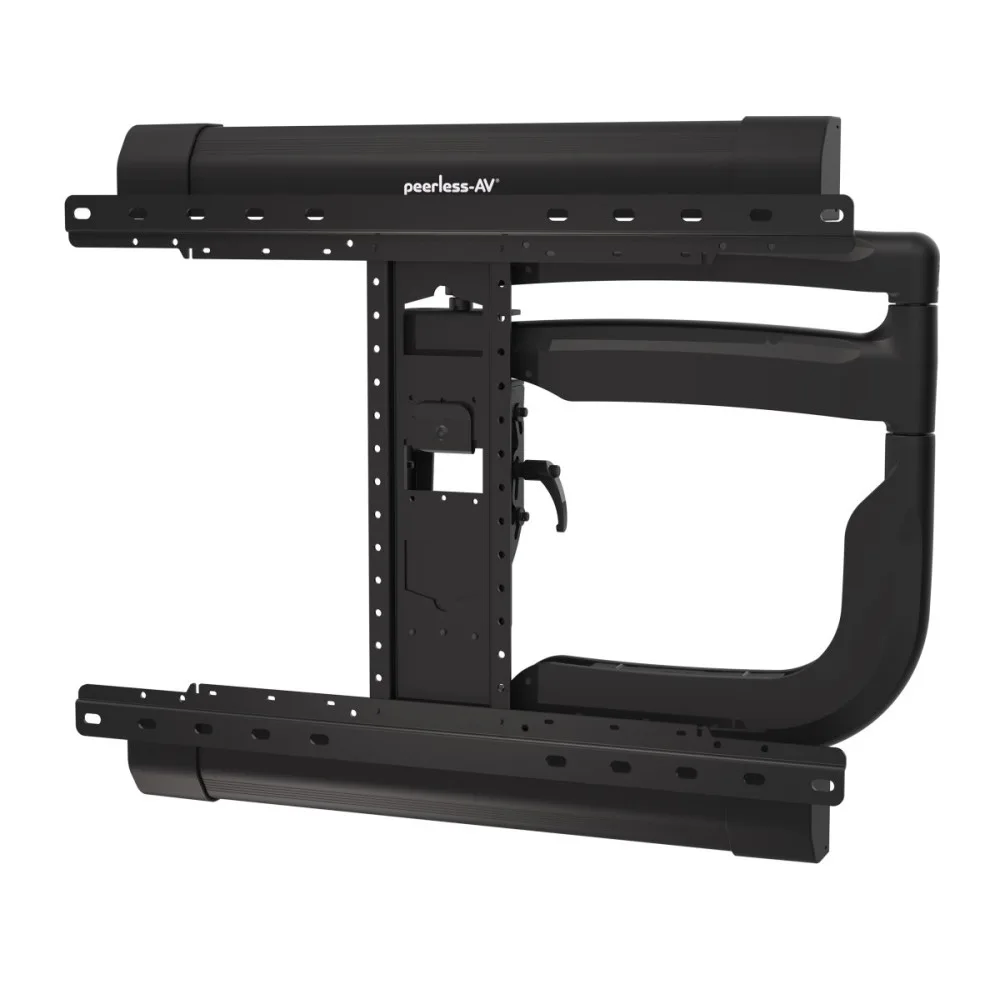

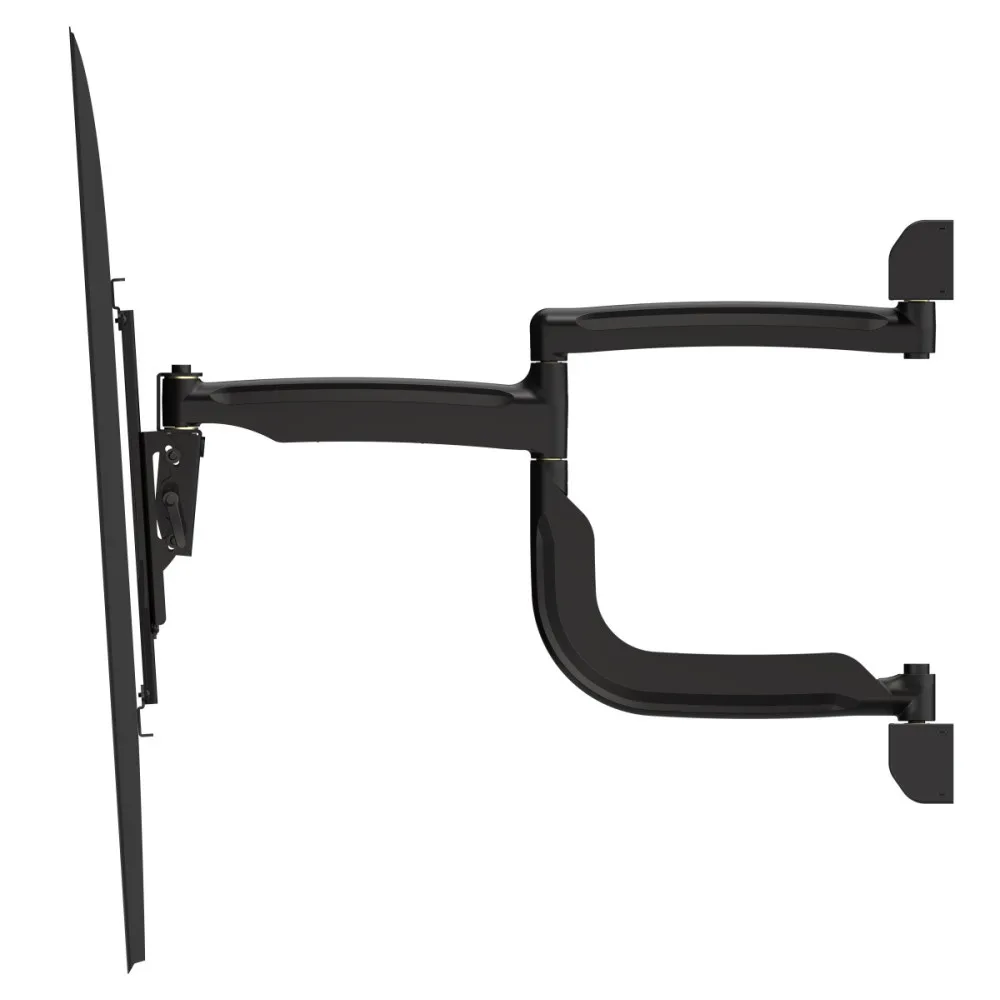

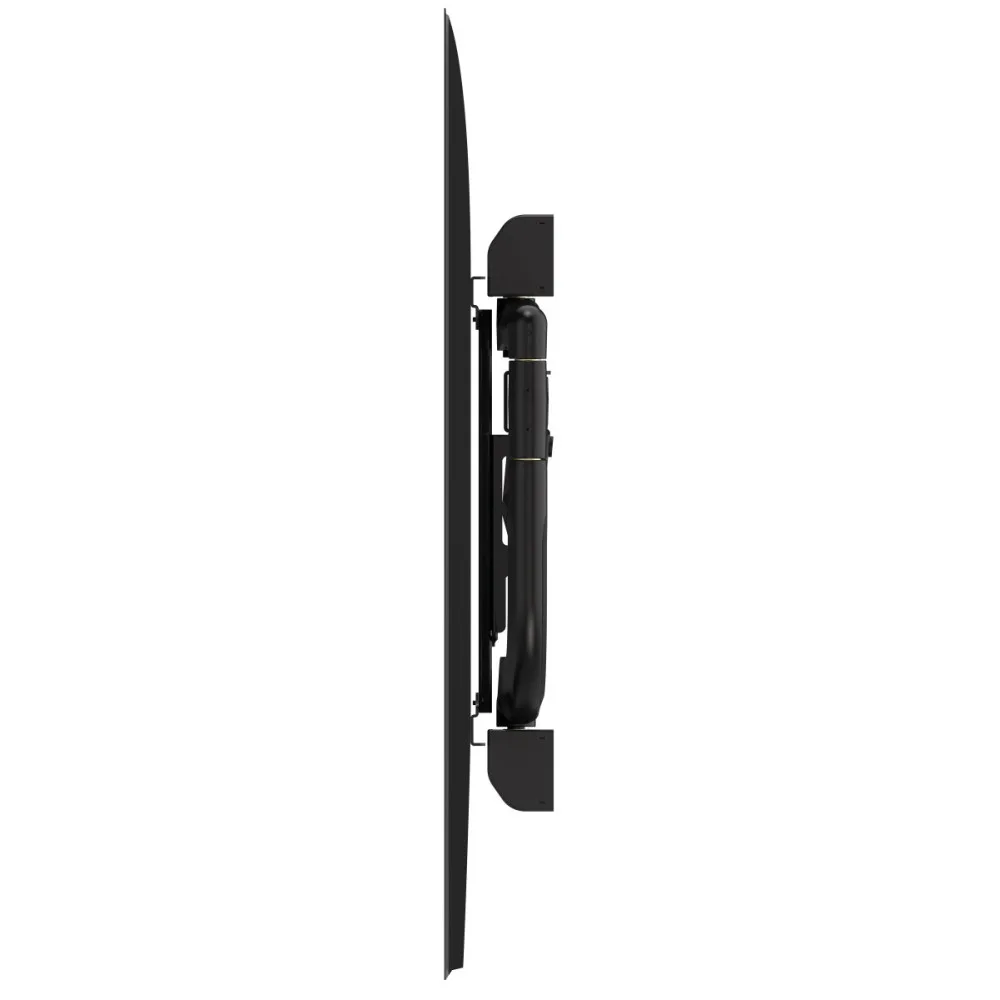

The SmartMount® Articulating Wall Arm series offers the most versatile installation features and mounting options. The I-Shaped Adaptor plate’s innovative design helps avoid blocking connections on back of display. Vertical adjustment ability allows for post installation leveling, making it easier than ever to find the perfect display position. With SA761PU, extend the display up to 26.6" (676mm) or fully-retract it to just 3.1" (79mm) from the wall for the perfect viewing position. The display can now simply be installed by a single person with the Hook-and-Hang™ system. One-Touch™ tilt technology offers +15°/-5° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.
- Universal mount accommodates 200 x 100 to 600 x 400mm VESA mounting patterns
- Retracts to hold display just 3.10" (79mm) from the wall
- Extends up to 26.60" (676mm)
- ±90° degrees of pivot allows for perfect display positioning
- Easy leveling ±5° after display installation
- Quick and easy, Hook-and-Hang™ one person installation
- I-shaped adaptor plate helps avoid blocking connections on back of display
- +15°/-5° vertical tilt movement for the ideal viewing angle
- Landscape or Portrait mounting options increases display versatility
- Stylish wall plate covers create a finished look and are easy to install and remove
Specifications
| Mounting type | Wall |
| Easy to install | Yes |
| Height adjustment | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 15° |
| Pivot angle | 0 - 90° |
| Cable management | Yes |
| Height adjustment range | 0 - 13 mm |
| Distance to the wall (min) | 7.9 cm |
| Distance to the wall (max) | 67.6 cm |
| Product colour | Black |
| Maximum screen size | 190.5 cm (75") |
| Easy to adjust | Yes |
| Number of displays supported | 1 |
| Maximum weight capacity | 57 kg |
| Minimum screen size | 99.1 cm (39") |
| Minimum VESA mount | 200 x 100 mm |
| Maximum VESA mount | 600 x 400 mm |
| Depth (max) | 67.6 cm |
| Manual | Yes |
| Mounting kit | Yes |
| Package type | Box |
| Orientation | Landscape/Portrait |
| Width | 622 mm |
| Height | 505 mm |
| Weight | 11.1 kg |
| Depth (min) | 7.9 cm |
Specifications provided by the manufacturer via Icecat.
