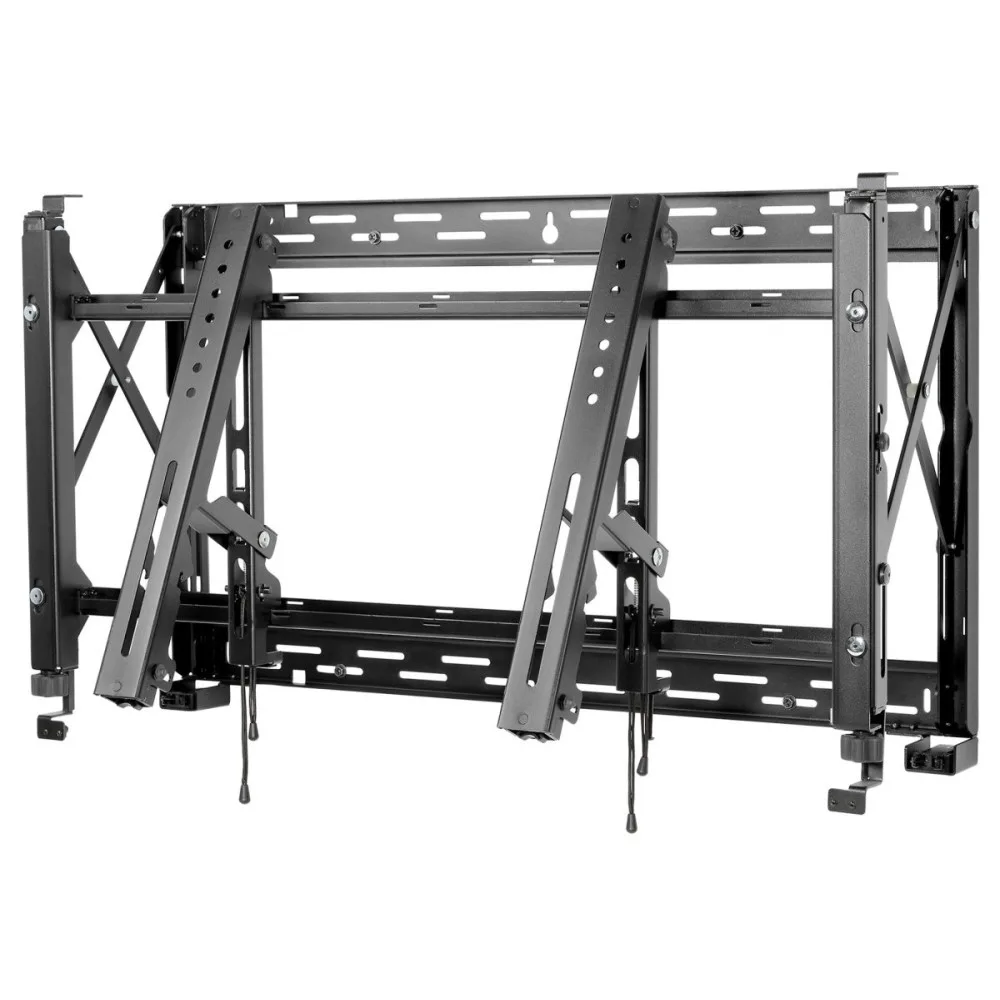

Peerless Fullservice Video Wall Mount with QU
£402.99
- £402.99 ex VAT
Video walls should be easy to configure, quick to install, and a snap to maintain. The DS-VW765-LQR Full-Service Video Wall Mount with a Quick Release from Peerless-AV is designed for quick service access in recessed video wall applications. It provides versatility demanded by installers. With the quick-release functionality, users have the ability to articulate the display from the wall by gently pressing on the front of the display. The DS-VW765-LQR has a no-tool-required micro-adjustment feature and provides easy-access to any display, creating the ideal video wall. The custom wall plate spacers eliminate guesswork and on-site installation calculations and measurements, reducing installation time and cost. This innovative design, combined with a ready-to-install mount, makes this the fastest video wall installation. Loaded with time saving features, this Full-Service Video Mount is the ultimate video wall mounting solution.
Features

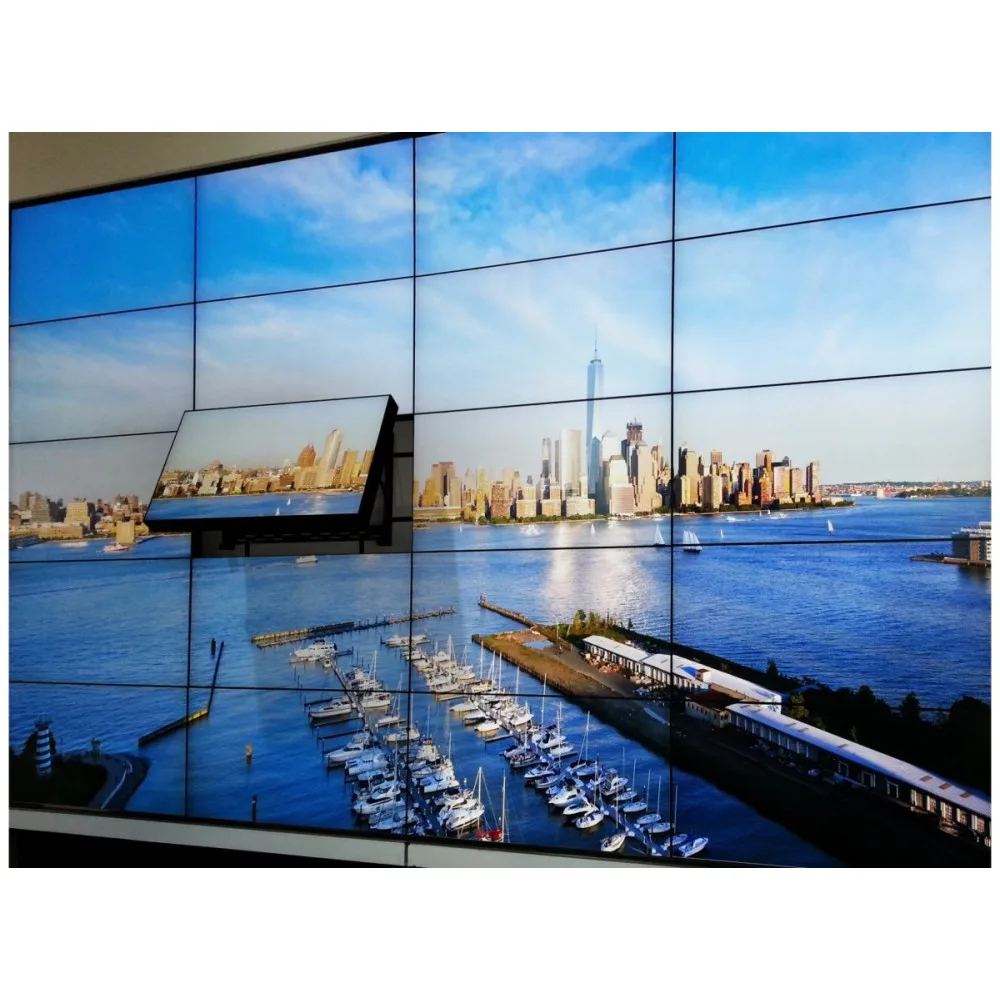

- Quick release pop out mechanism provides convenient display access in recessed applications
- Quick release can be disabled with a locking screw to prevent unintentional pop-outs
- Carriage extension force can be adjusted to accommodate the weight of the display, allowing the quick release to activate with gentle force
- Modular mount for unlimited video wall display configurations
- Custom wall plate spacers eliminate the guesswork and on-site installation calculations
- Tool-less micro-adjustments at 8 points allows the mount to overcome uneven walls to create a seamless video wall display
- Pull-out/prop-open mechanism provides quick service access
- Integrated cable management tie-backs make display-to-display cabling simple
- Compatible up to VESA 600 x 400mm
- Integrated cable management allow cables to move in and out with the display
- Modular mount for unlimited video wall display configurations
- Security hardware option deters tapering and theft
- 1.5" of fine tune adjustment on each of the X, Y and Z axis
- Easy hang wall plate is compatible with the Peerless-AV install app for a simplified install
- Gentle, press-to-release quick release mechanism provides convenient display access
Specifications
| Compliance certificates | RoHS |
| Mounting type | Wall |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 200,600 x 400 |
| Distance to the wall (min) | 7.8 cm |
| Distance to the wall (max) | 9.7 cm |
| Product colour | Black |
| Maximum screen size | 165.1 cm (65") |
| Harmonized System (HS) code | 85299097 |
| Number of displays supported | 1 |
| Maximum weight capacity | 56.8 kg |
| Minimum screen size | 116.8 cm (46") |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Depth (max) | 29.1 cm |
| Mounting kit | Yes |
| Package width | 943 mm |
| Package depth | 108 mm |
| Package height | 594 mm |
| Package weight | 17.6 kg |
| Quantity per pack | 1 pc(s) |
| Width | 904 mm |
| Depth | 97 mm |
| Height | 543 mm |
| Weight | 14.8 kg |
Specifications provided by the manufacturer via Icecat.
