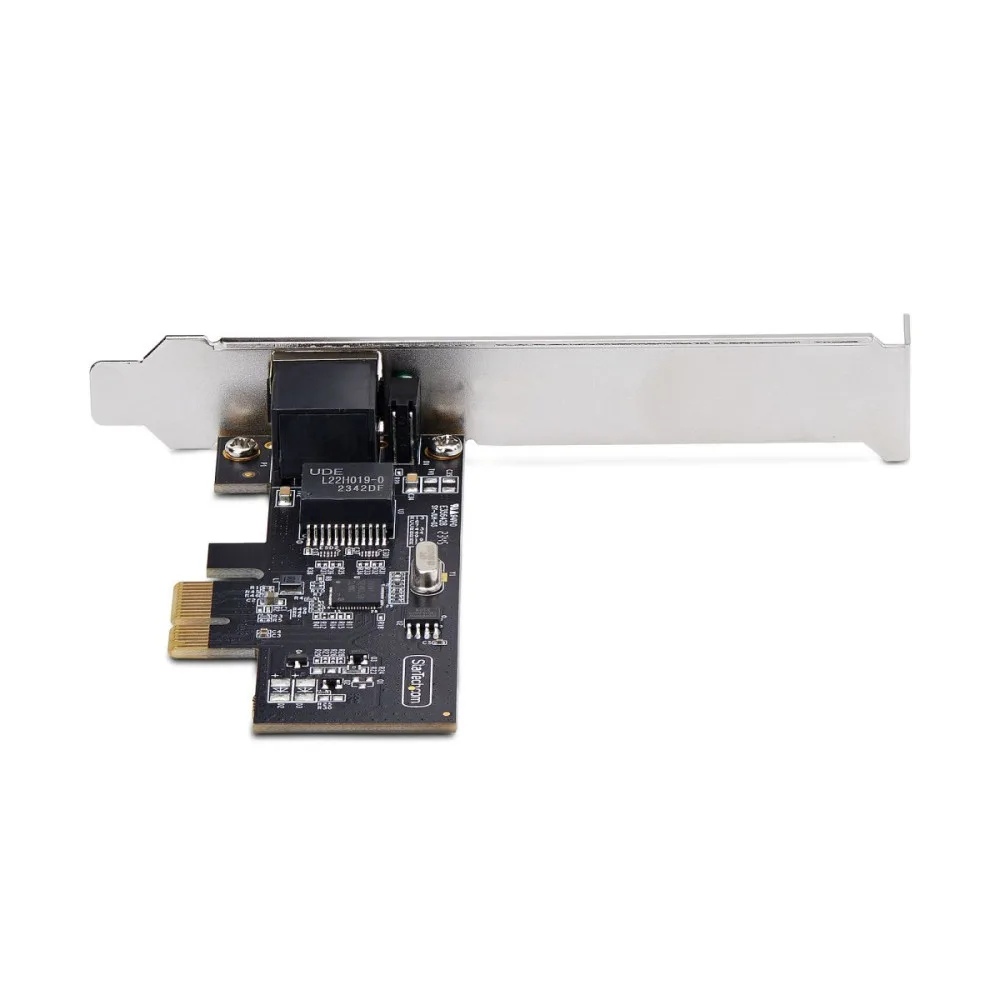

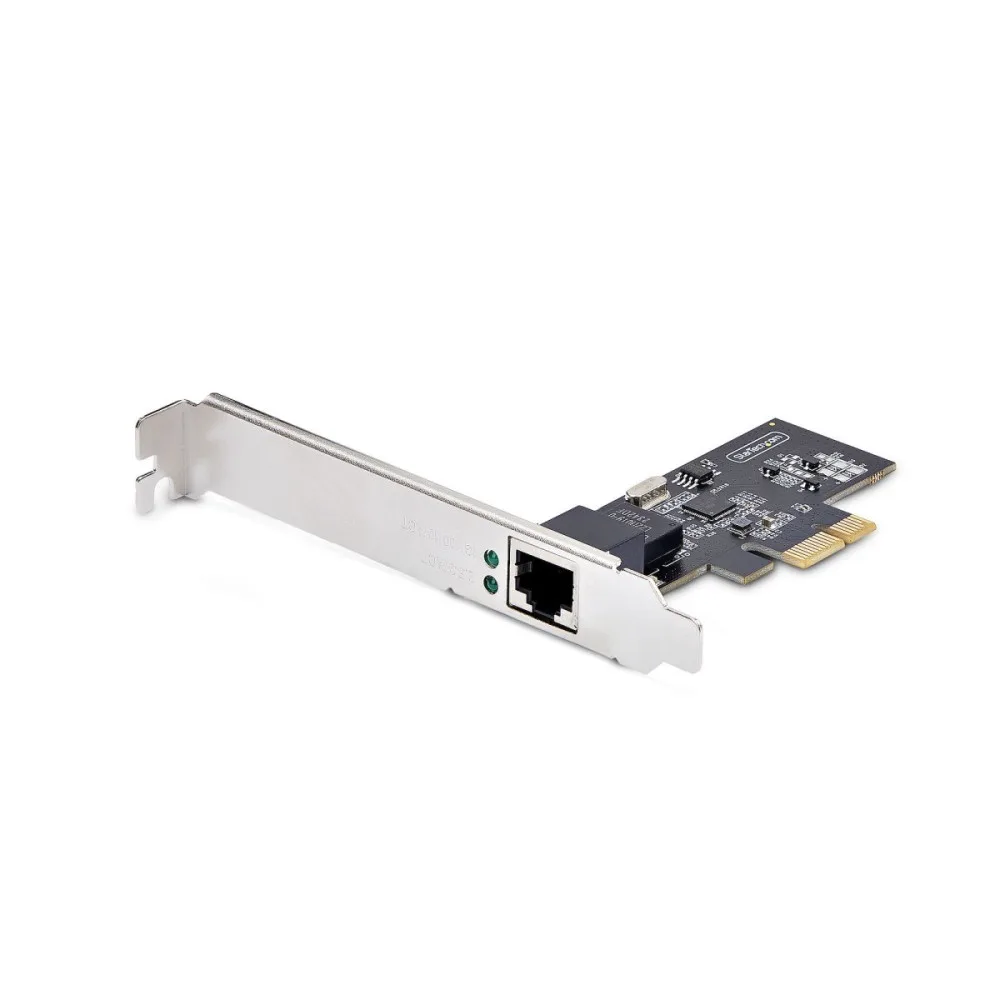

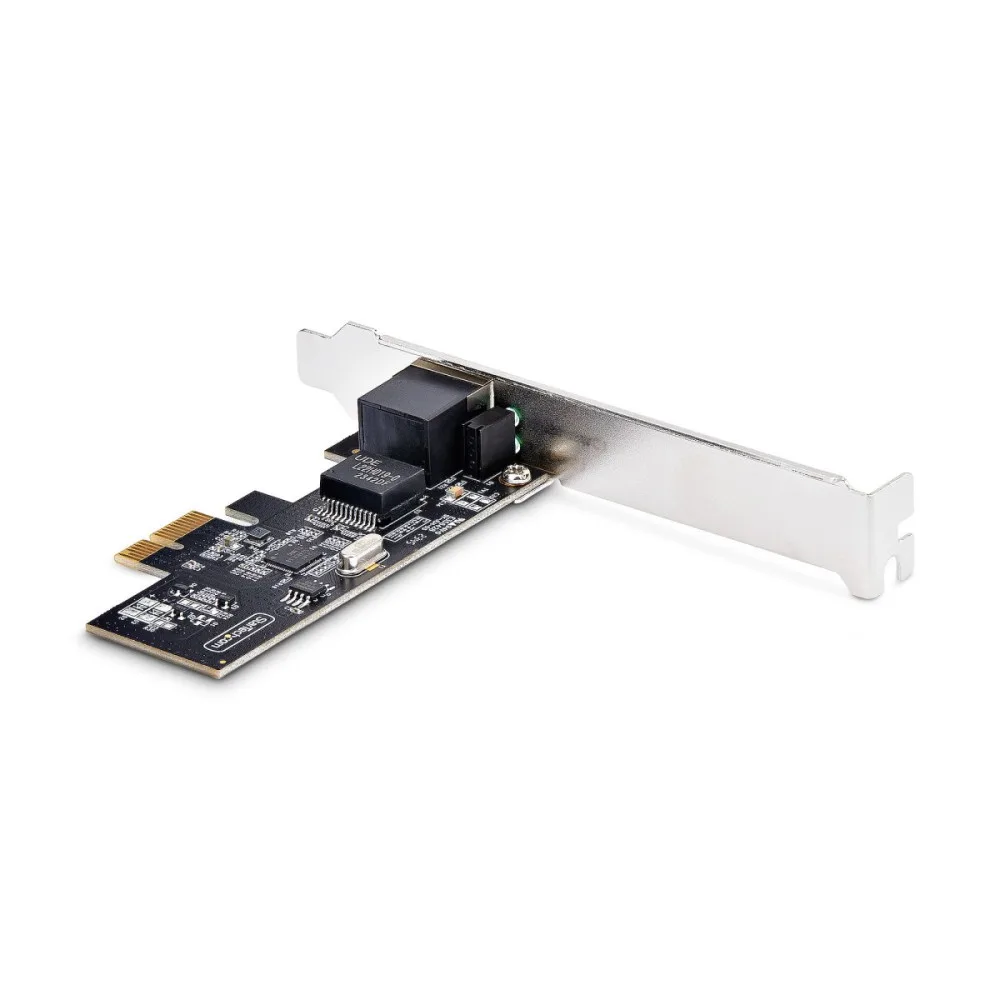

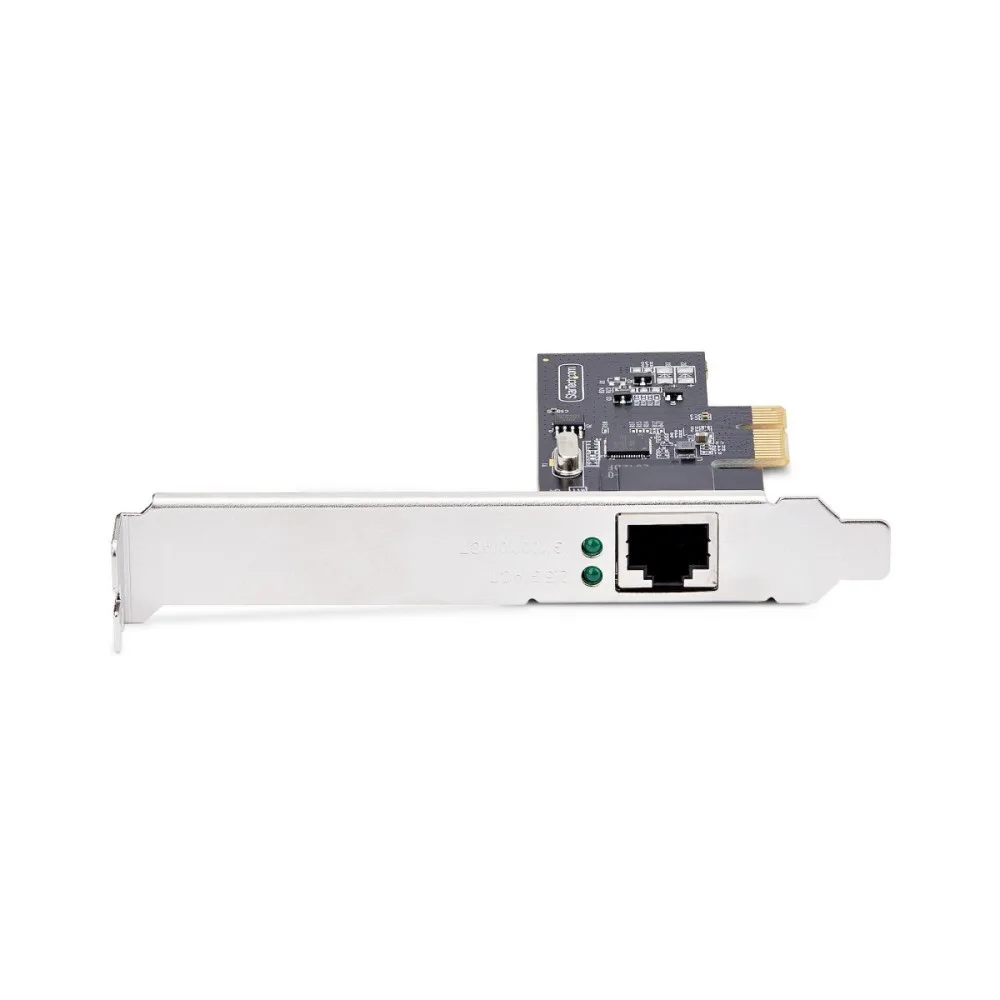

StarTech.com 1-PORT 2.5g PCIE Network Card
£41.99
- £41.99 ex VAT
PCIe network card with Intel® I225-V chip features multi-Gigabit speeds with NBASE-T support
This 2.5 GbE network interface card (NIC) features an Intel I225-V chipset with Intel vPro technology, to enhance performance and data integrity. Variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support for both new and legacy network hardware. Leverage existing Cat5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration.
Increased Network Speed
The PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTP, online or local storage/backup, and the streaming of online content - while reducing network slowdowns. Access up to 2.5GBASE-T speeds over Cat5e (or better) cabling, to maximize existing networks and equipment.
Enhance Existing Hardware
The network interface card connects via an available x1 PCI Express 2.0 (or higher) expansion slot. The card ships in a standard profile bracket and includes a low-profile bracket for installation into small form factor systems and servers. This Ethernet NIC card is compatible with Windows, Windows Server, and Linux.
This card supports the following advanced features: PXE boot, WoL, VLAN tagging, 9 K jumbo frame, full-duplex, and Intel vPro technology.
- 1-PORT 2.5G ETHERNET CARD: High-performance PCIe 2.5Gbps network card with Intel I225-V chip; Multi-gigabit; Leverage existing Cat5e/Cat6 (or better) cabling; NBASE-T compatible (802.3bz); PCI Express 2.0 x1
- IT MANAGEMENT: Intel vPro for remote management and troubleshooting; PXE boot enabled for centralized OS deployment and updates; 9K jumbo frame for reduced packet overhead; Remote system boot via WoL; VLAN support for efficient network management
- BUILD QUALITY: LAN card features built-in heat sink to keep the controller chip cool for optimal performance, LED indicators for link status/speed, and LAN transformers to maintain signal quality and reduce EMI for reliable communications
- COMPATIBILITY: 2.5GBASE-T variable speed options (2.5G/1G/100M/10M) with auto-negotiation; Multi-Gigabit PC network interface card is compatible with Windows, Windows Server, VMware, and Linux; Low-profile bracket included for hardware compatibility
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 2.5Gbps Network Card is backed for two years, including free lifetime 24/5 multi-lingual technical assistance
Specifications
| Internal | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| LED indicators | Yes |
| Product colour | Black |
| Interface | Ethernet |
| Component for | PC/Server |
| Connectivity technology | Wired |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 448 mm |
| Master (outer) case length | 379 mm |
| Master (outer) case height | 329 mm |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Wake-on-LAN ready | Yes |
| Auto-negotiation | Yes |
| Full duplex | Yes |
| Auto MDIX IEEE | Yes |
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Chipset | Intel I225-V |
| Quick installation guide | Yes |
| Mounting brackets included | Yes |
| Package width | 216 mm |
| Package depth | 150 mm |
| Package height | 36 mm |
| Ethernet LAN (RJ-45) ports | 1 |
| Host interface | PCI Express |
| Maximum data transfer rate | 2500 Mbit/s |
| PCI version | 2.0 |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp |
| Server operating systems supported | Windows Server 2019, Windows Server 2022 |
| Linux operating systems supported | Yes |
| Width | 89 mm |
| Depth | 121 mm |
| Height | 15 mm |
| Weight | 100 g |
| Networking standards | IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
Specifications provided by the manufacturer via Icecat.
