StarTech.com 16 Port Professional USB to Serial A
£446.99
- £446.99 ex VAT

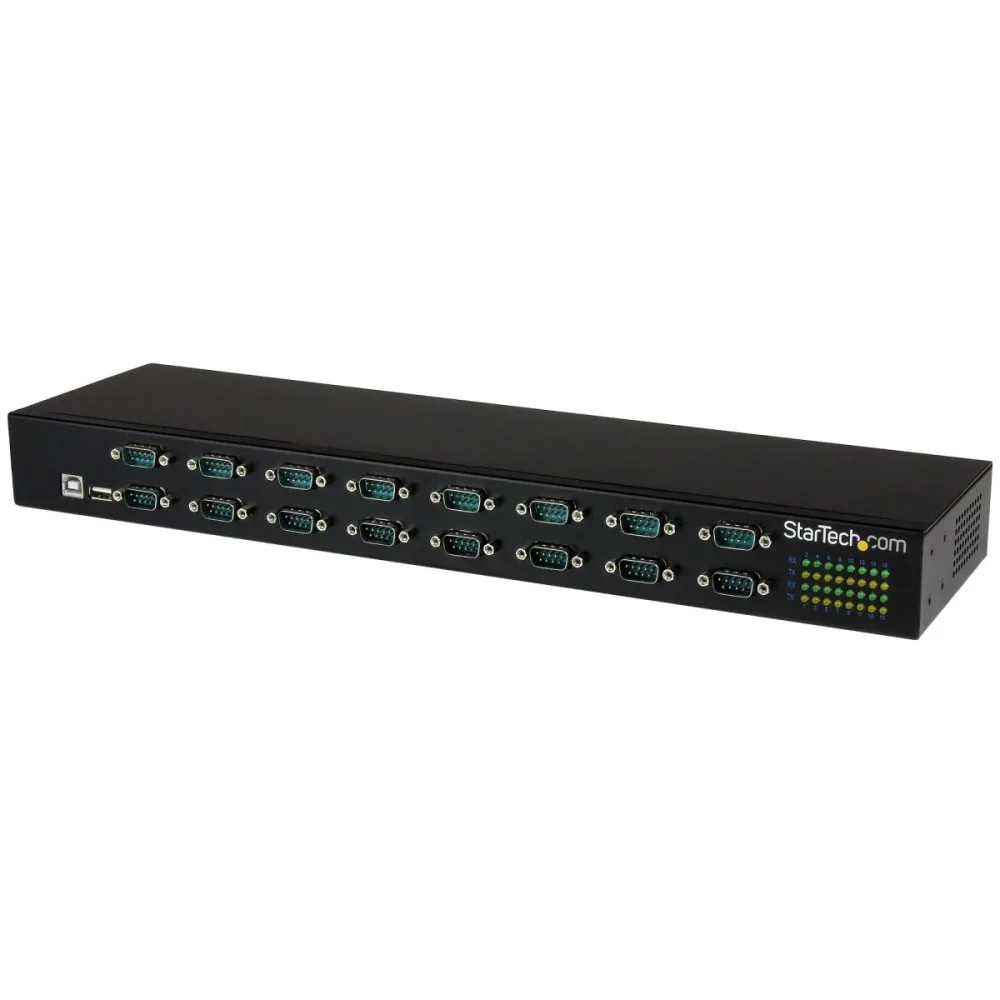

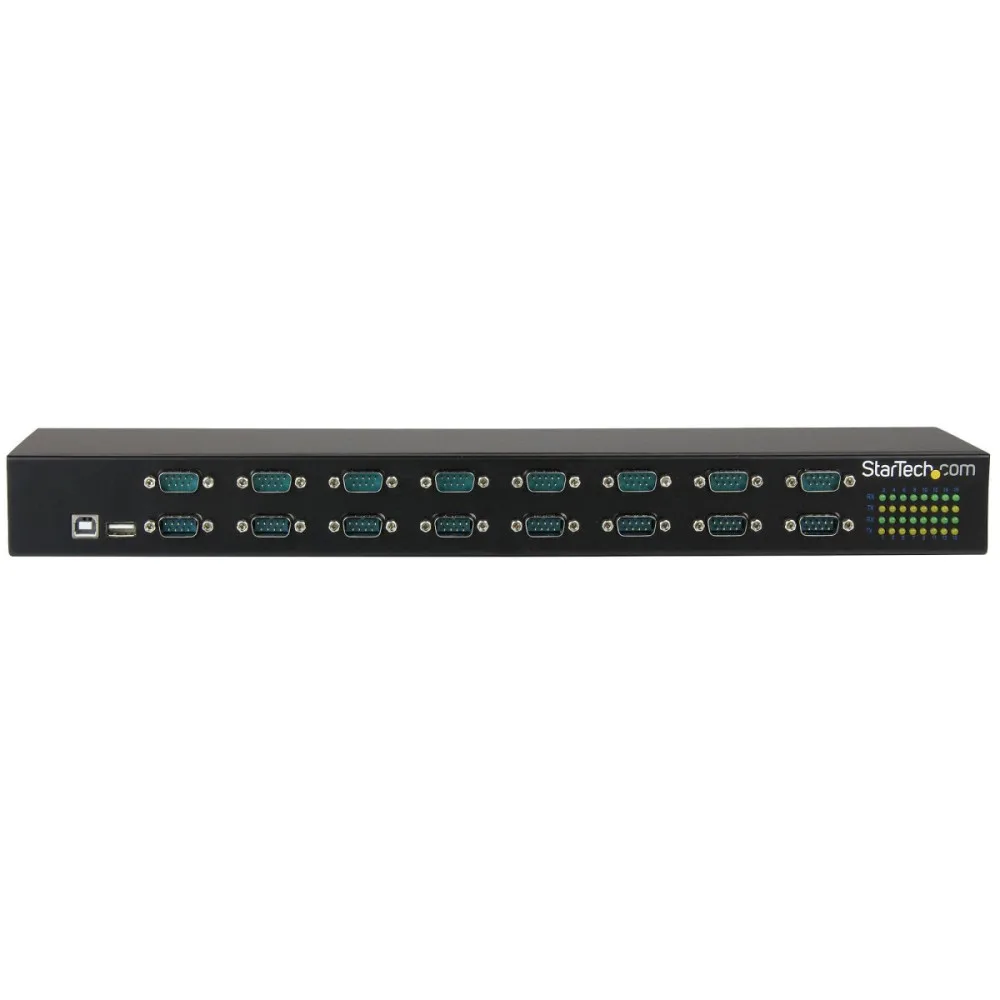

Convert a USB port into 16 RS232 serial ports in an industrial rack-mountable chassis - and daisy chain multiple hubs for a scalable solution
Here's an easy and cost-efficient way to add RS232 serial capability to your industrial setting. This 16-port USB-to-serial adapter hub features a sturdy, rack-mountable chassis, and supports daisy chaining, so you can connect multiple hubs together to increase your serial device port count.
A scalable solution for changing needs
This rack-mountable USB serial hub lets you add 16 serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a higher cost serial hub.
Providing full control of your serial components from a single device, the USB serial hub is ideal for a multitude of applications including: industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems.
Built-in convenience
The hub features COM port retention, which retains the assigned serial COM port values. This ensures that the same values are automatically re-assigned to the port provided by the adapter, in the event it is disconnected and re-connected to the host computer.
Meets the demands of industrial environments

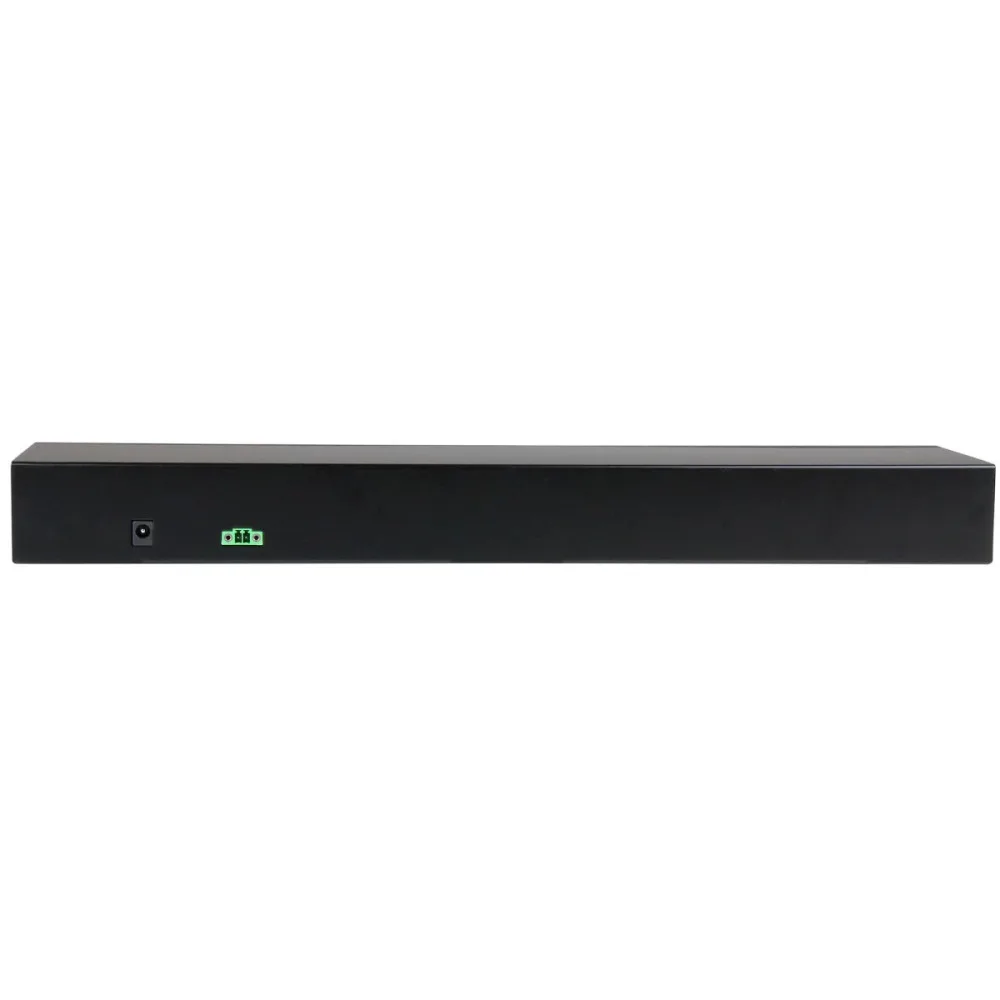

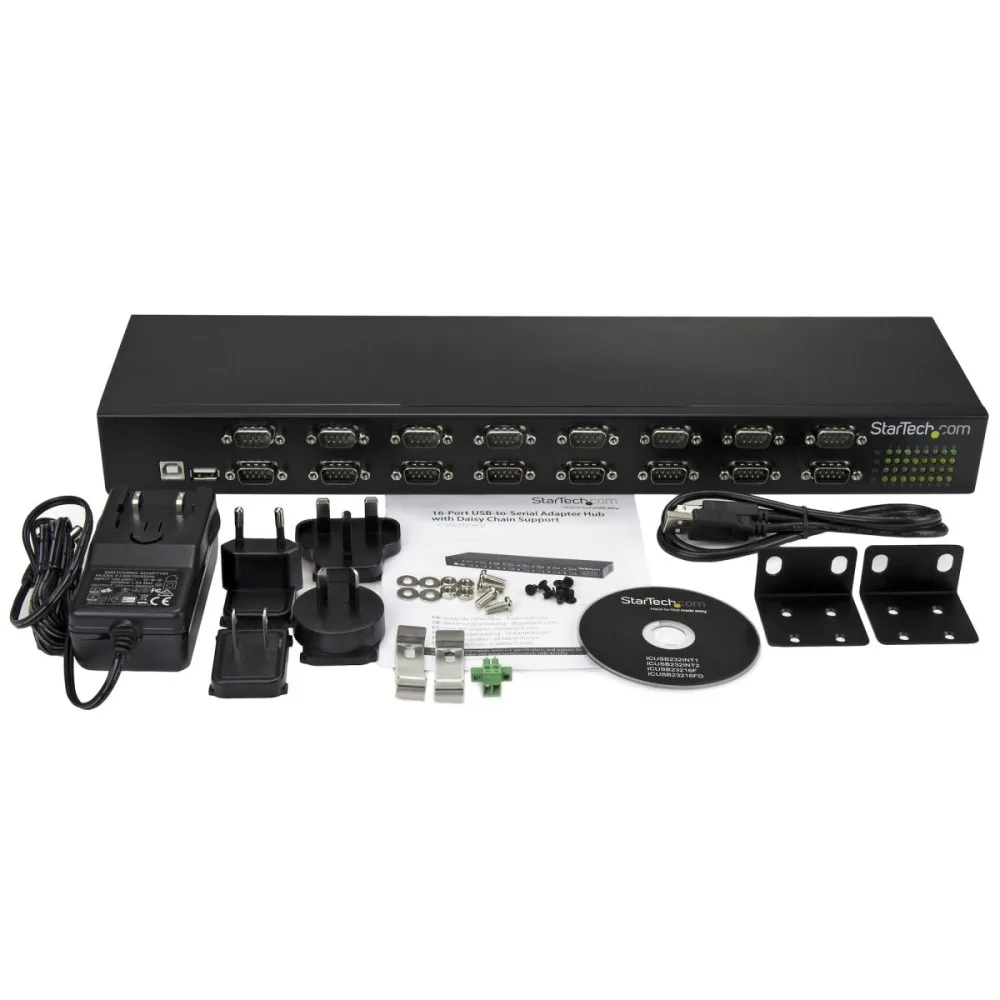

With its all-metal chassis, this rugged, rack-mountable hub fits into standard 19-inch server storage racks to provide an efficient industrial serial solution. It supports an extended operating temperature range of -40°C to 85°C (-40°F to 185°F); ensuring reliable performance even in the harshest environments. The USB-serial hub includes both an AC adapter and terminal block power, providing versatile power options.
- Gain 16 RS232 serial port interfaces through a single USB port
- Connect multiple hubs together through daisy chain functionality
- 921.6Kbps baud per port
- 256-byte transmit, 128-byte receive FIFO
- Rack-mountable design
- COM port retention
- Extended operating temperature range: -40°C to 85°C (-40°F to 185°F)
- Durable all-metal chassis
- Low USB bandwidth consumption
- USB 2.0 compatible
Specifications
| Compliance certificates | CE, RoHS |
| LED indicators | Yes |
| Housing material | Steel |
| Rack mounting | Yes |
| Product colour | Black |
| Mean time between failures (MTBF) | 49337 h |
| Power plug type | Type N |
| Baud rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Data bits | 7, 8 |
| Stop bits | 1, 2 |
| Data transfer rate | 480 Mbit/s |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -65 - 150 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Chipset | FTDI - FT232RL |
| Input current | 1.5 A |
| Input voltage | 100 - 240 V |
| RS-232 ports | 16 |
| Ports quantity | 16 |
| AC adapter included | Yes |
| Cables included | USB |
| Quick installation guide | Yes |
| Included power plug types | AU, EU, NA, UK |
| Hub interfaces | Serial |
| Parity bit | Even, Mark, No, Odd, Space |
| Host interface | USB 2.0 Type-B |
| Terminal block port | Yes |
| Power consumption (max) | 36 W |
| Output voltage | 12 V |
| Output current | 3 A |
| DC-in jack | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Other operating systems supported | Windows XP Embedded |
| Linux operating systems supported | Yes |
| Width | 120 mm |
| Depth | 430 mm |
| Height | 45 mm |
| Weight | 1.55 kg |
| Sustainability compliance | Yes |
Specifications provided by the manufacturer via Icecat.
