StarTech.com 3X Monitor Docking Station
£211.99
- £211.99 ex VAT
Universal triple-monitor dock compatible with macOS, Windows, and ChromeOS
This universal docking station offers high-resolution display support and broad OS compatibility to simplify device management and user experience, making it ideal for modern professional workspaces including hot desks and mixed-device environments.

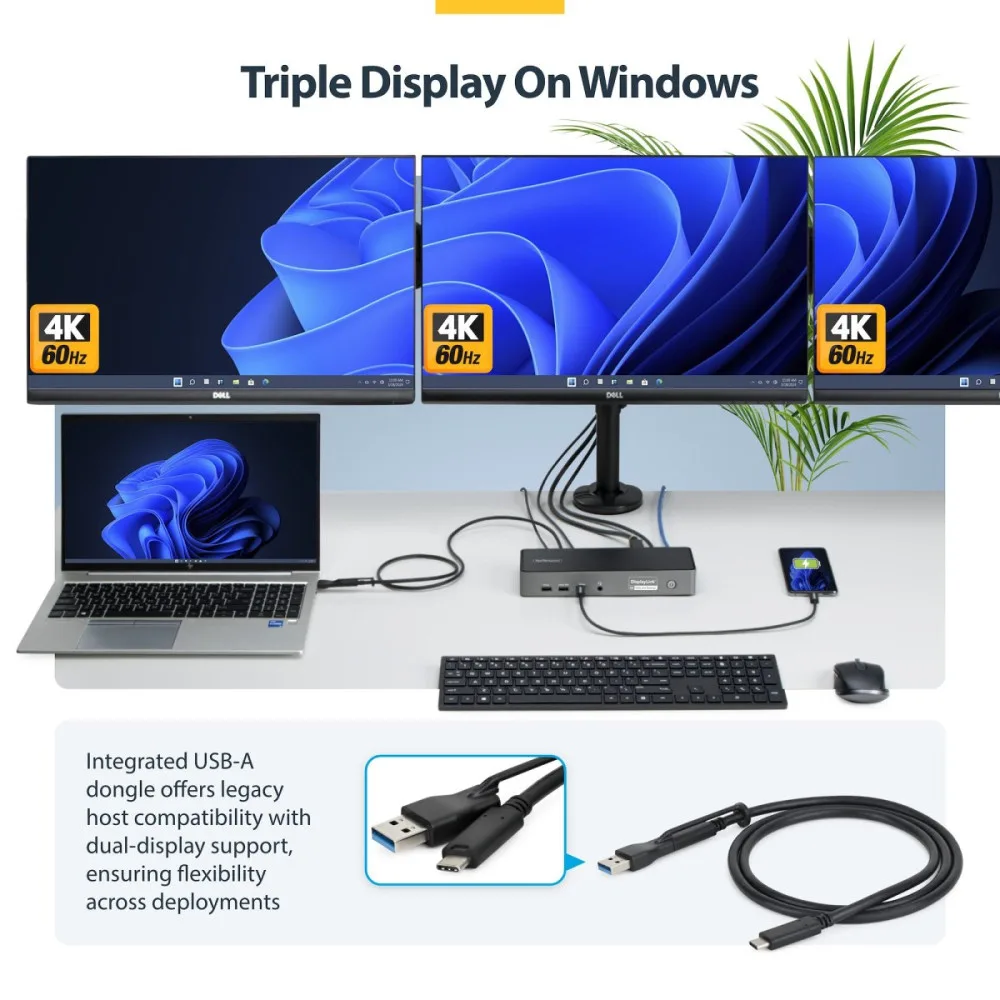

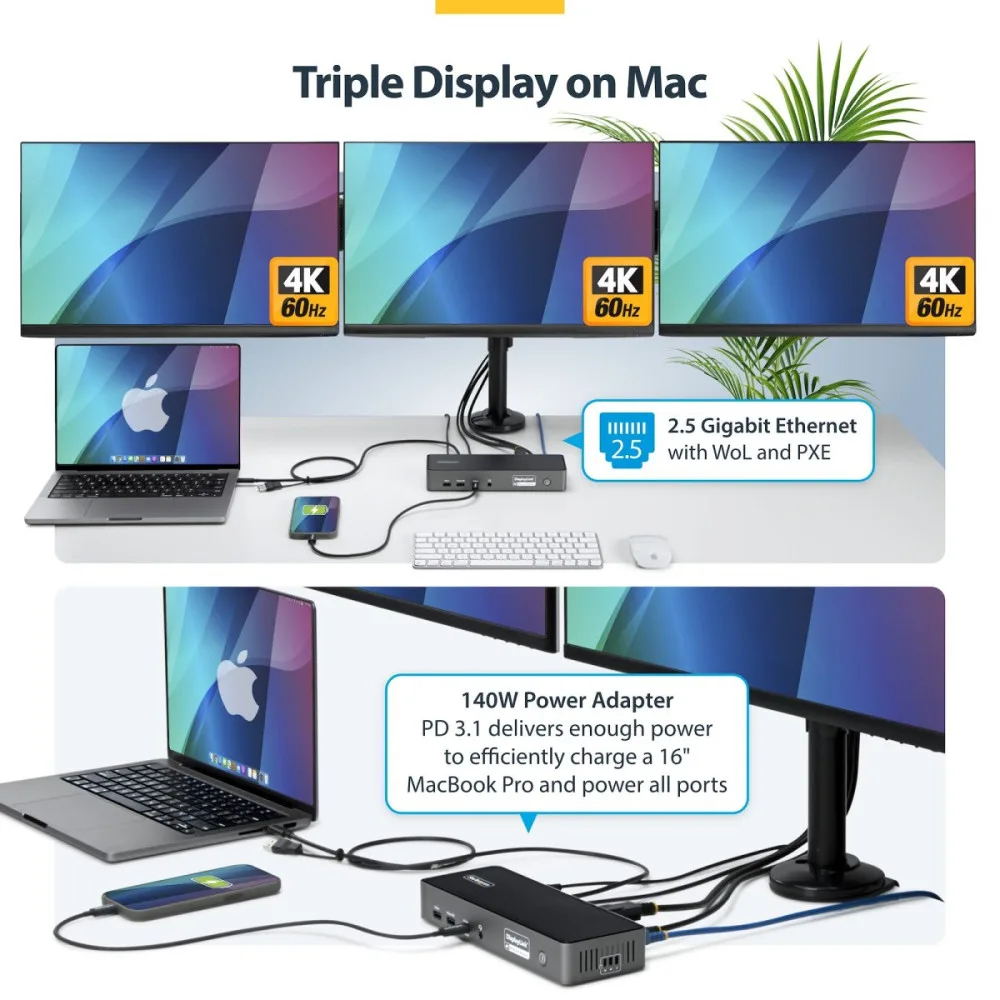

Triple 4K Display Support & 140W USB-C Charging
Support up to three 4K 60Hz monitors via USB-C while delivering up to 140W of power to high-performance laptops. A USB-A adapter extends compatibility to legacy systems, enabling flexible dual-display setups in shared workstations and hybrid IT environments.
GPU Agnostic for Cross-Platform IT Deployments
DisplayLink-based HDMI and DisplayPort outputs enable multi-monitor setups on macOS, Windows, and ChromeOS. The USB-C video output port leverages the laptop's built-in GPU to deliver high-performance video output. A unified driver experience simplifies hot desk provisioning, reduces IT support overhead, and ensures consistent performance across transient and mobile workstations.
Enterprise-Grade Networking & Physical Security
The integrated 2.5GbE port ensures high-speed data transfers and supports PXE Boot, Jumbo Frames, and Wake-on-LAN. Built-in lock slots and optional mounting solutions (SSPMSUDWM, DOCK-NUC-VESA-MOUNT, SSPMSVESA) enhance the physical security of the docking station.

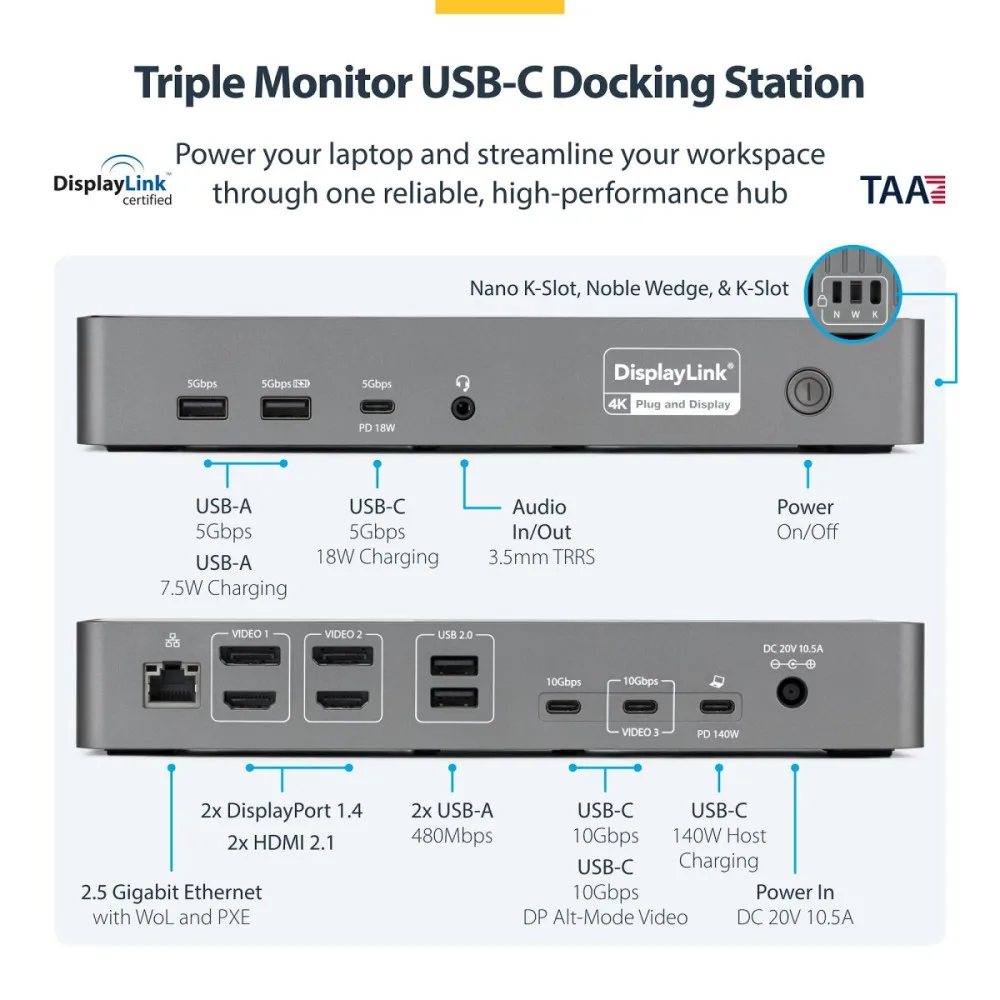

- <b>Universal 140W USB-C Dock</b>: Supports triple 4K 60Hz displays and delivers up to 140W power over USB-C for high-performance laptops; USB-A adapter offers legacy host compatibility with dual-display support, ensuring flexibility across deployments
- <b>Cross Platform Support</b>: Streamline deployment across diverse environments with DisplayLink-based HDMI and DisplayPort outputs; USB-C video output utilizes the laptops GPU for higher video performance; Multi-monitor support for macOS, Windows, and ChromeOS
- <b>2.5G Ethernet for High-Speed Networking</b>: Transfer large files or work directly from the cloud with a reliable 2.5GbE connection; Supports Jumbo Frames for lower CPU overhead and improved throughput, plus PXE Boot and Wake-on-LAN for IT-managed deployments
- <b>Mounting and Security</b>: Universal dock features built-in lock slots for physical security; Supports surface or VESA mounting to keep the dock secured and out of the way (mounting accessories sold separately: SSPMSUDWM, DOCK-NUC-VESA-MOUNT, SSPMSVESA)
- <b>The IT Pro's Choice</b>: Our docking stations are rigorously tested in our Innovation Lab to ensure enterprise-grade reliability and cross-platform compatibility; Built to support large-scale deployments, Windows 11 upgrades, and the shift to AI-enabled PCs
Specifications
| Compliance certificates | Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
| HD type | 4K Ultra HD |
| Product colour | Grey |
| Power plug type | Type M |
| Connectivity technology | Wired |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 395 mm |
| Master (outer) case height | 300 mm |
| Data transfer rate | 10 Gbit/s |
| Number of displays supported | 3 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Wake-on-LAN ready | Yes |
| Full duplex | Yes |
| UASP support | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Chipset | DisplayLink - DL6950, Genesys Logic - GL5911, Genesys Logic - GL5910, Genesys Logic - GL3590, Realtek - RTL8156B |
| Input current | 2.5 A |
| Maximum digital resolution | 3840 x 2160 pixels |
| On/off switch | Yes |
| AC adapter included | Yes |
| Cables included | AC, USB Type-C |
| Package width | 169 mm |
| Package depth | 251 mm |
| Package height | 90 mm |
| Package weight | 1.2 kg |
| User guide | Yes |
| Combo headphone/mic port | Yes |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 210 W |
| USB Power Delivery (USB PD) | Yes |
| Power source type | DC |
| Output voltage | 20 V |
| Output current | 10.5 A |
| DC-in jack | Yes |
| Compatible power plug types | EU, UK |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington, Nano, Wedge |
| Card reader integrated | No |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp |
| Mac operating systems supported | Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Other operating systems supported | ChromeOS |
| Linux operating systems supported | Ubuntu 18.04 LTS, Ubuntu 20.04 LTS, Ubuntu 22.04, Ubuntu 24.04 LTS |
Specifications provided by the manufacturer via Icecat.
