StarTech.com 4 Port USB
£103.99
- £103.99 ex VAT
Add 4 DIN Rail-mountable RS232 Serial ports to any system through USB

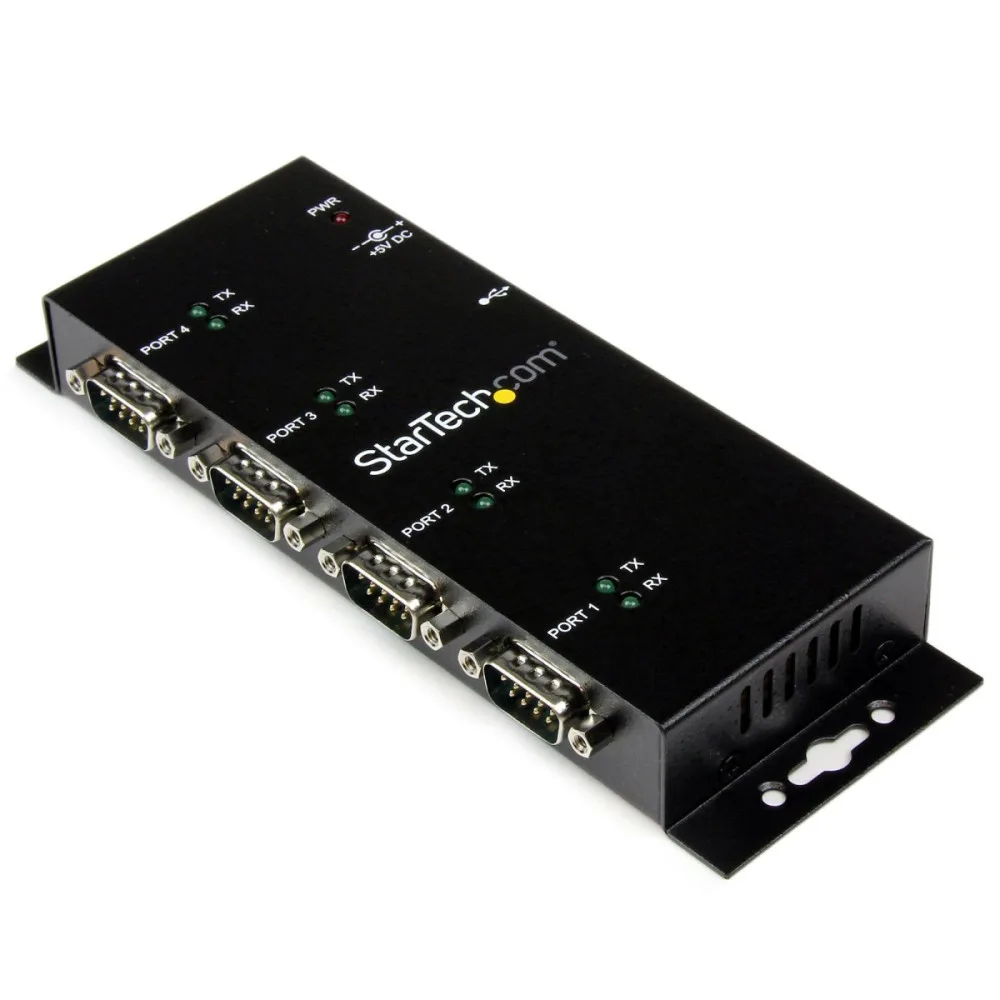

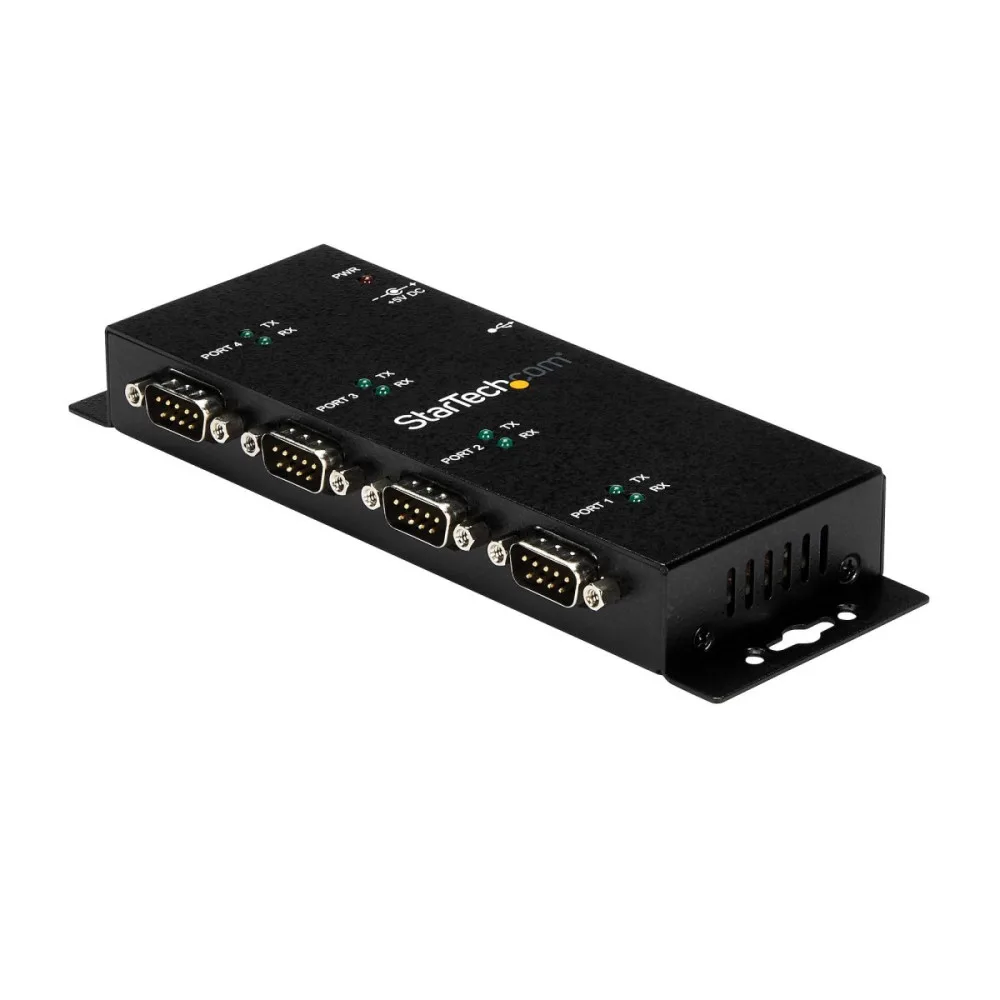

The ICUSB2324I 4-Port Industrial USB to Serial Hub with DIN Rail Clips converts a single USB port into four RS232 serial ports, enabling you to connect to, monitor and control your serial devices.

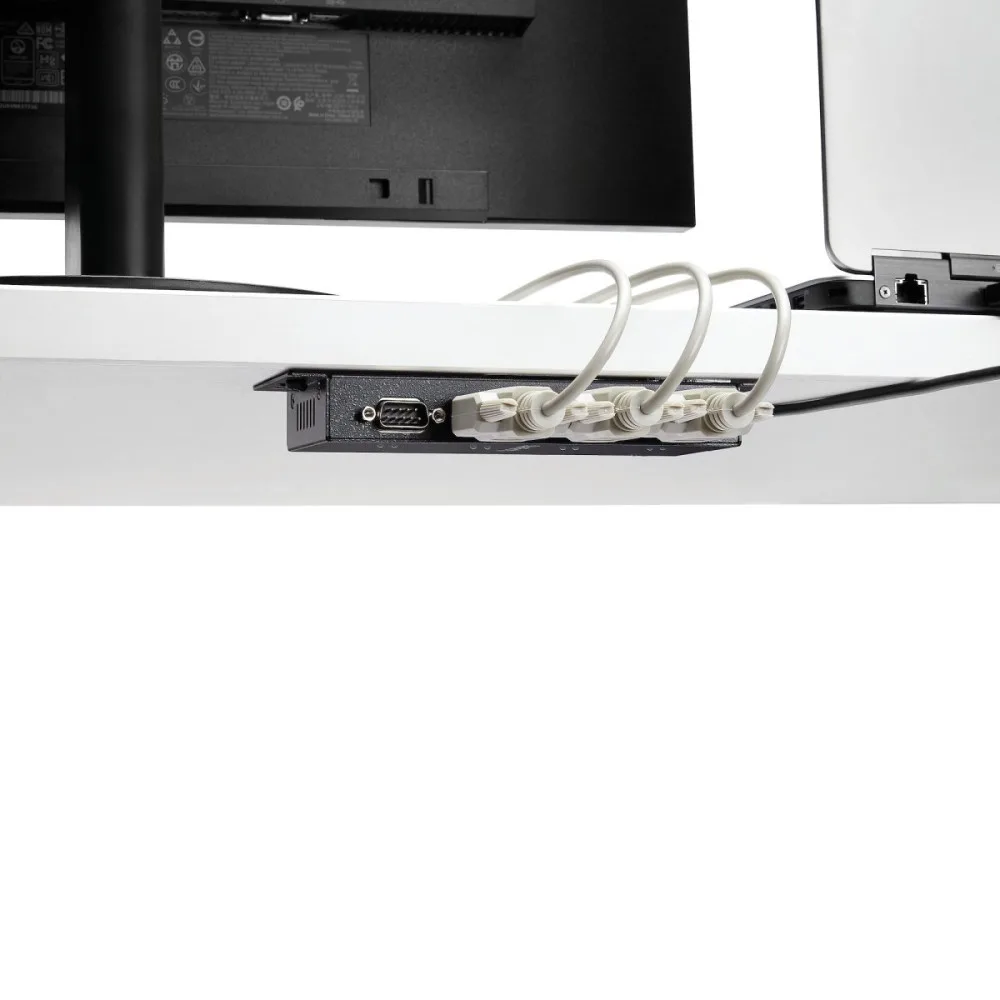

Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
- 4-port USB to RS232 serial adapter
- Rugged metal construction
- Wall-mountable, with included DIN Rail clips
- COM retention: COM Port assignments maintained across reboot
- Baud Rate up to 921.6 Kbps
- Powered by an available USB port - no external power adapter required
Specifications
| Compliance certificates | CE, RoHS |
| LED indicators | Activity |
| Housing material | Steel |
| Product colour | Black |
| Mean time between failures (MTBF) | 282713.5 h |
| Power plug type | Type M |
| Baud rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Data bits | 7, 8 |
| Stop bits | 1, 2 |
| Harmonized System (HS) code | 84719000 |
| Products per master (outer) case | 25 pc(s) |
| Master (outer) case width | 430 mm |
| Master (outer) case length | 510 mm |
| Master (outer) case height | 270 mm |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Chipset | FTDI - FT4232HL |
| RS-232 ports | 4 |
| Ports quantity | 4 |
| Cables included | USB |
| Drivers included | Yes |
| Manual | Yes |
| DIN rail kit included | Yes |
| Package width | 150 mm |
| Package depth | 215 mm |
| Package height | 50 mm |
| Package weight | 518 g |
| Quantity per pack | 1 pc(s) |
| Hub interfaces | Serial |
| Parity bit | Even, Mark, No, Odd, Space |
| Host interface | USB 2.0 Type-B |
| Power source type | USB |
| DC-in jack | Yes |
| Card reader integrated | No |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Other operating systems supported | Windows XP Embedded |
| Linux operating systems supported | Yes |
| Width | 59 mm |
| Depth | 1788 mm |
| Height | 23 mm |
| Weight | 300 g |
| Sustainability compliance | Yes |
Specifications provided by the manufacturer via Icecat.
