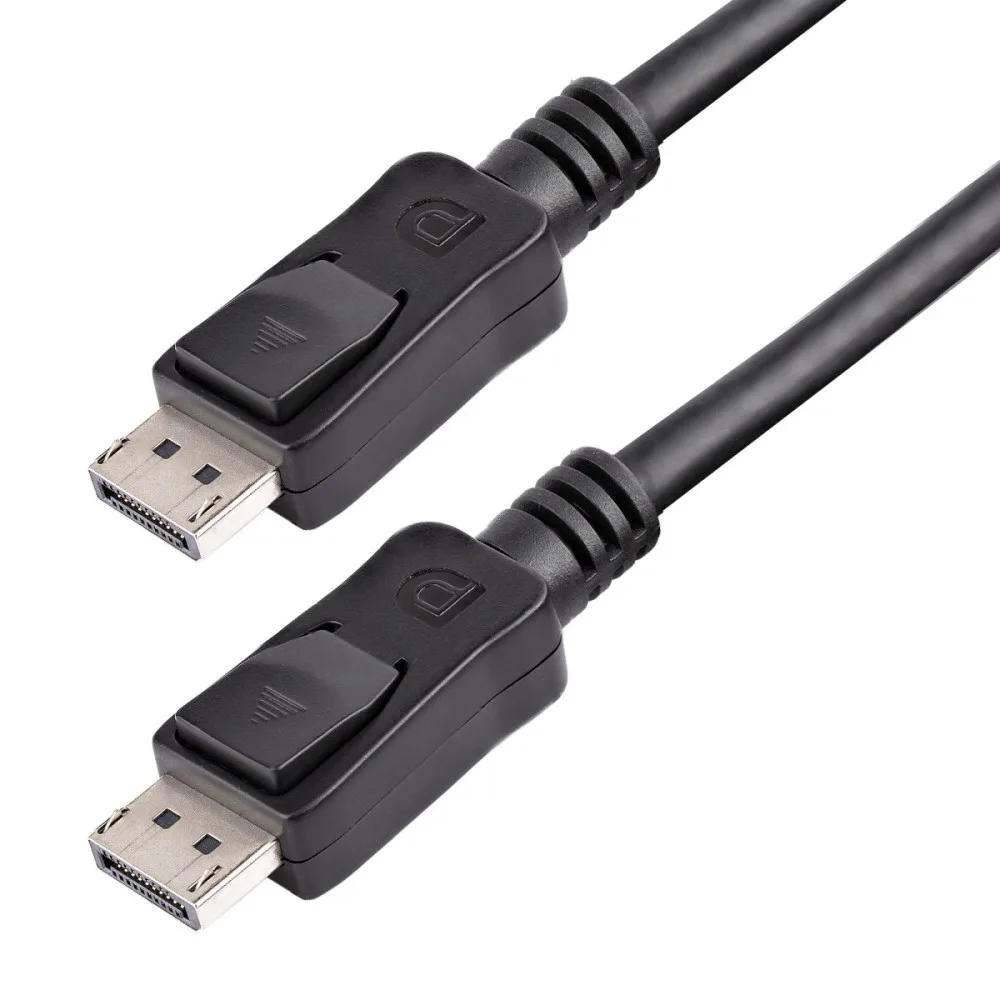

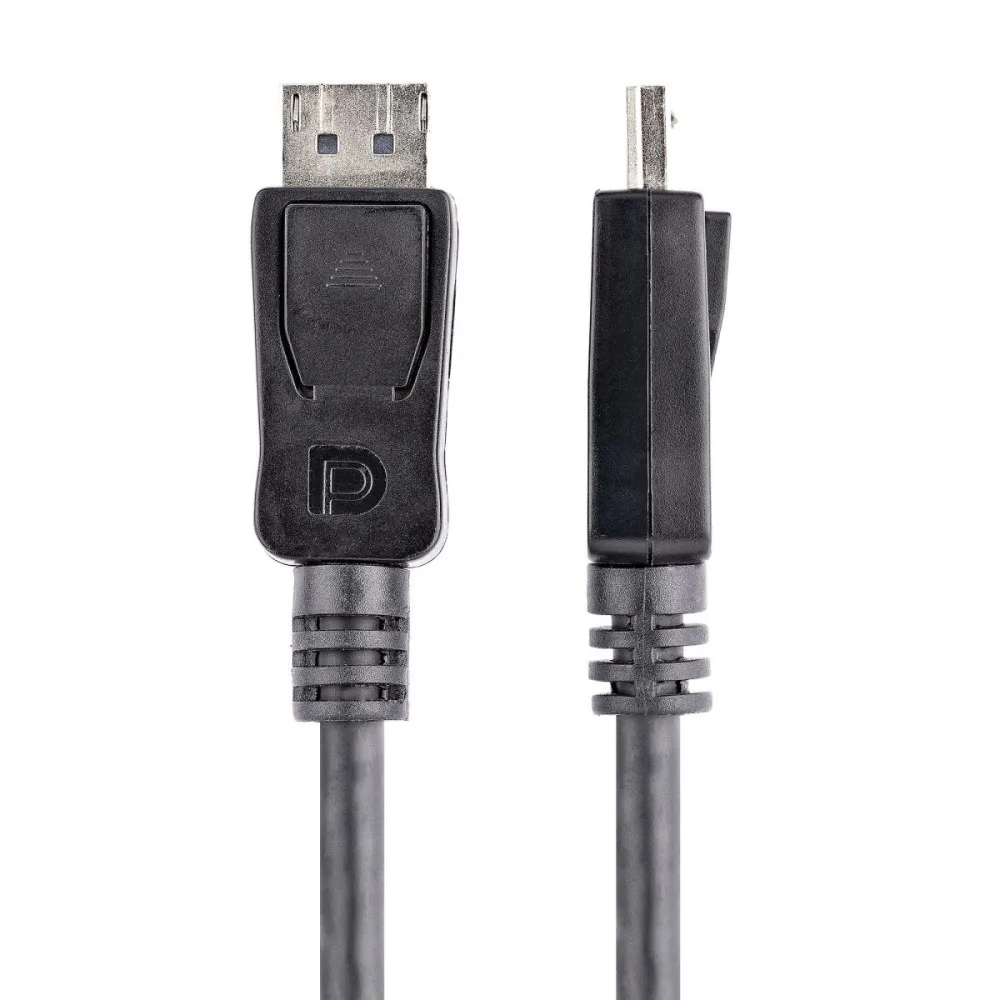

StarTech.com 6 ft Displayport Video Cable
£12.99
- £12.99 ex VAT
Create high-resolution 4K x 2K connections with HBR2 support between your DisplayPort equipped devices
This DisplayPort cable provides a secure connection between your DisplayPort equipped devices and is capable of providing higher performance than either HDMI® or dual-link DVI.
The DP cable supports high resolutions of up to 4K x 2K (4096 x 2160, 60Hz) with a maximum HBR2 bandwidth of 21.6Gbps, as well as optional audio support. The cable also supports Multi-Stream Transport (MST) for daisy chaining multiple monitors.
The 6-foot cable is DisplayPort (VESA) certified to support DP 1.2 specifications and ensure a high-quality, reliable connection for all of your DisplayPort devices.
The DISPLPORT6L is backed by a StarTech.com lifetime warranty for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
- HIGH PERFORMANCE CABLE: This 6ft VESA Certified DisplayPort v1.2 cable supports 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
- RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief & jacket prevents fraying/damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding; Latching DP connectors prevent accidental disconnection
- QUALITY CONSTRUCTION: 28AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1
- APPLICATIONS: Ideal for home/offices/boardrooms/conference rooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100/5100 or R5000 graphic cards; Use with 1080p/UHD/4K monitors, projector or large display
- SPECS: 6 foot (1.8 m) / Black / DisplayPort v1.2 / DP Latching Male to Male / 28 AWG / PVC cable jacket, ABS connector shell / Shield: Al-Mylar foil with Braid / Protocols: HBR 2, MST, GTC / Lifetime Warranty
Specifications
| Specifications | |
|---|---|
| Compliance certificates | CE, RoHS |
| Maximum refresh rate | 120 Hz |
| Cable length | 1.8 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| Bandwidth | 21600 MB/s |
| Jacket material | Polyvinyl chloride (PVC) |
| Magnetically shielded | Yes |
| Cable shielding | Aluminum mylar foil |
| AWG wire size | 28 |
| Multi-Stream Transport (MST) | Yes |
| Number of conductors | 19 |
| Cable rating | CMG (CM) |
| Latching connectors | Yes |
| Harmonized System (HS) code | 84733080 |
| Products per master (outer) case | 50 pc(s) |
| Master (outer) case width | 521 mm |
| Master (outer) case length | 338 mm |
| Master (outer) case height | 223 mm |
| Package width | 198 mm |
| Package depth | 148 mm |
| Package height | 29 mm |
| Package weight | 132 g |
| Quantity per pack | 1 pc(s) |
| Plug and Play | Yes |
| HDCP | Yes |
| DisplayPort version | 1.2 |
| DisplayPort Content Protection (DPCP) | Yes |
| Maximum resolution | 3840 x 2400 pixels |
| Supported graphics resolutions | 2560 x 1600 (WQXGA), 3840 x 2400 |
| Weight | 300 g |
| Cable diameter | 6.5 mm |
Specifications provided by the manufacturer via Icecat.
