USB to Serial Cable | 921.6 Kbps | For Servers/Printers/Barcode Readers/AV | Prolific Chipset | Windows/Mac/Linux

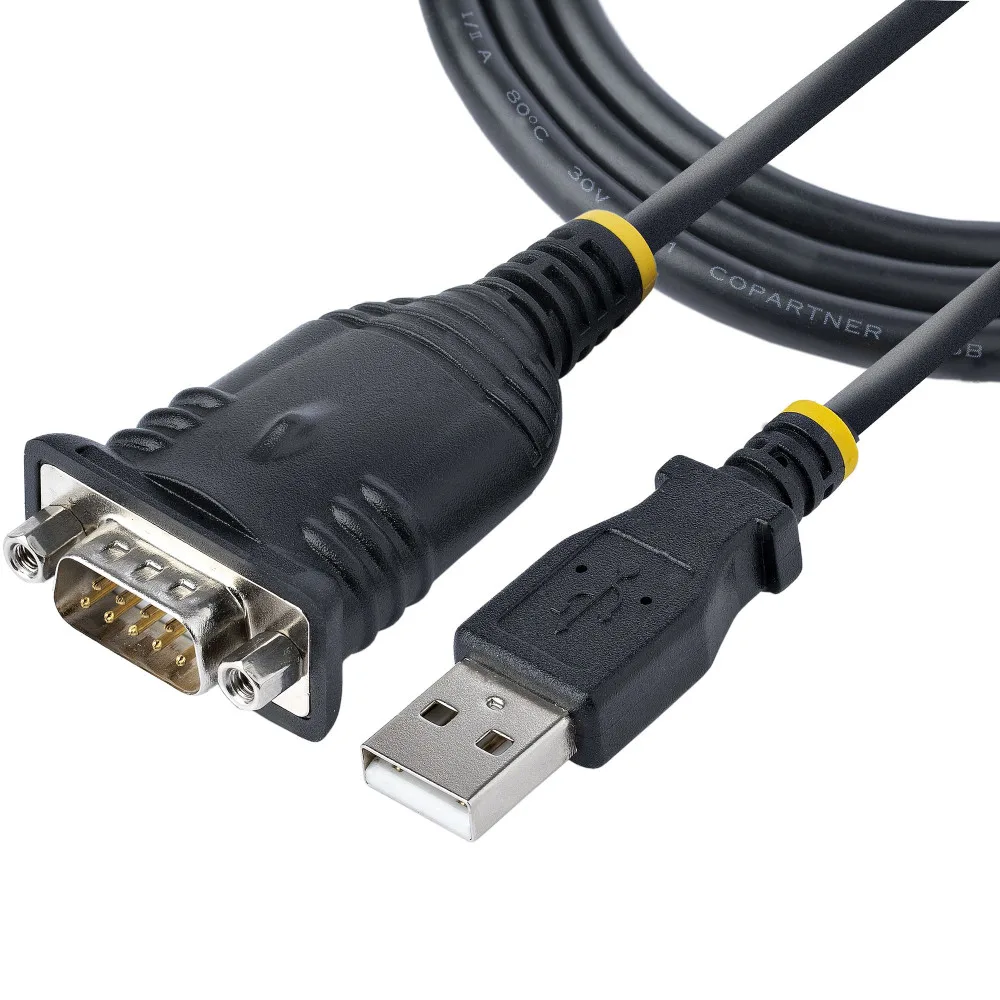

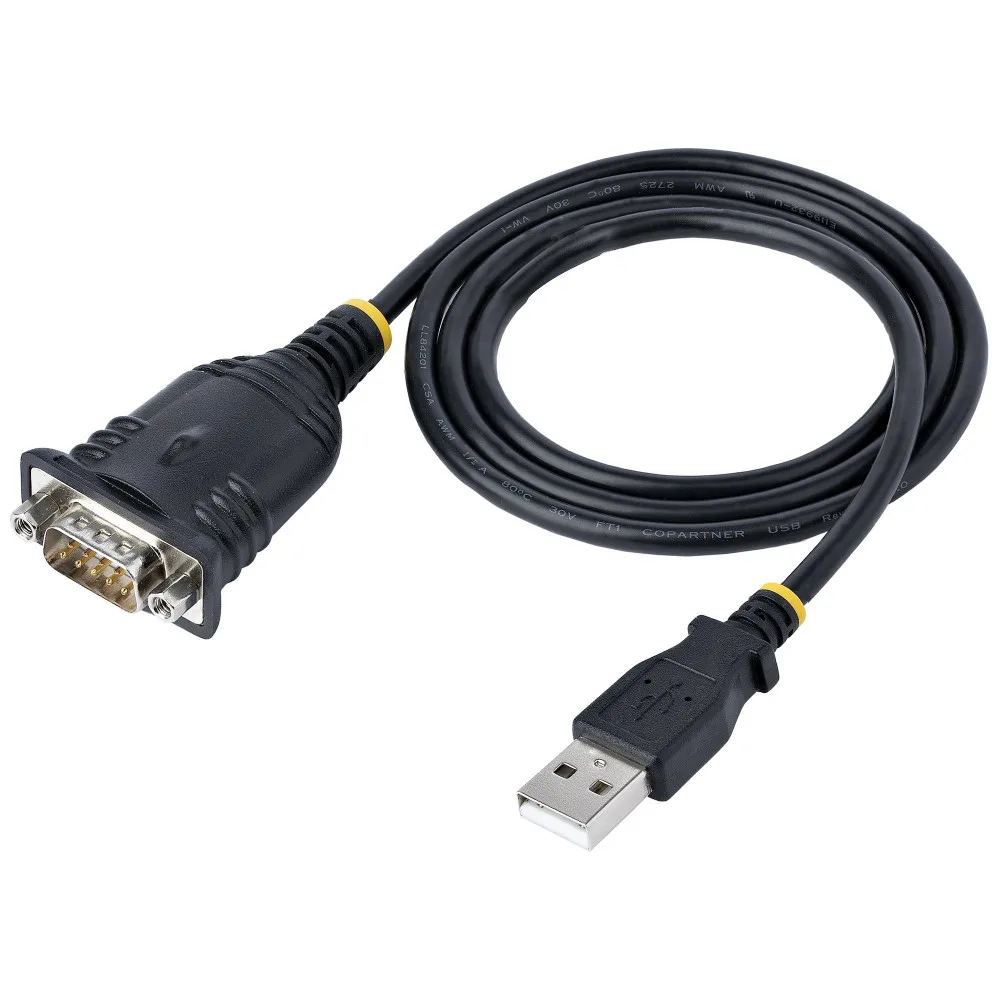

The 1P3FP-USB-SERIAL 1 Port USB to Serial Adapter lets you add an RS-232 DB9 serial COM port to your laptop or desktop computer, allowing it to control and communicate with a serial peripheral device.
Accessible Connectivity
The USB to RS232 cable is a convenient connectivity solution that bridges the gap between current and legacy technologies. The small footprint, data rate of up to 921.6 kbps, and 3 ft (0.91 m) cable length makes it the ideal solution for the IT industry, point of sales (POS), industrial applications, AV, and office setups.
Connect with Ease
This adapter cable allows you to add an RS-232 DB9 COM port by connecting it to the commonly found USB Type-A port, located on your host device. This USB 2.0 converter is compatible with other USB revisions. It supports Windows, macOS, and Linux (including the latest versions) for maximum compatibility.
1P3FP-USB-SERIAL is backed for 3-years by StarTech.com, including free lifetime 24/5 multilingual technical assistance.
Specifications
Ports & interfaces| Connector 1 | DB-9 |
| Connector 2 | USB Type-A |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| USB version | 2.0 |
| Cable length | 0.91 m |
Performance| Product colour | Black |
| Chipset | Prolific - PL2303RA |
| Data bits | 5, 6, 7, 8 |
| Stop bits | 1, 1.5, 2 |
| Flow Control type | DTR/DSR, No, RTS/CTS, XON/XOFF |
| Baud rate | 921.6 Kbit/s |
| Parity bit | Even, Mark, No, Odd, Space |
| FIFO (First In, First Out) | 512 B |
| Compatible operating systems | Windows 7, 8.1, 10, 11
Windows Server 2016, 2019
macOS 10.11 to 10.15, 11.0, 12.0, Mac OS X 13.0 Ventura
Linux 4.15.x LTS Versions Only
Chrome OS |
Operational conditions| Operating temperature (T-T) | 0 - 80 °C |
| Storage temperature (T-T) | -20 - 100 °C |
| Relative humidity | 20 - 80% |
Certificates| Compliance certificates | CE, RoHS |
Weight & dimensions| Width | 45 mm |
| Depth | 34 mm |
| Height | 16 mm |
| Weight | 39.2 g |
Packaging content| Manual | Yes |
Packaging data| Package width | 199 mm |
| Package depth | 133 mm |
| Package height | 23 mm |
| Package weight | 102.2 g |
Logistics data| Products per master (outer) case | 100 pc(s) |
| Master (outer) case width | 578 mm |
| Master (outer) case length | 363 mm |
| Master (outer) case height | 304 mm |
Specifications provided by the manufacturer via Icecat.
