TP-Link
TP-Link MC1400 Rackmount Chassis
In stock (1 left) - ready to ship
Estimated delivery between Thursday 22 and Monday 26 OctoberOnly a few left at our supplier - if they sell out first, we'll email you the same day
£208.99
- £208.99 ex VAT

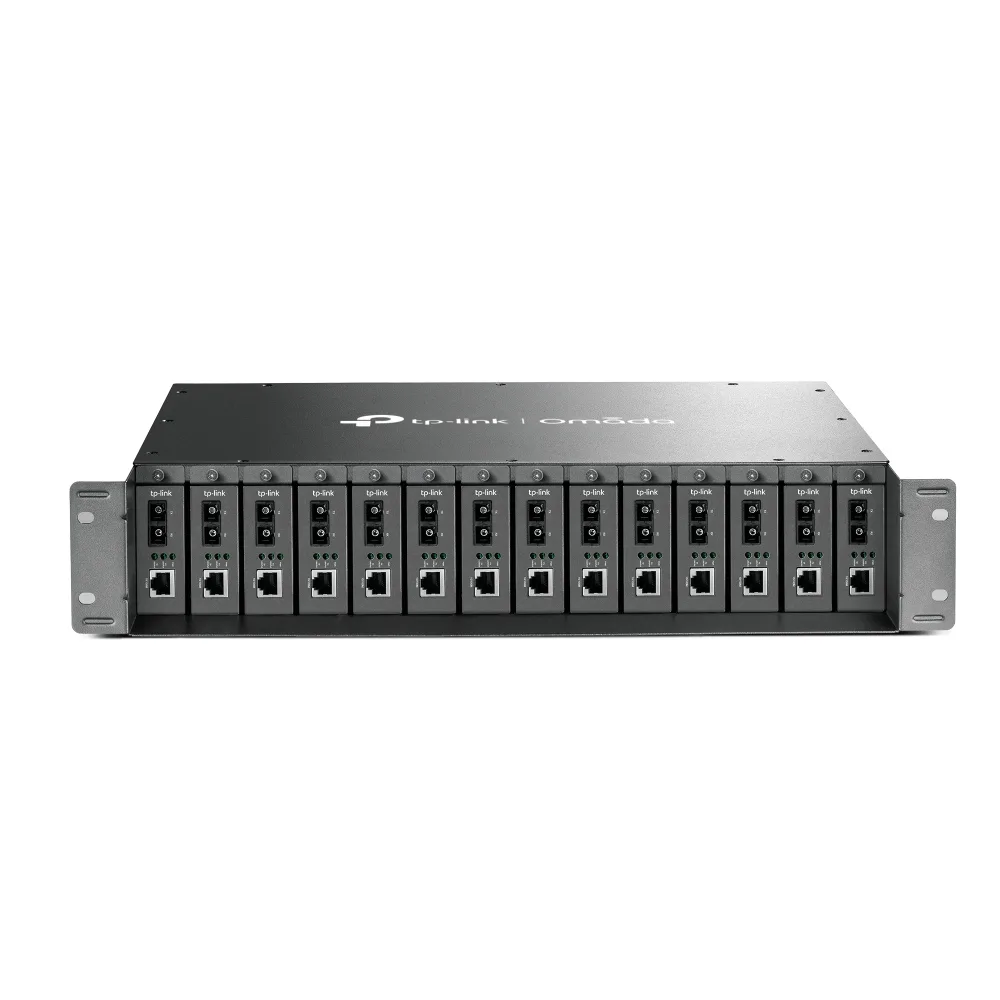

The Omada 14-Slot Rackmount Chassis MC1400 is specially designed to accommodate 14 Omada Media Converters for central power supply, saving space and power cables. Continuous operation is important to fiber communication, so the chassis is equipped with an optional redundant power supply and Hot-Swapping function which allows installing/removing the converter without powering off the chassis. Moreover, to stabilize the performance and extend the lifetime, two cooling fans are installed inside. Together with Omada MC series Gigabit / Fast Ethernet media converters, MC1400 is the ideal solution for your media conversion network.
- 14 bays to house up to 14 media converters
- 9 VDC / 0.6 A power output
- Optional redundant power supply to ensure non-stop reliable operation
- Hot-swappable
- Mounted two cooling fans for better ventilation
- 2U 19-inch rack-mountable
Specifications
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Rack capacity | 2U |
| Number of slots | 14 |
| Rack mounting | Yes |
| Product colour | Black |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 / 60 Hz |
| Width | 482 mm |
| Depth | 358 mm |
| Height | 86 mm |
Specifications provided by the manufacturer via Icecat.
