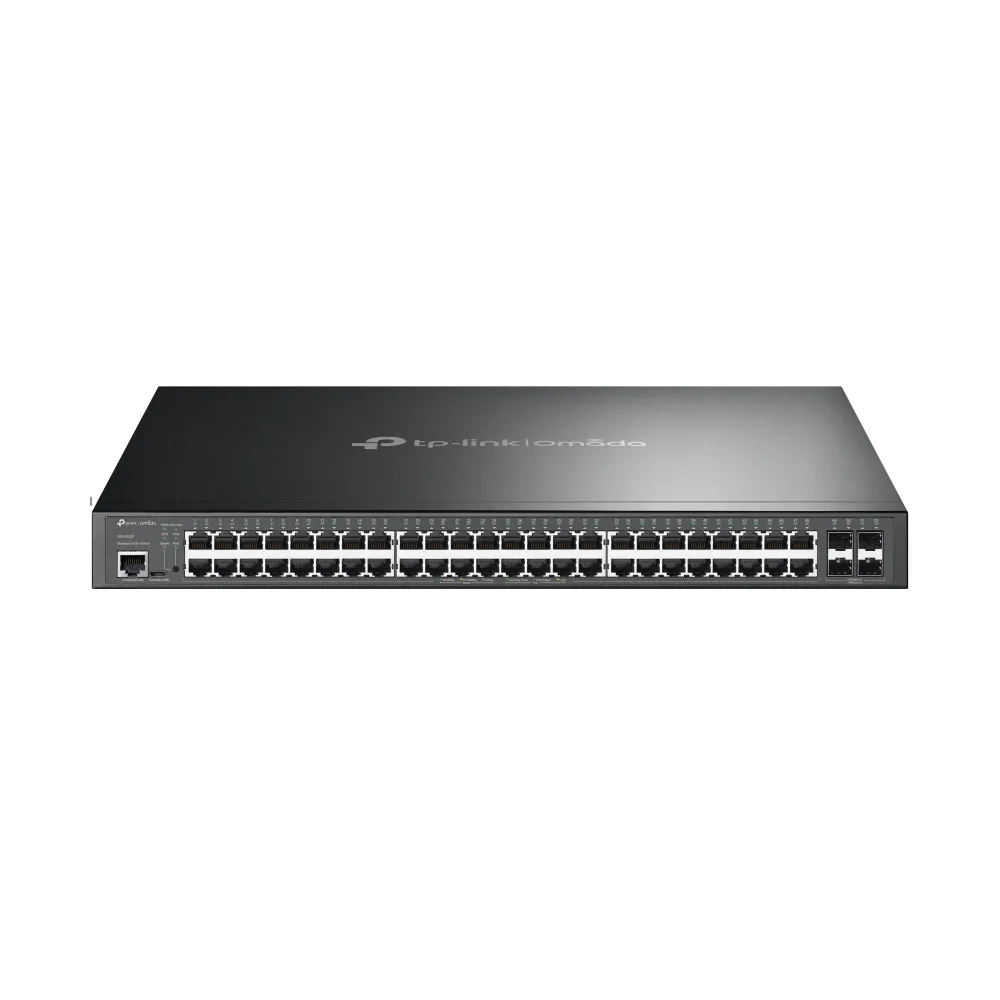

TP-Link SG3452P 52-PORT Switch
£495.99
- £495.99 ex VAT
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.
- 48× Gigabit 802.3af/at PoE+ ports and 4× Gigabit SFP slots
- 384 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rackmountable design
Specifications
| MAC address table | 16000 entries |
| Packet buffer memory | 12 MB |
| Forwarding rate | 77.38 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Switching capacity | 104 Gbit/s |
| Store-and-forward | Yes |
| Number of static routes | 48 |
| Form factor | 1U |
| LED indicators | Yes |
| Reset button | Yes |
| Number of fans | 3 fan(s) |
| Rack mounting | Yes |
| Product colour | Black |
| Quality of Service (QoS) support | Yes |
| Power connector | AC-in jack |
| Heat dissipation | 1584.08 BTU/h |
| Rate limiting | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Switch layer | L2/L3 |
| MIB support | Yes |
| ARP inspection | Yes |
| Cloud-managed | Yes |
| Multicast support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| 10G support | No |
| Port mirroring | Yes |
| VLAN support | Yes |
| Static route | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4000 |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| IP routing | Yes |
| Active link detection | Yes |
| Policy-based routing | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Quick start guide | Yes |
| Cables included | AC |
| Manual | Yes |
| Package type | Box |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45/micro-USB |
| SFP module slots quantity | 4 |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 464.2 W |
| Power source | AC |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 384 W |
| Power supply included | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Password protection | Yes |
| Loop protection | Yes |
| System event log | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| SSH/SSL support | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| BPDU filtering/protection | Yes |
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x |
| IGMP snooping | Yes |
Specifications provided by the manufacturer via Icecat.
