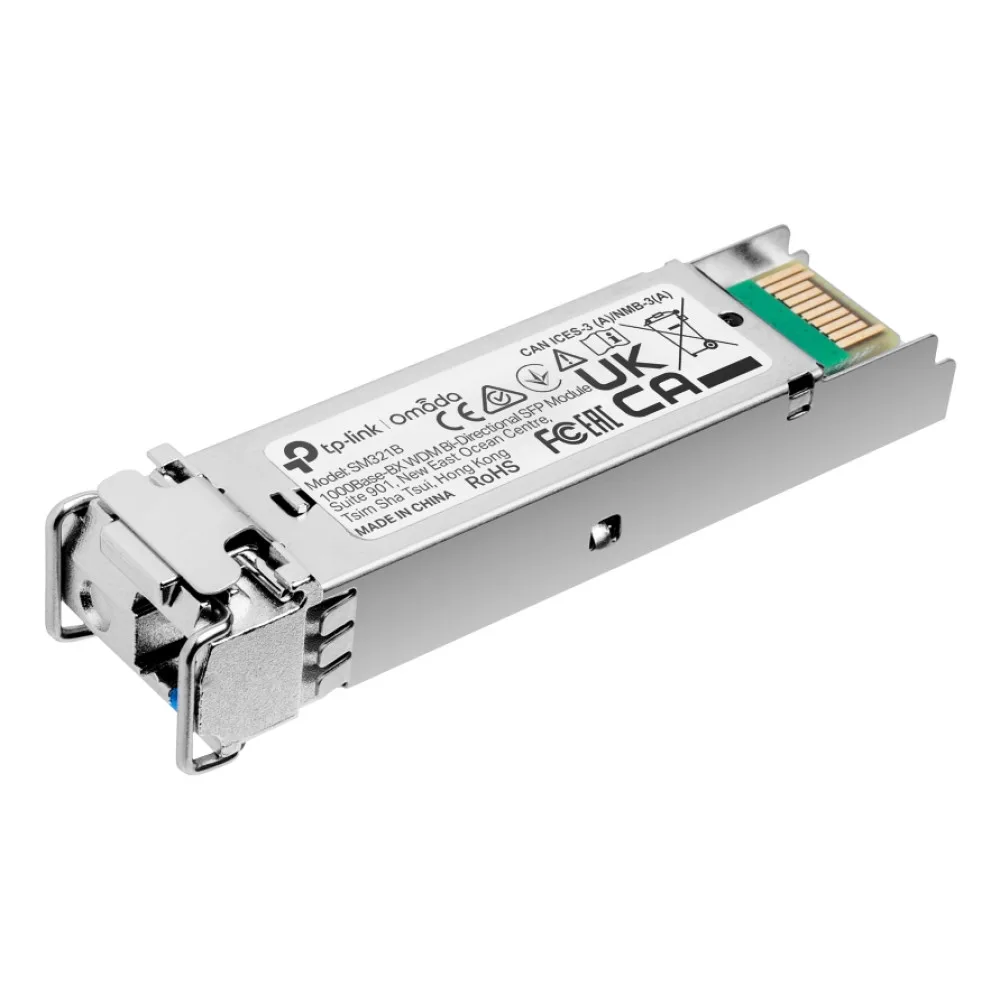

TP-Link SM321B SFP Module
In stock - ready to ship
Estimated delivery Thursday 22 OctoberDispatched within 24 hours by DPD
£19.99
- £19.99 ex VAT
TP-Link´s SM321B (TL-SM321B) adopts the latest standard 1000Base-BX, transmitting over a single strand of fiber with one different wavelength going in each direction. You can extend the network distance up to 20Km with TP-Link´s routers, switches and media converters to provide high speed and stability.
- WDM Bi-Directional SFP Module
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
Specifications
| Certification | FCC, CE |
| Product colour | Silver |
| Hot-swap | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Input voltage | 3.3 V |
| Quantity per pack | 1 pc(s) |
| User guide | Yes |
| Maximum transfer distance | 20000 m |
| SFP transceiver type | Fiber optic |
| Single-mode fiber (SMF) supported | Yes |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Tx wavelength (max) | 1310 nm |
| Rx wavelength (max) | 1550 nm |
| Interface type | SFP |
| Maximum data transfer rate | 1250 Mbit/s |
| Width | 55.4 mm |
| Depth | 14.6 mm |
| Height | 12.9 mm |
Specifications provided by the manufacturer via Icecat.
