TP-Link
TP-Link SM6110-LR
In stock - ready to ship
Estimated delivery Tuesday 29 SeptemberDispatched within 24 hours by DPD
£67.99
- £67.99 ex VAT

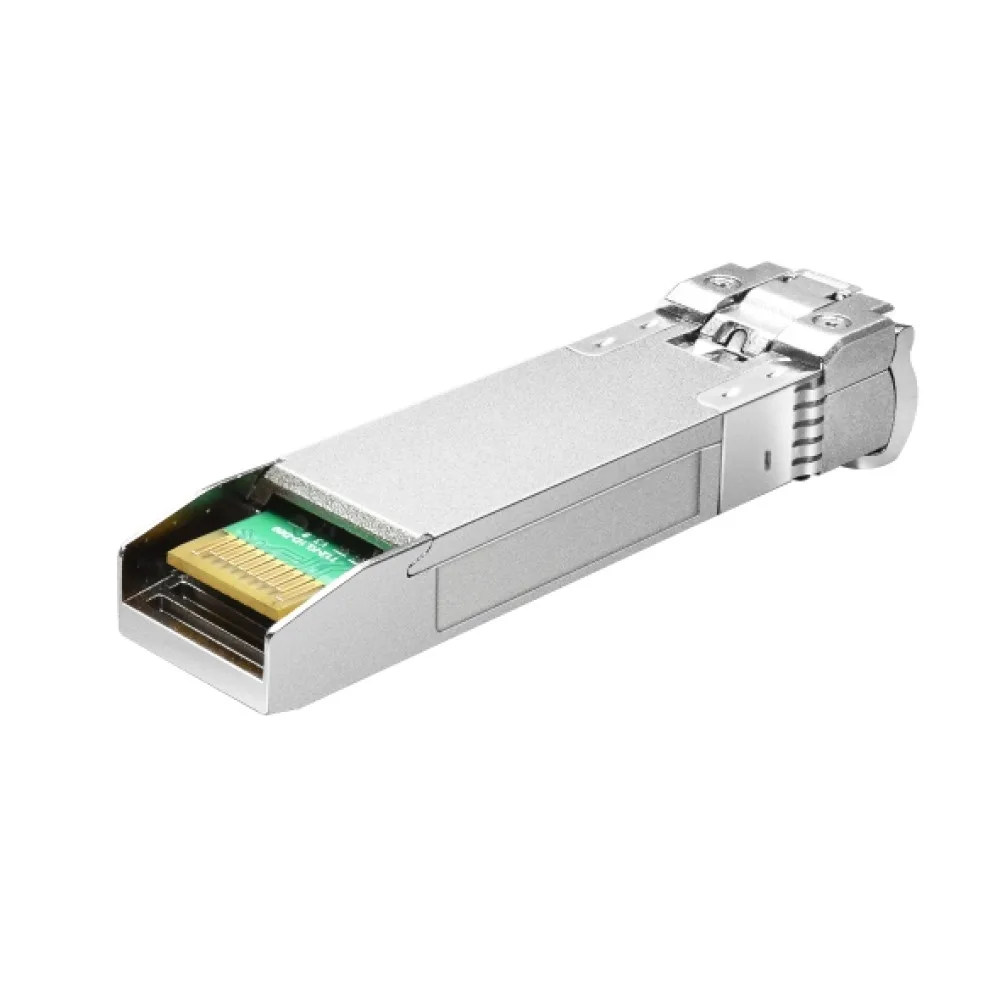

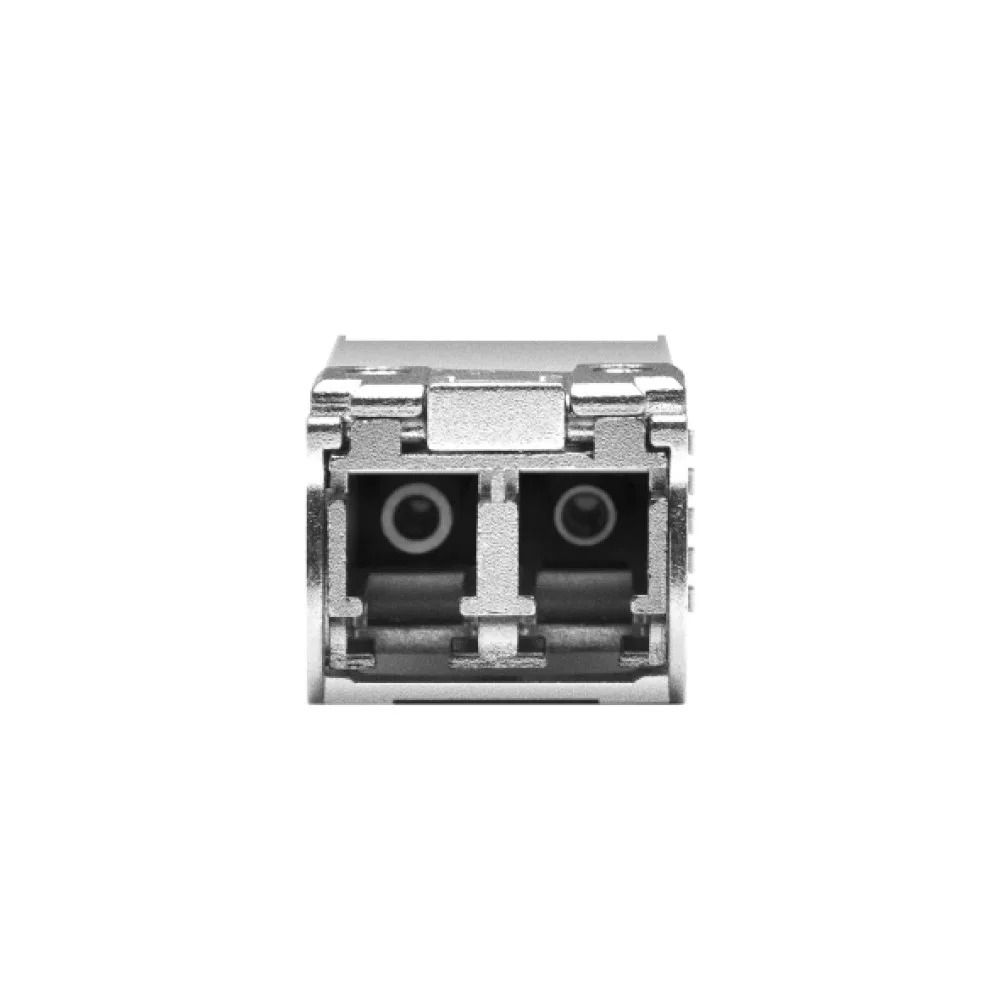

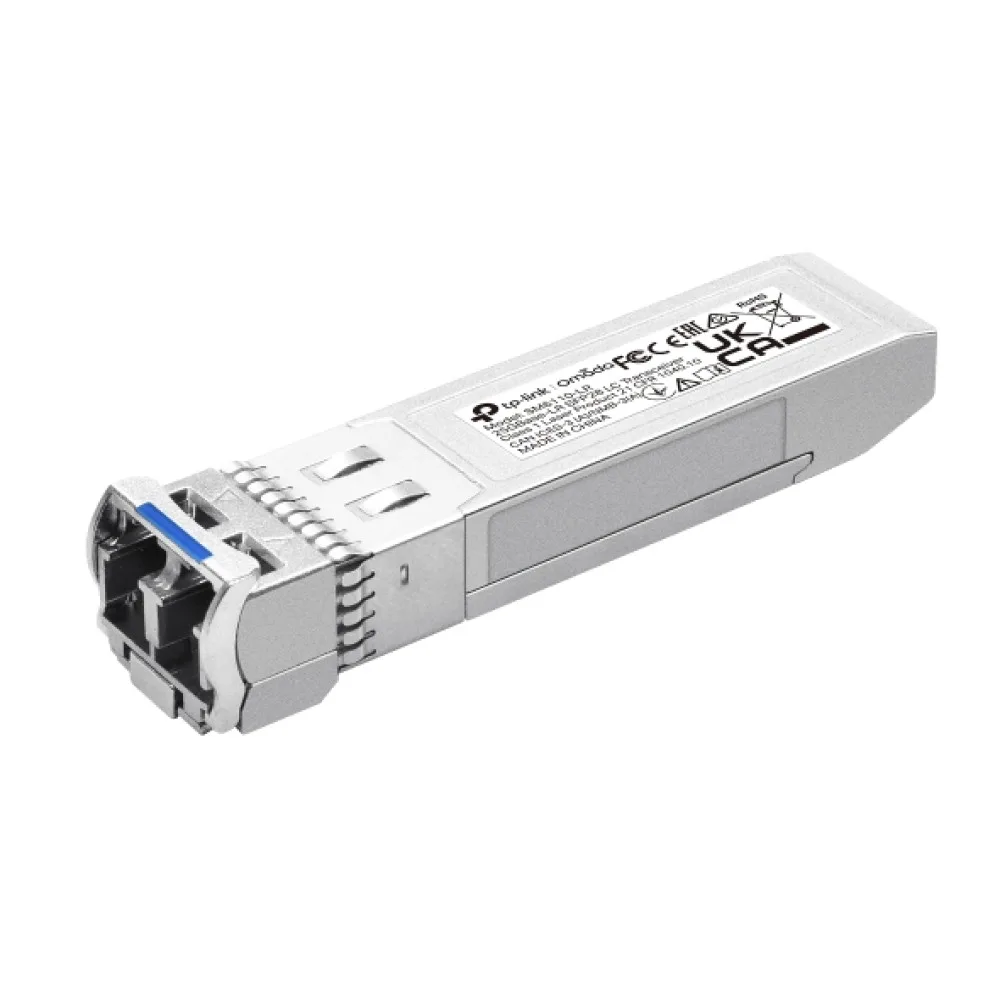

The SM6110-LR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-LR high performance 1310 nm single-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
- Single-mode SFP+/SFP28 LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Low Power Consumption no more than 1.2 W
- Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
- Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X
Specifications
| Product colour | Grey |
| Hot-swap | Yes |
| Hot-Plug support | Yes |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Input voltage | 3.3 V |
| Quantity per pack | 1 pc(s) |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| SFP transceiver type | Fiber optic |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Interface type | SFP+ |
| Maximum data transfer rate | 25780 Mbit/s |
| Width | 57 mm |
| Depth | 14 mm |
| Height | 12 mm |
Specifications provided by the manufacturer via Icecat.
