TP-Link

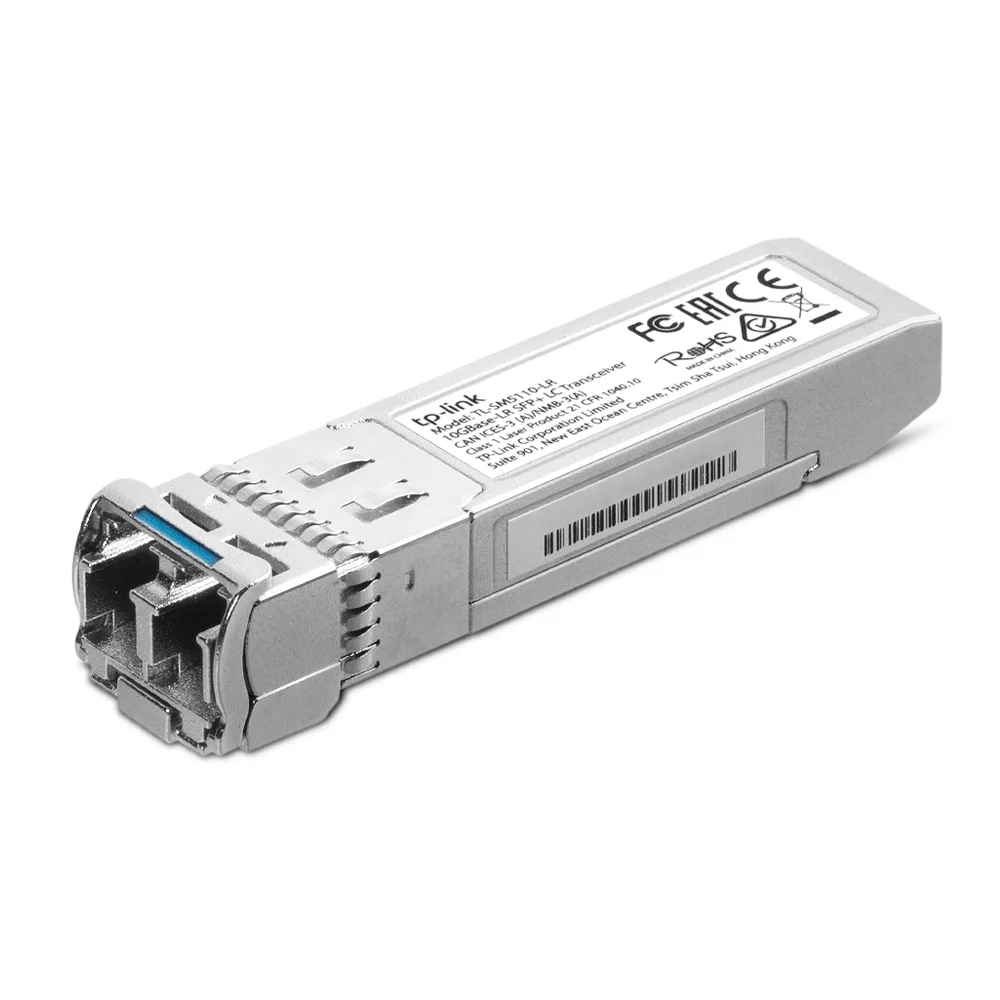

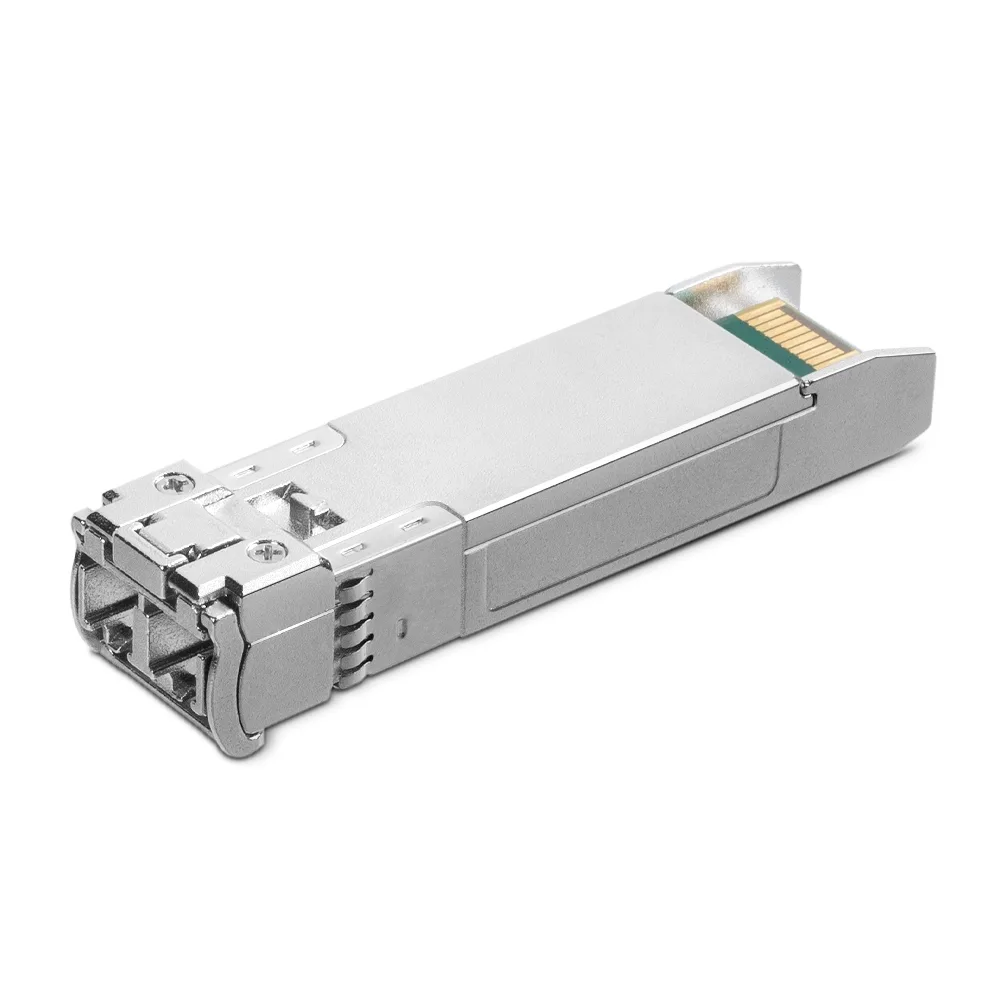

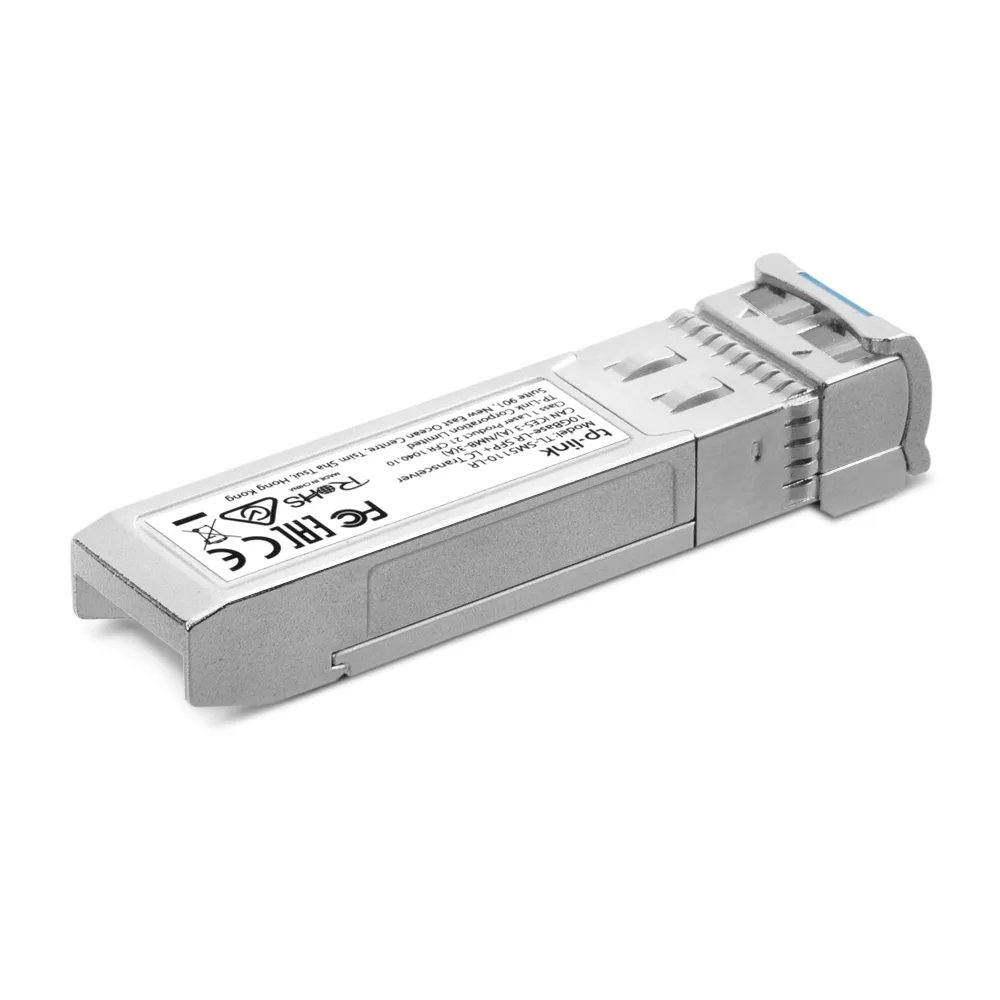

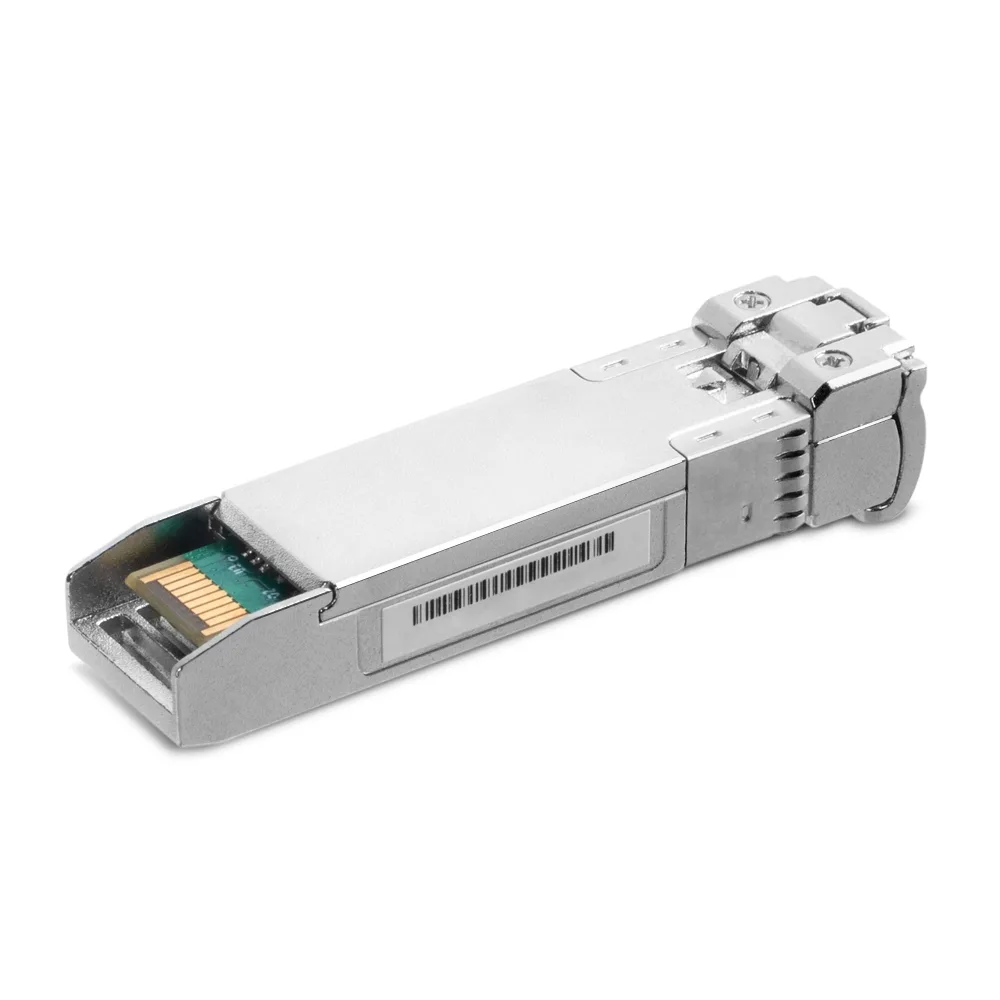

TP-Link TL-SM5110-LR LC Transceiver
In stock (1 left) - ready to ship
Estimated delivery Tuesday 29 SeptemberDispatched within 24 hours by DPD
£37.99
- £37.99 ex VAT
The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
- Single-mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
- Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more
Specifications
| Certification | FCC, CE |
| Brand compatibility | TP-Link |
| Hot-swap | Yes |
| Hot-Plug support | Yes |
| Harmonized System (HS) code | 85369010 |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Input voltage | 3.3 V |
| Package width | 81.5 mm |
| Package depth | 122.5 mm |
| Package height | 38.5 mm |
| Package weight | 60 g |
| Quantity per pack | 1 pc(s) |
| Compatible products | Switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more. |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| SFP transceiver type | Fiber optic |
| Single-mode fiber (SMF) supported | Yes |
| SFP transceiver standard | LR |
| Multi-mode fiber (MMF) supported | No |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Interface type | SFP+ |
| Maximum data transfer rate | 10000 Mbit/s |
| Fiber optic connector | LC |
| Width | 56.7 mm |
| Depth | 13.9 mm |
| Height | 10.3 mm |
| Networking standards | IEEE 802.3ae |
Specifications provided by the manufacturer via Icecat.
